Volvo 940 A/C Clutch Cycle Switch Guide for 1991-1995 Models
If your classic 940's A/C is blowing warm, this simple switch could be the reason why.
- First, rule out bad solder joints in the dash control unit, a very common Volvo 940 issue.
- You can test the switch by jumping its electrical connector with a paperclip to see if the compressor engages.
- Replacement is very DIY-friendly and does not require evacuating the A/C system because of a Schrader valve.
- Aftermarket brands like Four Seasons and Global Parts are reliable and cost-effective choices for this part.
Is Your Volvo 940's A/C Blowing Warm?
When the air conditioning in a 1991-1995 Volvo 940 stops working, many owners suspect a major failure. However, the problem can often be a simple, inexpensive part: the A/C clutch cycle switch. This switch acts as a guard for your A/C compressor. Before you assume the worst, it's worth checking this component.
A Common Volvo Problem to Check First
Before replacing any parts, be aware of a very common issue in these cars: bad solder joints inside the main climate control unit in the dashboard. If your A/C works intermittently or sometimes starts working after you hit a bump or tap on the dash, the problem is likely the control unit, not the switch. First, test for 12 volts at the switch's electrical connector with the A/C on. If you have no power, the problem is likely the control unit or a fuse.
Symptoms of a Failing A/C Cycle Switch
- A/C Blows Warm Air: The most common sign. The switch fails to send power to the compressor, so the cooling process never starts.
- Intermittent Cooling: The A/C works on and off without a clear reason. This suggests the switch is failing and sending unreliable signals.
- Compressor Clutch Doesn't Engage: You won't hear the typical 'click' from the engine bay when you turn on the A/C. The switch is preventing the compressor clutch from activating.
- Rapid Cycling: You might hear the A/C clutch clicking on and off very quickly. This can be caused by a faulty switch reading the pressure incorrectly.
Choosing the Right Aftermarket Part
For a vehicle like the 1991-1995 Volvo 940, finding new original equipment (OEM) parts is nearly impossible. Aftermarket parts are the go-to solution and are perfectly suitable for this repair. The technology of a pressure switch is simple and has been produced by aftermarket brands for decades.
Brand Quality Tiers:

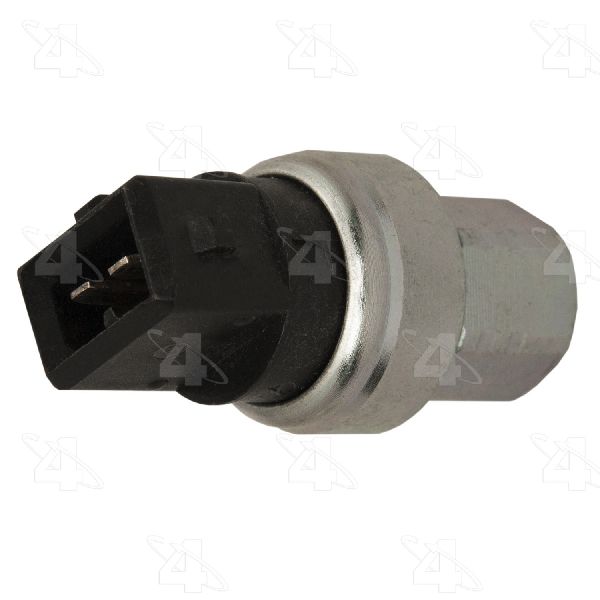

- Four Seasons: A widely known aftermarket A/C brand. They produce a huge range of parts and are a standard, reliable choice for components like switches. While some online reviews for their complex parts like compressors are mixed, a simple switch is a safe bet.

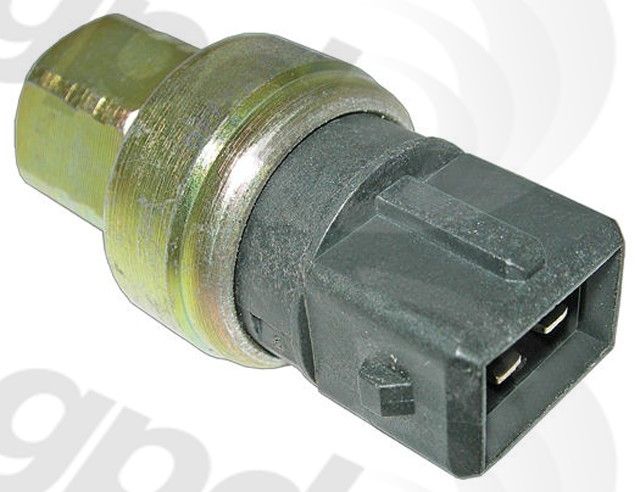

- Global Parts Distributors (GPD): Another major supplier of aftermarket A/C components. They are a reputable option and offer a wide catalog of parts. For a switch, their quality is comparable to other major aftermarket brands.
Pro Tip: For a simple part like this switch, the difference between available aftermarket brands is minimal. Choose based on price and availability. The key is proper diagnosis before you buy.
Replacement Cost
The cost to replace the A/C clutch cycle switch is low, especially if you do it yourself. The part itself is affordable, and labor is minimal.
| Part or Service | Estimated Cost |
|---|---|
| New Aftermarket Switch | $17 - $40 |
| Shop Labor | $50 - $200 |
| Total Professional Repair | $67 - $240 |
Frequently Asked Questions (FAQ)
Do I need to drain the refrigerant to replace this switch?
No. The switch is mounted on a Schrader valve, similar to the air valve on your tires. When you unscrew the old switch, the valve will seal itself. You may hear a brief hiss of escaping gas, which is normal. This makes it a very easy part to replace without needing special A/C service equipment.
How can I test my old A/C switch?
First, make sure the A/C system has refrigerant. If the system is empty, the switch will correctly keep the compressor off. If you know the system is charged, you can unplug the electrical connector from the switch and use a small wire or paperclip to connect the two terminals in the connector. If the A/C compressor clutch clicks on, you have confirmed the rest of the system works and the switch is likely bad (or the pressure is too low).
Where is the A/C clutch cycle switch located on my Volvo 940?
It is almost always located on the A/C accumulator (also called the receiver/drier). This is a metal cylinder, typically black or silver, located near the firewall on the passenger side of the engine bay. The switch is a small sensor screwed into it with a wire connector on top.
Are there any recalls or TSBs for this part?
No, there are no official recalls or Technical Service Bulletins (TSBs) from Volvo or the NHTSA for the A/C clutch cycle switch on the 1991-1995 Volvo 940.
Technical Specifications
OEM Part Numbers: 1343216 6848532 1259519 6848533
Typically a 2-pin, low-pressure switch mounted on the A/C accumulator/drier.
