Direct Ignition Coil Guide for the 1991-1996 BMW 525i (E34)
Keep your M50 engine running smoothly by understanding ignition coil failure and choosing the right replacement.
- For the 1991-1996 525i, you need six individual 'coil-on-plug' style ignition coils for the M50 engine.
- Symptoms almost always include a rough idle, engine misfires, and a check engine light.
- Replacement is a very simple DIY job requiring only basic tools, like a 10mm socket.
- For best results and reliability, replace all six coils at once using an OEM-quality brand like Bosch or a reputable alternative like Bremi.
Is Your 525i Ignition Coil Failing?
Ignition coils are a common part to fail on older BMWs as they age from engine heat and vibration. When a coil starts to go bad, it can't deliver the consistent, powerful spark your engine needs to run properly. This leads to several noticeable problems. Ignoring these symptoms can lead to worse fuel economy, damage to expensive parts like your catalytic converter, or leave you stranded.
Key Symptoms of a Bad Ignition Coil:
- Engine Misfires & Rough Idle: This is the most common sign. Your car may shake, sputter, or jerk, especially when you're stopped at a light or trying to accelerate.
- Loss of Power: Your 525i might feel sluggish and have trouble getting up to speed because one or more cylinders isn't firing correctly.
- Check Engine Light: A misfire will almost always trigger the check engine light on your dashboard. A code reader will often show a code between P0300 and P0306, indicating which cylinder is misfiring.
- Worse Gas Mileage: When a cylinder misfires, unburnt fuel is wasted, causing your fuel economy to drop.
- Hard Starting: The engine may crank for a long time before it starts, or in cases of complete failure, it might not start at all.
Choosing the Right Aftermarket Ignition Coil
For the E34 525i, you have several good aftermarket options that can restore performance without the high cost of dealer parts. Not all brands are created equal, but even budget-friendly options are often sufficient for a daily driven car.
Aftermarket Brand Tiers
| Tier | Brands | Quality & Performance Assessment |
|---|---|---|

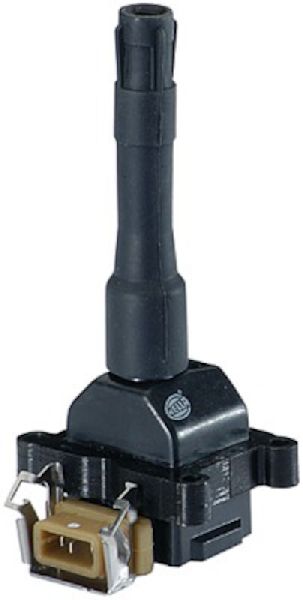

| Premium Aftermarket (OEM-Equivalent) | Bosch, Hella | Bosch was the original equipment supplier for many BMW ignition parts and is considered the gold standard for reliability and performance. Hella is another German OEM supplier with a strong reputation for quality parts. Choosing from this tier ensures performance and longevity similar to the original part. |

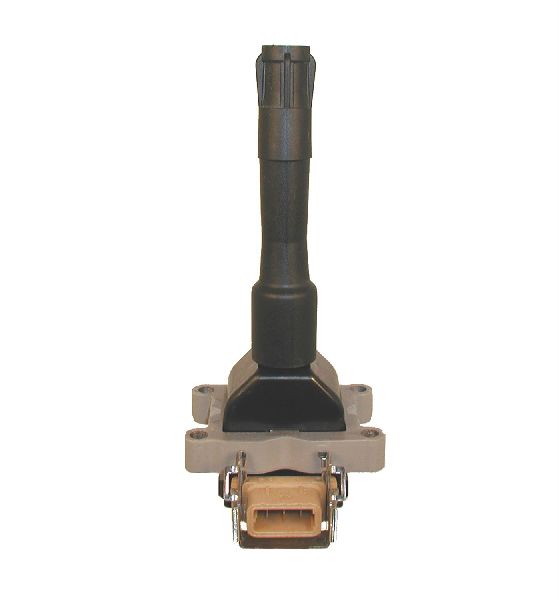

| Quality Aftermarket | Bremi | Bremi was an OEM supplier for some BMW models and is a well-regarded brand in the community. While some users on forums have reported occasional issues, they are generally considered a reliable and cost-effective alternative to Bosch. |
| Standard Aftermarket | Vemo | Vemo is a budget-friendly brand that can be a good choice if you need to fix a misfire on a tight budget. User reviews show they are effective at resolving issues, though long-term durability may not match premium brands. |
Pro Tip: While you can replace just the one failed coil, it is highly recommended to replace all six at the same time. Coils are exposed to the same conditions, so when one fails due to age, the others are likely not far behind. Replacing them as a set ensures reliability and smooth engine performance.
Known Issues, Recalls, or TSBs
Searches for official recalls and Technical Service Bulletins (TSBs) for the 1991-1996 525i's ignition coils did not show any active campaigns. However, it is worth noting that BMW issued a recall for Bremi brand ignition coils on later models with the M54 engine (produced from 2002-2004) due to internal insulation failure. This recall does not apply to the M50 engine in your E34, but it's useful context when choosing a brand.
Frequently Asked Questions (FAQ)
Is replacing the ignition coils on a 1991-1996 525i a difficult job?
No, this is a very easy DIY job that most owners can do in under an hour with basic tools. The coils are located directly on top of the engine under a plastic cover. Each coil is held in place by two 10mm nuts.
Do I need to replace all six coils at once?
It is strongly recommended. If one coil has failed from age, the others have endured the same heat and vibration and may fail soon. Replacing them all at once saves you from future headaches and ensures all cylinders have a consistent, strong spark.
What is the most common mistake when ordering this part?
The most critical mistake is confusing the 1991-1996 M50 engine with the earlier 1989-1990 M20 engine. The M50 engine requires six individual coil-on-plug units. The M20 engine uses a single, canister-style coil that works with a distributor. This guide is only for the 1991-1996 models.
Is there a difference between a cheap coil and an expensive one?
Yes. Premium brands like Bosch use higher-quality materials and windings, which provide a more reliable and consistent spark, especially under high load. While a standard coil will fix a misfire, an OEM-quality part is a better investment for long-term reliability.
Technical Specifications
OEM Part Numbers: 12131703359 12139066468 12137599218 12131748395

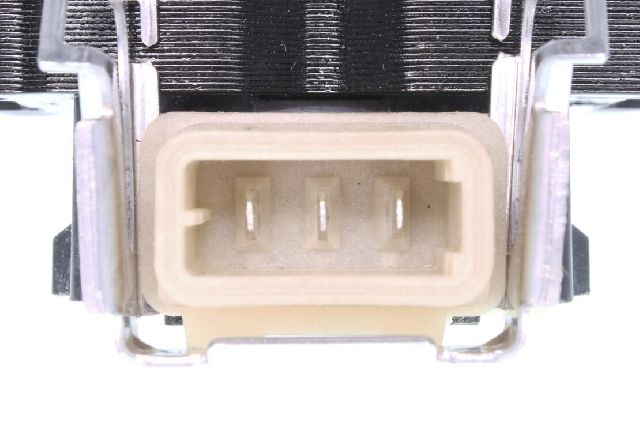

Voltage: 12V, Pin Count: 3, Type: Coil-on-Plug (Pencil Style).
