Ignition Control Module Guide for the 1991-1996 Buick Roadmaster
Troubleshooting stalling, misfiring, or a no-start condition in your Roadmaster? The ignition control module could be the culprit.
- Heat is the primary cause of failure; always apply new thermal paste, not dielectric grease, during installation.
- Symptoms often appear when the engine is hot, such as sudden stalling, and can leave you stranded.
- For 1994-1996 LT1 models, the ICM is on the driver's side cylinder head; for 1991-1993 models, it's inside the distributor.
- Choosing a quality brand like Delphi or Standard is recommended for this critical electronic part to ensure reliability.
Is Your Roadmaster's Ignition Module Failing?
The ignition control module (ICM) is a common failure point on many GM vehicles of this era, including the Buick Roadmaster. The primary enemy of the ICM is heat. Over thousands of heat cycles, the original module and the thermal paste that helps it dissipate heat can degrade, leading to failure. This failure often presents itself once the engine gets hot, but can also happen without warning.
Key Symptoms of a Bad Ignition Control Module
A failing ICM can cause a range of problems, from annoying to leaving you stranded. Look out for these common signs:
- No-Start Condition: The engine will crank over but will not start. This happens because the module is not telling the coil to create spark. This is a critical symptom. 🎬 Watch this Roadmaster diagnostic video to solve a warm no-start.
- Sudden Stalling: The engine may run fine and then suddenly shut off, especially after it has warmed up. It might restart after cooling down for a while, only to stall again later.
- Engine Misfires and Hesitation: You may feel the engine stumbling, shaking, or hesitating during acceleration. This is often more noticeable under heavy throttle or at higher RPMs.
- Rough Idle: The engine may idle poorly or erratically.
- Check Engine Light: A failing module can trigger the Check Engine Light. Codes related to the ignition system, such as those in the P03xx range, may be stored.
Heat is the Enemy
For 1994-1996 LT1 models, the ICM is mounted directly to the hot cylinder head. The thermal compound between the module and its heat sink is critical for survival. When this compound dries out, the module overheats and fails. This is the most common cause of failure for this part.
Choosing the Right Aftermarket Ignition Module
When replacing your ICM, you'll find several aftermarket options. While original equipment (OEM) ACDelco parts are available, quality aftermarket brands offer a reliable alternative, often at a better price.
Brand Tiers for Your Roadmaster
- Delphi: Delphi has a long history as an OEM supplier for GM and other carmakers. Their parts are generally considered to be high-quality and are designed to meet or exceed original specifications. For a critical electronic part like the ICM, Delphi is a strong choice that balances quality and cost.
- Standard Ignition (Standard Motor Products): SMP is a well-known and established aftermarket manufacturer. They offer parts that are a dependable alternative to OEM. While some forum users have mixed experiences with various aftermarket electronic parts, Standard is a reputable brand in the industry.
For a part that can leave you stranded, it is generally recommended to choose a reputable, OE-heritage brand over a generic, low-cost option. While even good brands can have a rare defective part, your chances of long-term success are much higher.
Pro Tip: Don't Forget the Thermal Paste!
When you install your new ignition module, you MUST apply a fresh layer of thermal paste (also called heat sink compound) to the metal backing plate. This paste fills microscopic gaps and ensures proper heat transfer to the heat sink. Do NOT use dielectric grease, as it is an insulator and will cause your new module to overheat and fail quickly. Most new modules come with a small packet of the correct paste.
Aftermarket Ignition Module Cost for 1991-1996 Buick Roadmaster
| Brand Tier | Part Price Range |
|---|---|
| Delphi / Standard Ignition | $79.96 - $138.79 |
| Shop Labor (Install) | $75 - $150 |
Prices are estimates and may vary based on your location and the specific retailer.
Frequently Asked Questions (FAQ)
Is this related to the big GM ignition switch recall?
No. The major GM recall from the 2010s was for the ignition *switch*—the part you put your key into. This article is about the ignition control *module*, which is a completely different electronic component in the engine bay.
Is the part different for the LT1 engine (1994-1996)?
Yes. The 1994-1996 Roadmaster uses an external ICM mounted on the cylinder head. The 1991-1993 models have the ICM located inside the distributor assembly. While they perform the same function, they are not interchangeable. Be sure to order the correct part for your specific year.
Can I replace this part myself?
For 1994-1996 models, yes. The job is straightforward for a DIYer with basic tools. It involves removing two small bolts and a wiring harness. 🎬 See this walkthrough for replacing the LT1 module and coil. For 1991-1993 models, the job is more involved as it requires opening the distributor. 🎬 Watch how to correctly install an internal ignition control module. The most critical step for either is the correct application of new thermal paste.
My car only stalls when it's hot. Could it still be the ICM?
Yes, that is a classic symptom of a failing ignition control module. Heat increases electrical resistance, and a module that is on the verge of failure will often stop working when it reaches a certain temperature, only to work again after it cools down.
Helpful Videos
Technical Specifications

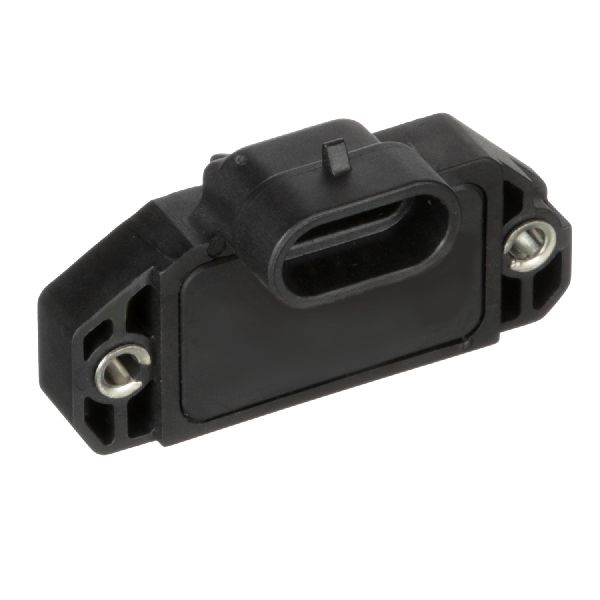

OEM Part Numbers: 19179578 19352931 19352932 10483139
Location varies by year. 1991-1993 models have an internal module inside the distributor. 1994-1996 LT1 models use an external module mounted to the cylinder head.
