A Guide to the Starter Motor for the 1991-1996 Buick Roadmaster
Solve your Roadmaster's starting problems by understanding common failures and choosing the best replacement starter.
- Always test the battery and check cable connections before condemning the starter; many symptoms overlap.
- For 1994-1996 models, a "no-start when hot" issue is likely starter heat soak, which can be fixed with a heat shield or an upgraded starter.
- Upgrading to a gear-reduction starter from a C4 Corvette is a popular and effective solution for LT1-powered Roadmasters.
- Investing in a premium brand like ACDelco or a performance starter is recommended over budget options to avoid premature failure.
Is Your Buick Roadmaster Starter Failing?
A bad starter is one of the most common reasons a 1991-1996 Buick Roadmaster won't start. Before replacing parts, always confirm your battery is fully charged and the terminals are clean and tight. Many starter issues are mistaken for a dead battery. If the battery is good, the symptoms below point toward a failing starter.
Common Symptoms of a Bad Starter:
- Single Loud Click: You turn the key and hear one sharp click, but the engine doesn't crank. This means the starter solenoid is engaging, but the motor itself isn't turning, often due to internal wear.
- No Sound at All: If your battery is good but you get silence when turning the key, the problem could be in the electrical path to the starter, including a failed solenoid.
- Slow, Labored Cranking: The engine turns over very slowly, as if the battery is weak. If the battery is fine, the starter motor is likely worn out and struggling to produce enough torque.
- Grinding Noise: A harsh grinding sound during or after cranking suggests the starter's pinion gear is damaged or not aligning correctly with the flywheel.
- Intermittent Starting: The car starts perfectly one day but refuses to crank the next. This unpredictability is a classic sign of a starter on its way out.
Known Issue: Starter Heat Soak on LT1 Models (1994-1996)
If your 1994-1996 Roadmaster starts fine when cold but refuses to crank after a hot engine is shut down for 15-30 minutes, you are likely experiencing starter "heat soak." The starter on the LT1 V8 is located very close to the hot exhaust manifold. This intense heat increases electrical resistance within the starter and solenoid, preventing it from working until it cools down. Owners often solve this by installing a starter heat shield or upgrading to a more robust starter.
🎬 Watch: How to fix LT1 starter heat soak issues.Choosing the Right Aftermarket Starter
When shopping for a new starter, you'll find a wide price range. This reflects different levels of quality and design. For a large, heavy vehicle like the Roadmaster, choosing a quality part is important to ensure reliable starting.
Brand Tiers for Your Roadmaster
- Premium Aftermarket (ACDelco Professional): ACDelco is the original parts supplier for General Motors. Their Gold (Professional) line is designed to meet or exceed original specifications and is the recommended choice for a direct, reliable replacement that you can trust.
- Performance Aftermarket (Powermaster, Proform): These brands often offer high-torque, gear-reduction starters. They are smaller, lighter, and more powerful than the original design. They are an excellent upgrade for any Roadmaster, especially 1994-1996 models suffering from heat soak.
- Budget/Store Brands: While tempting due to their low price, generic or store-brand starters have a mixed reputation. Some owners report premature failures, sometimes in less than two years. Given the labor involved in a replacement, investing in a better brand is often worth it.
Pro Tip: The Corvette Starter Upgrade
For 1994-1996 Roadmasters with the LT1 engine, a popular and effective upgrade is to install a starter designed for the 1992-1996 C4 Corvette. The Corvette starter is a gear-reduction unit that is more compact and often better at resisting heat soak. It is considered a direct-fit modification, though some owners note it can be a tight squeeze to install.
🎬 See how the Corvette starter fits in a Roadmaster.Cost of Replacing a Buick Roadmaster Starter
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket Starter | $85 - $384 |
| Shop Labor | $120 - $250 |
| Total Estimated Cost | $205 - $634 |
Cost estimates are for parts and labor and can vary by location and part quality.
Frequently Asked Questions
Can I drive my Roadmaster with a bad starter?
No. If the starter is completely failed, your engine will not crank, and you will be stranded. If it is failing intermittently, you risk it failing to start at any time.
Is replacing the starter a DIY job?
Yes, for those with mechanical experience. The job requires safely lifting the vehicle and working underneath it. Access is tight, but the process involves removing just two bolts and two electrical wires. Having the right tools, like a ratchet with extensions, is crucial.
🎬 Watch: A simple trick for removing the 91-93 starter.What is a starter solenoid?
The solenoid is a small component, usually attached to the starter motor. It acts as a powerful switch that does two things: it pushes the starter gear forward to engage the engine, and it closes the circuit to send high-amperage power from the battery to the starter motor. A single click with no crank often points to a failed solenoid.
Do I need to shim my new starter?
Sometimes. A shim is a thin metal spacer used to create the correct distance between the starter gear and the flywheel. If you hear a grinding or whining noise with a new starter, it may need to be shimmed. While not always necessary, it's a potential step in the installation process.
Could a loose wire cause my starter problems?
Absolutely. Before replacing the starter, check all connections. A loose or corroded main battery cable at the starter's B+ terminal can prevent the starter from getting enough power, mimicking a failed unit. A GM service bulletin highlights this as a common cause for a no-crank condition.
Helpful Videos
Technical Specifications
OEM Part Numbers: 10455112 10496878 19135436 323-468

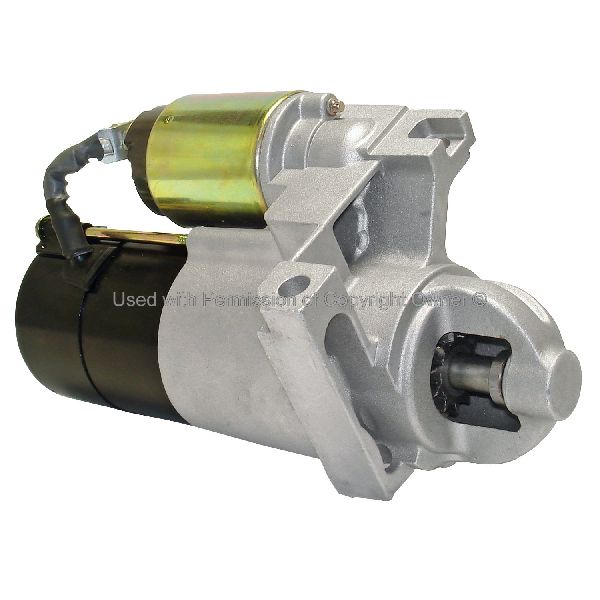

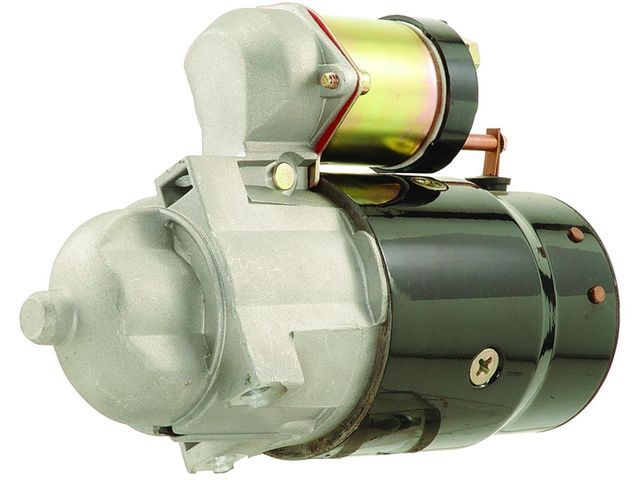

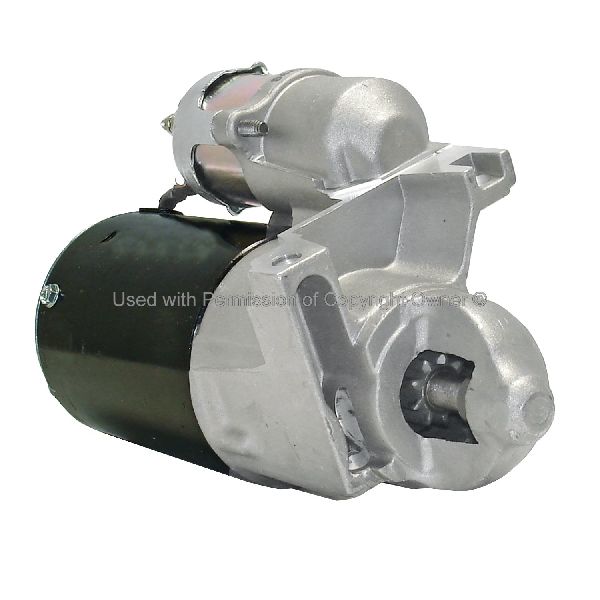

The 1991-1993 models use a larger, direct-drive style starter. The 1994-1996 LT1 models use a smaller, offset gear reduction (OSGR) starter. Upgrades to high-torque or Corvette-style gear reduction starters are common for improved performance and heat resistance.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
