Chevrolet Caprice Window Motor & Regulator Guide (1991-1996)
Everything you need to know before replacing the power window motor in your Caprice or Impala SS.
- Always inspect the plastic window guide clips; they are a primary failure point and can cause a new motor to fail quickly.
- Replacing the complete motor and regulator assembly is easier than replacing the motor alone and addresses all common wear items.
- Be prepared to drill out the factory rivets and replace them with bolts and nuts.
- Established aftermarket brands like Dorman and Cardone are generally a safer choice than no-name budget options.
Is Your Window Motor Failing?
A failing window motor in your Caprice or Impala SS can be more than an annoyance; it can be a security risk. Symptoms often start small but can lead to a window that's completely stuck. Pay attention to these signs:
- Slow Operation: The window struggles to go up or down, moving much slower than it used to.
- Grinding or Clicking Noises: You hear mechanical grinding or clicking sounds from inside the door when you press the switch. This often points to a stripped gear in the motor or a problem with the regulator.
- Window Tilts or Binds: The glass tilts forward or backward as it moves, getting stuck in the tracks. This is a classic sign of a broken regulator guide.
- Window Drops Inside Door: In a worst-case scenario, the window suddenly falls into the door. This happens when critical parts of the regulator or its guides break completely.
- Motor Hums But Nothing Happens: If you hear a hum from the motor but the window doesn't move, the motor is receiving power, but its internal gears are likely stripped or the regulator is jammed.
- No Sound or Movement: If nothing happens and you hear no sound, the problem could be the motor, the switch, or a blown fuse.
A Note on Window Regulator Guides

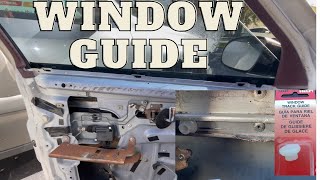

A very common failure point on the 1991-1996 Caprice, Impala SS, and other GM B-bodies is not the motor itself, but the small plastic window regulator guides (or clips). These guides hold the window glass to the regulator track. Over time, the plastic becomes brittle and breaks, causing the window to tilt or fall. This puts immense strain on the motor, often causing it to burn out. If you are replacing your motor, it is essential to inspect these guides and replace them if they are cracked or broken. Aftermarket guides are widely available (Dorman part 744444 is a common replacement 🎬 See how to replace these common failing window regulator guides.).
Choosing the Right Aftermarket Window Motor
New Original Equipment (OEM) parts for this vehicle are generally unavailable. Your choice is between new aftermarket parts, remanufactured parts, or used OEM parts from a junkyard. For a component with known plastic and wear-related failures, a new aftermarket assembly is often the most reliable choice.
Aftermarket brands for your Caprice generally fall into two tiers:
- Tier 1 (Established Brands): Dorman, Cardone. These brands are well-known in the aftermarket. Dorman, in particular, often engineers "OE FIX" parts that aim to correct original design flaws, for example by using improved materials to resist binding. While quality can still vary, they are generally a safe bet and often come with a lifetime warranty.
- Tier 2 (Budget Brands): Replacement, Skyward, Surtrak, etc. These are often private-label or generic brands that offer a lower price. They can be a good value, but quality and longevity can be a gamble. Some users report these parts failing much sooner than higher-quality alternatives.
Pro Tip: Buy the Assembly
You can buy the window motor separately, but it is highly recommended to purchase a complete window regulator and motor assembly. The original factory parts are held in the door with rivets that must be drilled out. A new assembly comes with the motor already attached to the regulator, saving you a step. It also ensures you are replacing all the major wear components at once.
Typical Replacement Costs
Costs can vary by brand, supplier, and whether you do the work yourself. Labor rates are based on a typical shop rate of $100-$150 per hour.
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket Motor/Regulator Assembly | $36.95 - $94.63 |
| New OEM Motor/Regulator Assembly | Generally Unavailable |
| Used OEM Assembly (Junkyard) | $25 - $75 |
| Shop Labor for Installation | $120 - $250 |
Frequently Asked Questions (FAQ)
Do I have to drill out rivets to replace the motor?
Yes, on the 1991-1996 Caprice, the factory window regulator assembly is secured to the inner door structure with steel rivets. You will need a drill and a properly sized drill bit to remove them. The new assembly can then be installed using bolts, nuts, and washers, which are often easier to work with.
Should I replace just the motor or the whole regulator assembly?
It is strongly recommended to replace the entire motor and regulator assembly. The regulator's cables can stretch and its plastic guides can break. Replacing the whole unit ensures all wear items are new and saves you the hassle of separating the old motor from the old regulator.
Is the front window motor the same as the rear?

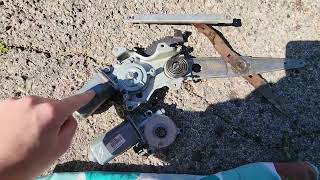

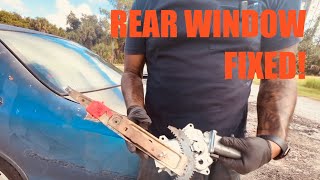

No, the front and rear window motors 🎬 Follow this walkthrough for replacing the rear window motor assembly. and regulators are different parts and are not interchangeable. They are also specific to the driver's side 🎬 Watch this step-by-step driver's side window motor replacement guide. and passenger's side. Be sure to order the correct part for your specific door.
Why is my new aftermarket motor noisy?
Some owners report that aftermarket motors can be slightly louder or faster than the original factory units. This is not necessarily a sign of a defect. However, loud grinding or clicking can indicate a problem with the installation, a misaligned window, or a faulty part. Ensure the regulator tracks are clean and lightly lubricated with a silicone spray to ensure smooth operation.
Helpful Videos
Technical Specifications
The assembly is typically secured by rivets which must be drilled out for replacement. Replacement is often done with bolts and nuts. The motor connects via a standard wiring harness plug inside the door.
