Guide to Replacing the Automatic Transmission Mount on a 1991-1996 GMC G3500
Stop the clunking and shaking in your G-series van by understanding and replacing its transmission mount.
- A loud clunk when shifting into gear is the most definitive sign of a failed mount.
- Aftermarket brands like Anchor, DEA, and Westar are cost-effective and suitable replacements for this van.
- Replacement is a simple DIY job requiring basic tools, a jack, and jack stands.
- Always support the transmission with a jack and a block of wood before unbolting the old mount.
Symptoms of a Failing Transmission Mount
On a heavy-duty van like the G3500, a worn-out transmission mount is a common issue. The rubber cracks and collapses from age, heat, and being soaked in fluids like oil or transmission fluid. When it fails, the transmission is no longer held securely. Look for these clear signs:
- Clunking or Banging Noises: The most common symptom is a loud "clunk" or "bang" when you shift from Park into Drive or Reverse. You may also hear it during acceleration or braking as the transmission shifts its weight.
- Excessive Vibration: You may feel a new or heavy vibration in the floor or seat, especially when the van is idling in gear or while driving. This happens because the failed rubber can no longer absorb drivetrain vibrations.
- Visible Movement: If you can safely have someone watch the engine while you brake-torque the vehicle (holding the brake and briefly putting it in gear), they may see the entire engine and transmission assembly lurch or lift excessively.
Don't Ignore a Bad Mount
Continuing to drive with a completely failed mount can cause bigger problems. The extra movement puts stress on engine mounts, driveshaft U-joints, exhaust pipes, and even transmission seals, potentially leading to more expensive repairs down the road.
Choosing the Right Aftermarket Mount
For a 1991-1996 G3500, finding a brand-new OEM mount from GM is unlikely. The aftermarket is your most practical and affordable source. The brands available—Anchor, DEA, Pioneer, and Westar—are all considered standard, economy-level replacements.
Here’s an honest breakdown:
- Quality: These brands are designed to be a low-cost alternative to OEM parts. Forum discussions show that while some mechanics dislike their fit and finish compared to original parts, many DIYers use them with success. For an older work van, they are generally considered a perfectly acceptable solution that gets the job done.
- Material: Most use a standard rubber block vulcanized to a steel frame, similar to the original design. Some users in forums have noted minor differences in metal thickness or rubber hardness between brands, but for this simple application, performance is largely similar.
- Recommendation: There is no significant performance difference between these budget-friendly brands for this specific part. Choose based on price and availability. They provide a cost-effective way to restore your van's smoothness and eliminate clunking noises.
Replacement Cost
Replacing the transmission mount is one of the more affordable drivetrain repairs. The part itself is inexpensive, and the labor is straightforward.
| Item | Estimated Cost |
|---|---|
| New Aftermarket Part | $12 - $21 |
| Shop Labor | $85 - $125 |
| Total Professional Replacement | $100 - $150 |
This is a great DIY project for those with a good jack, jack stands, and basic hand tools. The process is simple and can save you over $100 in labor. Watch a tutorial for a similar year GM truck or van to see the process.
Frequently Asked Questions (FAQ)
How do I know for sure my transmission mount is bad?
The easiest way to check is with a visual inspection. Look at the mount for cracked, torn, or collapsed rubber. Often, the rubber part will have completely separated from the metal base. You can also use a pry bar to gently check for excessive movement between the transmission tail housing and the crossmember. If it moves easily or clunks, it needs replacement.
How many transmission mounts does my G3500 have?
Your 1991-1996 G3500 has one rear transmission mount that supports the tail end of the transmission. The front of the drivetrain is supported by two engine mounts.
Is replacing the transmission mount difficult?
No, it is generally considered an easy to moderate DIY job. The process involves supporting the transmission with a jack, removing three bolts, and swapping the part. The most common difficulty is dealing with rusted bolts, so spraying them with penetrating oil beforehand is highly recommended.
Are there any recalls on the transmission mount for this van?
No, there are no recalls or common Technical Service Bulletins (TSBs) specifically for the transmission mount on the 1991-1996 GMC G3500. There was a safety recall (NHTSA 93V016000) for transmissions in this era, but it concerned a vent tube that could expel fluid and create a fire risk, not a faulty mount.
Technical Specifications
OEM Part Numbers: 15820075

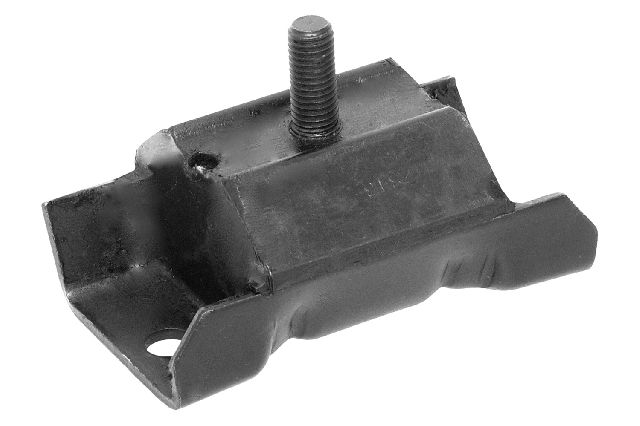

Standard two-bolt mount with a single stud. Common aftermarket part numbers include 2811 and A2811.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
