Guide to the 1991-1996 GMC G3500 Throttle Position Sensor
Having trouble with stalling or poor acceleration? Your van's Throttle Position Sensor could be the culprit.
- A faulty TPS on a '91-'96 G3500 commonly causes hesitation, erratic idle, and poor automatic transmission shifting.
- Replacement is a simple, 30-minute DIY job requiring only basic tools like a T25 Torx driver.
- For best results, choose a reputable aftermarket brand like Delphi or Standard Motor Products (SMP) over budget options.
- Before replacing the TPS, check for other common TBI issues like a dirty throttle body or a bad IAC valve, which can cause similar symptoms.
Is Your G3500's Throttle Position Sensor Failing?
A bad TPS can cause a range of frustrating problems that can be easily mistaken for other issues. Because the sensor's signal impacts both the engine and transmission, you might notice one or more of the following symptoms.
🎬 Watch this video for a detailed breakdown of TPS failure symptoms.Top 5 Failure Symptoms:
- Hesitation or Stumbling: When you press the gas pedal, the van may bog down, hesitate, or feel like it's losing power.
- Erratic or High Idle: The engine might idle too fast, or the idle speed may surge up and down for no reason.
- Poor Automatic Transmission Shifting: The transmission may shift at the wrong times, shift harshly, or delay shifts. This happens because the transmission control module relies on the TPS signal to time gear changes.
- Sudden Stalling: The engine can stall unexpectedly when you come to a stop or while idling.
- Check Engine Light: A failing TPS will often trigger the Check Engine Light. Common trouble codes associated with a bad TPS include P0121, P0122, and P0123 on OBD-II compliant models (1996).
Don't Mistake Other Failures for a Bad TPS

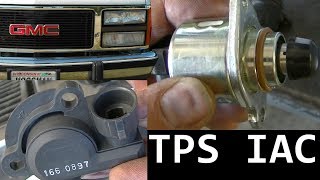

On these TBI-equipped vans, symptoms like rough idle and hesitation can also be caused by a dirty throttle body, a failing Idle Air Control (IAC) valve, a bad MAP sensor, or vacuum leaks. It's wise to inspect these other components before replacing 🎬 See how a bad TPS and IAC cause high idle issues. the TPS.
Choosing the Right Aftermarket TPS
For a workhorse vehicle like the G3500, reliability is key. While an OEM part is an option, several reputable aftermarket brands offer a good balance of quality and value. Aftermarket electronic parts can sometimes be inconsistent, but choosing a well-regarded brand minimizes risk.
Aftermarket Brand Tiers
- Premium Brands (Delphi, NGK/NTK, Standard Ignition 'T-Series'): These brands are often original equipment manufacturers for many automakers, including GM. They are known for quality components and rigorous testing. Forum discussions often recommend Delphi and Standard Motor Products as reliable choices that are close to factory quality.
- Standard/Value Brands (Dorman, Walker Products, Beck Arnley): These brands provide a functional replacement at a lower cost. Dorman is a common replacement part brand, though user reviews on electronic parts can be mixed. They are a viable option for budget-conscious repairs.
- Economy Brands (Replacement, Global Parts, True Tech): These are typically the most affordable options. While they will get your van running, their long-term durability and consistency may not match that of premium brands.
Pro Tip: Given the low cost of even premium aftermarket sensors and the critical role the TPS plays, spending a little extra on a brand like Delphi or Standard Ignition is a good investment for peace of mind and long-term reliability.
How Much Does a New TPS Cost for a '91-'96 G3500?
The cost to replace the throttle position sensor is relatively low, especially if you do the work yourself. The part itself is affordable, and labor is minimal.
| Item | Estimated Cost |
|---|---|
| New Aftermarket TPS Part | $25 - $116 |
| Shop Labor | $50 - $100 |
| Total Estimated Cost (Installed) | $75 - $216 |
Frequently Asked Questions
Is it hard to replace the TPS on a G3500 myself?
No, this is a very easy DIY job. The TPS is located on the side of the throttle body and is typically held on by two T25 Torx screws. After removing the air cleaner assembly for access, you just unplug the electrical connector, unscrew the old sensor, and install the new one. The entire job can usually be done in under 30 minutes with basic hand tools.
🎬 Follow this step-by-step guide to replace your throttle position sensor.Does a new TPS need to be calibrated?
For the 1991-1996 G3500, a specific calibration or programming procedure is generally not required. The engine computer will "learn" the new sensor's values. Some mechanics recommend disconnecting the battery for about 15 minutes to reset the computer's memory after installation.
Are there any recalls for the TPS on these vans?
No, there have been no specific recalls issued by the NHTSA for the throttle position sensor on the 1991-1996 GMC G3500. While a large GM recall in the 1990s involved anti-lock brakes on G-vans, it did not pertain to the TPS. A later TSB for TPS issues on much newer GM vehicles (2008 and later) does not apply to this generation.
Should I clean the throttle body when replacing the TPS?
Yes, it's an excellent idea. Since you already have the air cleaner off, it's the perfect time to clean any carbon buildup from the throttle body bore and plate using a dedicated throttle body cleaner. This can help resolve other idle or hesitation issues.
Helpful Videos
Technical Specifications
OEM Part Numbers: 17111787 17069534 20091459
Mounts to the throttle body assembly. Features a 3-pin female electrical connector and male blade-type terminals.
