A Guide to the Throttle Position Sensor for the 1991-1997 Toyota Previa
Solve common engine hesitation and automatic transmission shifting problems by understanding this critical sensor.
- A bad TPS is a common cause of both engine hesitation and automatic transmission shifting problems in the 1991-1997 Previa.
- Proper adjustment of the new sensor with a feeler gauge and ohmmeter is critical for correct operation; do not skip this step.
- Symptoms can appear suddenly or worsen over time; disconnecting the sensor may temporarily change engine behavior, confirming it's a point of failure.
- Choosing a quality aftermarket brand like Beck Arnley or Standard Ignition can provide OEM-level performance for a lower price.
Understanding Throttle Position Sensor Failure in Your Previa
If you're experiencing strange engine behavior with your 1991-1997 Toyota Previa, a failing Throttle Position Sensor (TPS) is a likely culprit. This sensor is a common wear item, and its failure can cause a range of frustrating symptoms. Because the TPS provides critical data for both the engine and transmission, a bad sensor can make you think you have a major transmission problem when it's actually a much simpler fix.
Symptoms of a Bad Previa TPS
A faulty TPS can manifest in several ways. You might notice your van hesitating or stumbling when you accelerate. The engine idle might become rough, unstable, or stall completely. One of the most common complaints for Previa owners is erratic or delayed shifting from the automatic transmission. This is because the transmission control unit relies on the TPS signal to know when to shift gears. You may also see the Check Engine Light illuminate.
🎬 Watch a detailed breakdown of common TPS failure symptoms.A Note on Adjustment
For the 1991-1997 Toyota Previa, simply replacing the TPS is not enough. The new sensor must be adjusted correctly using a feeler gauge and an ohmmeter to ensure the ECU receives the correct idle signal. Skipping this step will result in continued performance issues, even with a brand new part. 🎬 See how to properly adjust your Previa's throttle sensor. Many owners and even some shops overlook this, leading to frustration.
Choosing the Right Aftermarket TPS
While a genuine Toyota (OEM) sensor is always a high-quality option, a good aftermarket part can offer significant savings without sacrificing reliability. For a vehicle like the first-generation Previa, the aftermarket provides several solid choices. Here’s how they generally stack up:
- Premium Aftermarket (Beck Arnley, Standard Ignition): These brands are well-regarded in the industry. They often have rigorous quality control and design their parts to meet or exceed OEM specifications. Beck Arnley is known for sometimes sourcing parts from the original OEM manufacturer, so you may receive a Denso-equivalent part in their box. Standard Motor Products (SMP) is a long-standing, trusted name in electronic parts.
- Quality Aftermarket (Walker Products): Walker is another established brand that produces reliable sensors. They provide a good balance of quality and price, making them a popular choice for DIY repairs.
- Budget/Value (Global Parts, Replacement): These brands offer the most affordable options. While they can get your vehicle back on the road, their long-term durability and the precision of their internal components may not match that of the premium brands. They are a viable option if budget is the primary concern.
Pro Tip: Check the OEM Part Number
Before ordering, it's always a good idea to verify the part number on your Previa's original TPS if possible. Common Toyota part numbers for this era include 89452-12040 and 89452-22080. This helps ensure you get an exact match.
Cost of Replacing a Previa Throttle Position Sensor
| Part Type | Estimated Cost |
|---|---|
| New OEM (Toyota) | $100 - $186 |
| New Aftermarket | $34 - $110 |
| Shop Labor | $91 - $133 |
| Total Professional Replacement 🎬 Learn more about TPS replacement costs and diagnostic signs. | $244 - $319 |
Frequently Asked Questions (FAQ)
Can I just clean my old TPS?
No. The TPS is a sealed electronic sensor containing a resistor strip that wears out over time. Cleaning the outside will not fix the internal wear that causes incorrect readings. Replacement is the only solution.
Why are my transmission shifting problems related to this engine sensor?
The Previa's Engine Control Unit (ECU) and transmission computer work together. The TPS tells the transmission when you are demanding power (accelerating) or coasting. Based on this signal and vehicle speed, the transmission decides when to shift. A bad signal makes the transmission shift at the wrong times, or not at all.
Is this a difficult part to replace myself?
The replacement itself is straightforward for someone with basic tools. The TPS is located on the throttle body and held by two screws. However, accessing it on the Previa's mid-engine layout can be tight. The most critical part is the adjustment procedure, which requires patience and the right tools (feeler gauge, ohmmeter).
Are there any recalls for the Previa's throttle position sensor?
No, there are no specific recalls for the throttle position sensor on the 1991-1997 Toyota Previa. Broader Toyota recalls for unintended acceleration in the late 2000s were related to floor mats and sticking pedal mechanisms, not the electronic throttle position sensor itself.
Helpful Videos

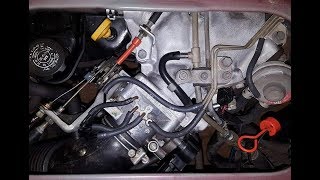

![Throttle Position Sensors (TPS) & Top Stop Screw Adjustments [ Tarago Previa Estima TCR10 2TZ-FE ]](https://img.youtube.com/vi/TLiaPlhXBc8/mqdefault.jpg)
Technical Specifications
OEM Part Numbers: 89452-12040 89452-22080 89452-22090
4-pin rectangular connector, mounts to throttle body. Requires adjustment via ohmmeter and feeler gauge during installation.
