Ford Explorer Parking Brake Switch Guide for 1991-1998 Models
Is the red 'BRAKE' light on your dashboard lying to you? Here's how to fix it.
- A bad parking brake switch usually causes the 'BRAKE' dash light to stay on or not turn on at all.
- Before replacing the switch, check for loose wires at the connector and ensure the pedal isn't sagging.
- Replacement is a simple DIY task that takes less than 30 minutes with basic tools.
- A quality aftermarket brand like Standard Ignition is a reliable and cost-effective choice for this part.
Is Your Explorer's Parking Brake Switch Failing?
The parking brake switch on the first and second-generation Ford Explorer is a straightforward mechanical part. It's mounted on the parking brake pedal assembly under your dashboard. When it starts to fail, the symptoms are usually obvious and tied directly to the 'BRAKE' warning light on your dash. Ignoring these signs can be a nuisance or, worse, mask a more serious issue with your main braking system.
Top Symptoms of a Bad Parking Brake Switch
- 'BRAKE' Light Stays On: The most common complaint is the dashboard warning light remaining illuminated even after the parking brake pedal is fully released. This can be caused by a switch that is stuck in the 'on' position or a misaligned pedal.
- 'BRAKE' Light Never Turns On: You press the parking brake pedal, but the warning light on the dash never appears. This indicates the switch is failing to make an electrical connection.
- Flickering 'BRAKE' Light: The light may flicker as you drive, especially over bumps. This often points to a loose switch, a weak pedal return spring, or a damaged wiring connector.
Don't Confuse It with the Brake Light Switch
Your Explorer has two different switches. The Parking Brake Switch (this article) only controls the dash light. The Brake Light Switch is on the main brake pedal and controls your rear brake lights and cruise control. If your rear brake lights don't work, that's a different problem.
Choosing the Right Aftermarket Switch
For a vehicle of this age, finding an original Ford (Motorcraft) part might be difficult. Aftermarket parts are widely available and offer a cost-effective solution. For a simple component like this switch, a quality aftermarket brand is a reliable choice.
- Standard Ignition (SMP): Standard is a well-known and respected aftermarket manufacturer that produces a wide range of automotive electronics. Their parts are known to be dependable replacements that meet or exceed original equipment standards, making them a solid choice for your Explorer.
Given the simplicity of this part, there is little functional difference between a new OEM switch and a quality aftermarket one from a brand like Standard Ignition. The primary goal is a switch that fits correctly and has durable contacts.
Estimated Cost Comparison
| Part Type | Estimated Cost |
|---|---|
| New OEM (Motorcraft) | $30 - $60 |
| New Aftermarket (Standard Ignition) | $25.36 - $44.34 |
| Used OEM | $5 - $20 (if found) |
| Shop Labor | $50 - $100 |
Pro Tip: Check the Simple Things First
Before buying a new switch, check for simple mechanical issues. Make sure the parking brake pedal isn't sagging; try pulling it up with your foot to see if the light goes out. 🎬 Watch: How to troubleshoot a flickering parking brake light. Also, inspect the wiring connector attached to the switch. Over years of use, the wires can become loose or damaged from contact with the carpet or floor mat.
Frequently Asked Questions (FAQ)
Can I replace the parking brake switch myself?
Yes, this is a very easy DIY job for any skill level. The switch is located on the parking brake pedal assembly under the driver's side dashboard. It can be replaced in under 30 minutes with basic hand tools.
🎬 See this walkthrough for replacing the emergency brake switch.Where is the parking brake switch located on a 1991-1998 Explorer?

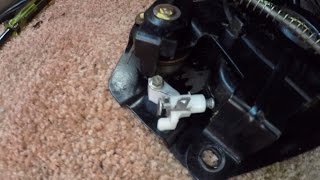

Look up from the driver's side floor mat at the top of the foot-operated parking brake pedal assembly. You will see a small switch with a wiring connector plugged into it, mounted to the bracket.
Is it safe to drive with a bad parking brake switch?
Yes, but with caution. A faulty switch does not affect the mechanical operation of your parking brake or your main hydraulic brakes. However, if the 'BRAKE' light is always on, it could prevent you from noticing a real issue with your brake system, such as low fluid, which also triggers the same light.
Are there any recalls for this part on my Explorer?
No recalls were found specifically for the parking brake switch on 1991-1998 Ford Explorers. Searches for recalls on this system primarily show issues with electronic parking brakes on much newer models.
Helpful Videos
Technical Specifications
OEM Part Numbers: F87Z-2B623-AA
A simple, 2-pin, normally open or closed mechanical switch mounted to the parking brake pedal assembly.
