Engine Oil Pan Replacement Guide for the 1991-2000 GMC C3500
Leaking oil from your workhorse C3500? Here’s what you need to know before you replace the engine oil pan.
- Verify your truck is 2WD or 4WD before getting a repair quote, as the labor cost differs dramatically.
- Confirm the leak is from the oil pan gasket, as leaks from valve covers or oil cooler lines are common and can be misleading.
- Always use a new, one-piece oil pan gasket and apply RTV sealant at the four corners of the block for a leak-free seal.
- If you have the 7.4L (454) engine, the job requires lifting the engine for clearance, even on 2WD models.
Is Your Oil Pan Failing? Common Symptoms
On a heavy-duty truck like the GMC C3500, the oil pan is built to be tough, but it can still fail. The most common failure isn't the pan cracking, but the gasket between the pan and the engine block getting old and brittle, causing a leak. Here’s what to look for:
- Oil Puddles: The most obvious sign is dark brown or black oil spots on the ground under your engine.
- Low Oil Light: If the leak is bad enough, your oil level will drop and trigger the low oil pressure warning light on your dashboard.
- Burning Oil Smell: Oil leaking onto hot exhaust pipes will burn off, creating a distinct and unpleasant smell.
Confirm the Leak Source!
Before you buy a new pan, make sure the leak is actually from the oil pan gasket. On these GMT400 trucks, oil leaks from higher up on the engine, like the valve cover gaskets or the oil cooler block-off plate, can drip down and make it look like the pan is the problem. Clean the engine and then run it to pinpoint the exact source of the leak.
🎬 Watch this guide on diagnosing leaks and oil cooler lines.Choosing the Right Aftermarket Oil Pan
Original GM oil pans for this generation of truck are largely discontinued or very hard to find new. This makes a new aftermarket part the most practical choice. Here’s a look at the available brands:
- Good Tier (Standard Replacement): Dorman, Spectra. These are widely available brands that offer a direct-fit replacement. Forum discussions show mixed but generally acceptable reviews for a standard repair. Some users have noted that pans from both brands can sometimes appear identical, suggesting they may come from the same factory. They are a cost-effective solution that will get your truck back on the road.
- Better Tier (Enhanced Durability): ATP. In forum comparisons, users have reported that ATP oil pans can be made from thicker, more corrosion-resistant steel than both OEM and other aftermarket options. If you use your truck in harsh conditions or want a more robust part, ATP is a strong choice.
- Other Brands: Pioneer Cable, Skyward. While available, there is less specific owner feedback on these brands for this application. They likely fall into the standard replacement category.
Always Replace the Gasket
Your new oil pan will not come with a gasket. Always buy a new, one-piece oil pan gasket. One-piece designs are much more reliable and easier to install than the older four-piece style gaskets. Also, remember to apply a small dab of RTV silicone at the four corners where the engine block meets the front and rear covers to prevent leaks.
2WD vs. 4WD: A Huge Difference in Labor
The cost and difficulty of this job depend entirely on your truck's drivetrain.
- 2WD Models: The job is relatively straightforward. The pan is accessible from underneath, and replacement typically takes 2 to 4 hours. Note that on models with the 7.4L (454) engine, the engine may need to be lifted slightly to get the pan out, which adds time. 🎬 See how to lift the engine for 7.4L pan removal.
- 4WD Models: This is a much more difficult and expensive job. The front differential sits directly under the oil pan and must be removed to get the pan out. This can turn the job into an 8 to 12-hour task, significantly increasing labor costs.
Cost to Replace a 1991-2000 GMC C3500 Oil Pan
Costs can vary widely based on your truck's configuration (2WD vs. 4WD) and local labor rates.
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Oil Pan | $65 - $278 |
| New OEM Oil Pan | $150 - $450+ (If found, largely discontinued) |
| Shop Labor (2WD) | $250 - $550 |
| Shop Labor (4WD) | $900 - $1,600+ |
| Total (2WD) | $315 - $828 |
| Total (4WD) | $965 - $1,878+ |
Frequently Asked Questions
Do I need to lift the engine to replace the oil pan?
For most 5.7L and 6.5L models, you do not. However, for the 7.4L (454) V8, you will likely need to unbolt the motor mounts and lift the engine about an inch to create enough clearance to remove the pan from the chassis.
Can I reuse my old oil drain plug?
It's best practice to use the new drain plug that comes with your aftermarket pan. The threads on the new pan are fresh, and using a new plug ensures a perfect seal. Aftermarket plugs may have a different head size than the original, so make sure you have the right socket.
Is the oil pan gasket riveted on?
The original factory gasket was often held to the pan with a few small rivets to aid in assembly line installation. You can easily drill or knock these rivets off the old pan. The new gasket does not need to be riveted; the pan bolts will hold it in place.
Why is the quote for my 4x4 so much higher?
On 4x4 models, the front axle and differential assembly are mounted under the engine and block access to the oil pan. A mechanic has to spend several hours removing the entire front differential just to get to the pan bolts, which is why the labor cost is significantly higher.

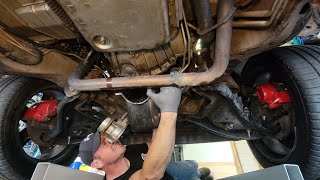

🎬 Watch a walkthrough of the oil pan removal process.Helpful Videos
Technical Specifications
OEM Part Numbers: 7.4L V8: 10240721, 19213986 6.5L Diesel V8: 12563902 (discontinued) 5.7L V8: 12559020, 10110839, 12518043
Material: Stamped Steel. Gasket Type: One-piece recommended. Drivetrain configuration (2WD vs. 4WD) is the most critical factor for installation.
