GMC C3500HD 1991-2000 Distributor Replacement and Upgrade Guide
Keep your classic heavy-duty truck running strong by understanding the common distributor issues and how to choose the right replacement.
- Identify your engine first: 1991-1995 TBI and 1996-2000 Vortec engines use different distributors and replacement procedures.
- For Vortec (1996-2000) models, a P1345 code almost always means the distributor gear is worn and the whole unit needs replacement.
- Aftermarket quality varies; brands like WAI Global offer new units, while Cardone is known for remanufactured parts with mixed reviews.
- Replacing a Vortec distributor requires a special scan tool to set the Camshaft Retard Offset—this is not an optional step.
Distinguishing Between TBI and Vortec Engines
The 1991-2000 model years for the C3500HD span two different engine management systems, which use different distributors. It's crucial to identify which you have.
- 1991-1995 (TBI): These trucks use a Throttle Body Injection system. The distributor is a more traditional HEI (High Energy Ignition) style with a coil that can be mounted on the cap or externally. Timing is set manually with a timing light.
- 1996-2000 (Vortec): These later models feature a more modern engine design with a distinct "crab-style" flat distributor cap. This distributor contains a camshaft position sensor and timing is not set manually; instead, a "Camshaft Retard Offset" must be set to 0° (+/- 2°) using a capable OBD2 scan tool after installation. Failure to do this will cause poor performance and trigger a P1345 check engine light code.
Vortec Distributor: Known Issues
The 1996-2000 Vortec distributors are known for several common problems. The plastic housings can crack, and the flat caps are notorious for trapping moisture, which leads to corrosion and misfires (a problem addressed in GM Technical Service Bulletin #03-06-04-041A). The most significant issue is wear on the distributor drive gear, which can cause erratic timing, poor performance, and a P1345 trouble code.
Choosing the Right Aftermarket Distributor
When replacing your distributor, you have several options. While OEM parts from GM were the original standard, the quality of aftermarket parts has become very competitive. For an older work truck, a new aftermarket part often provides the best balance of price and reliability.

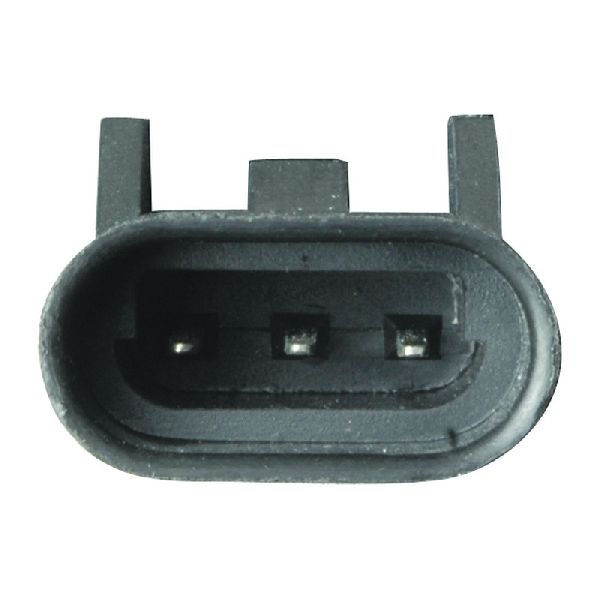

- WAI Global: WAI is a large manufacturer of 100% new aftermarket parts, not remanufactured ones. They are known for using OE-grade materials and offer a solid value for owners looking for a direct-fit replacement.

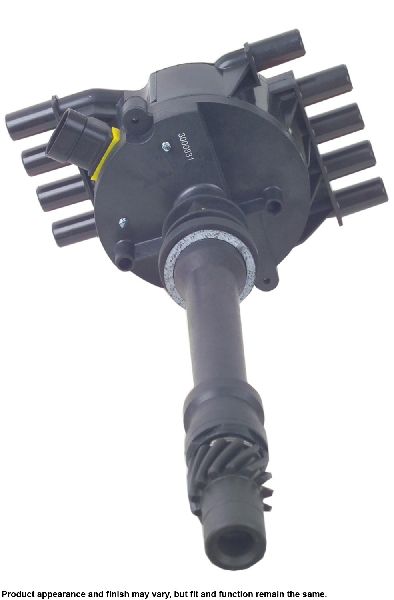

- Cardone: Cardone offers both new and remanufactured distributors. While they are a major name in the industry, owner reviews can be mixed, with some reporting issues with included components like ignition modules. Their parts can be a cost-effective option, but quality can be inconsistent.
- Replacement: This is typically a house brand that offers a direct-fit, budget-friendly option. The quality is often comparable to other value-focused brands, making it a viable choice for a quick repair, though longevity may not match premium brands.
Pro Tip: Many mechanics suggest that when using a budget-friendly aftermarket distributor, it's a good practice to replace the included ignition control module with a higher-quality one from a trusted brand for improved long-term reliability.
Distributor Replacement Cost
The cost to replace the distributor varies depending on the part brand and whether you perform the labor yourself. The job is more complex on Vortec models due to the need for a scan tool.
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Distributor | $87 - $173 |
| Shop Labor | $150 - $300 |
| Total Estimated Cost | $237 - $473 |
Frequently Asked Questions (FAQ)
Can I just replace the cap and rotor?
Yes, and it's often the first step for a tune-up or to solve minor misfires. The cap 🎬 Learn how to identify bad distributor symptoms and fix them. and rotor are wear items. However, if you have a P1345 code, a no-start condition, or can see the gear is worn, the entire distributor assembly needs to be replaced.
Do I need a special tool to replace the distributor?
For 1991-1995 TBI models, you will need a timing light to set the ignition timing correctly after installation. For 1996-2000 Vortec models, you MUST use an OBD2 scan tool capable of reading and adjusting the "Camshaft Retard Offset" to 0 degrees. This step is critical and 🎬 See how to fix a P1345 code on Chevy/GMC trucks. cannot be skipped.
What is the most common cause of distributor failure on the Vortec engines?
The most common major failure is the distributor gear wearing out. This causes slack in the distributor shaft, leading to an inaccurate signal from the camshaft position sensor. This typically results in a rough idle, hesitation, and the P1345 check engine light code.
Why does my distributor cap corrode so quickly?
On 1996-2000 Vortec models, the flat distributor cap design is prone to trapping moisture, which causes a white or green corrosive buildup on the metal terminals inside. GM issued a service bulletin (TSB #03-06-04-041A) about this issue. Using a quality cap and ensuring the distributor's vents are clear can help.
Helpful Videos
Technical Specifications
Fitment for 1991-1995 models (TBI engines) or 1996-2000 models (Vortec engines). Vortec models feature a flat 'crab-style' cap and an internal camshaft position sensor.
