1991-2001 Ford Explorer Ignition Switch: A Guide to Replacement
Diagnose and fix no-start conditions, stalling, and electrical faults caused by a failing ignition switch in your Explorer.
- A faulty ignition switch is a serious safety issue that can cause your Explorer to stall while driving.
- Check if your 1991-1993 Explorer was part of the major 1996 fire-related ignition switch recall.
- The electrical ignition switch is a separate part from the mechanical key lock cylinder; diagnose your symptoms carefully.
- For reliability, choose a quality brand like Motorcraft (OEM) or Standard Ignition (premium aftermarket).
Is It the Ignition Switch or the Lock Cylinder?
Many Ford Explorer owners confuse the ignition lock cylinder with the ignition switch. The lock cylinder is the mechanical tumbler you put your key into. The ignition switch is the electronic part mounted on the steering column that actually sends power to your truck's systems. A rod connects the two parts. If your key is physically stuck or hard to turn, the problem might be the lock cylinder. If you experience electrical issues like stalling or a no-start condition where the engine doesn't even try to crank, the ignition switch is a more likely culprit.
Recall Warning: Ignition Switch Fire Hazard (1991-1993 Models)
In 1996, Ford issued a massive recall for 8.7 million vehicles, including 1991-1993 Ford Explorers, due to a defective ignition switch. The switch could develop an internal short circuit, posing a serious fire risk even when the vehicle was parked with the engine off. Before purchasing a new part, it is critical to check with a Ford dealer or use the NHTSA website with your VIN to see if your vehicle was part of this recall and if the repair was ever performed.
Common Symptoms of a Failing Ignition Switch
- Engine Won't Crank: You turn the key to the 'Start' position, and nothing happens. The dashboard lights may or may not come on, but the starter motor is silent.
- Stalling While Driving: This is the most dangerous symptom. The switch can lose connection internally, cutting power to the engine and causing it to shut off unexpectedly. This can result in a loss of power steering and power brakes.
- Starts then Immediately Dies: The engine may fire up when the key is in the 'Start' position but die as soon as you release it to the 'On' position. This indicates the switch isn't maintaining power to the ignition system.
- Flickering Lights and Accessories: You may notice the dashboard lights, radio, or climate controls cutting in and out randomly while driving or when you jiggle the key.
Choosing the Right Aftermarket Ignition Switch
When replacing a critical electrical part, quality matters. While OEM is an option, several aftermarket brands offer reliable alternatives for your Explorer.
- OEM (Motorcraft): Ford's own brand, Motorcraft, is the benchmark for fit and reliability. For critical electrical components, many mechanics prefer to stick with OEM to avoid compatibility issues.
- Premium Aftermarket (Standard Ignition): Standard Motor Products (SMP) has a strong reputation in the aftermarket for producing high-quality electrical parts, often considered equal to or better than original equipment. They are known for robust designs and thorough testing.
- Standard/Economy (Dorman, Rostra, True Tech): Dorman is a well-known brand that produces a vast range of parts, but their quality can be inconsistent. While often more affordable, for a part that can cause stalling, it may be worth investing in a higher-tier brand. Rostra and True Tech are typically considered standard-grade options that balance cost and function.
Estimated Replacement Costs
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket | $21.18 - $56.16 |
| New OEM (Motorcraft) | $30 - $75 |
| Shop Labor | $100 - $180 |
| Total Estimated Cost | $121 - $236 |
Pro Tip: A simple test for a worn ignition switch is to start the engine and let it idle in park. Gently wiggle the key in the ignition without turning it. If the engine sputters, stalls, or you see dashboard lights flicker, the internal contacts of the ignition switch are likely worn out and it needs to be replaced.
Frequently Asked Questions
Can I replace the ignition switch myself?
Yes, this is a DIY-feasible job for someone with basic tools and mechanical experience. It involves removing trim panels under the steering column, lowering the column for access, and swapping the electrical switch. It does not typically require removing the steering wheel itself. The difficulty is moderate due to working in a tight space.
Do I need to program a new ignition switch?
No. For the 1991-2001 Ford Explorer, the ignition switch is a direct electrical part and does not require any programming. However, if you replace the ignition lock cylinder and get new keys, those keys may need to be programmed for the Passive Anti-Theft System (PATS) on later models in this generation (typically post-1995).
What happens if I don't replace a bad ignition switch?
Ignoring a failing ignition switch is dangerous. The most severe risk is the engine stalling while driving, which can lead to a complete loss of vehicle control. At best, you will eventually be stranded with a vehicle that won't start.
Is there a difference in the switch for different years or transmissions?
Yes, there can be differences. Part numbers may vary based on the model year and whether your Explorer has a tilt or non-tilt steering column. Always verify the part fits your specific year, engine, and column type before ordering.

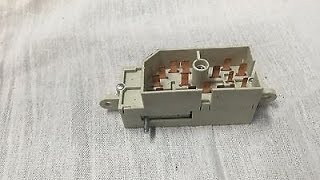

Helpful Videos
Technical Specifications

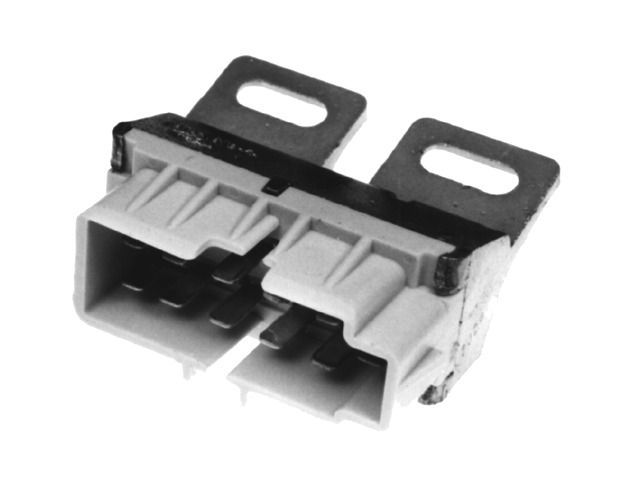

OEM Part Numbers: F2TZ-11572-B F2TZ-11572-E F5TZ-11572-A E9TZ-11572-B
Located on the steering column, activated by a rod connected to the ignition lock cylinder. This is an electrical switch, not a mechanical tumbler.
