A Guide to Replacing the Engine Water Pump on Your 1991-2002 Chevrolet C3500HD
Keep your heavy-duty Chevy's engine cool by understanding the signs of a failing water pump and choosing the right replacement part.
- Verify your engine type (5.7L, 7.4L, or 6.5L Diesel) before ordering, as the pumps are different.
- Symptoms like coolant leaks from the weep hole, grinding noises, or overheating are clear signs of failure.
- It is strongly recommended to also replace the thermostat, fan clutch, and radiator hoses at the same time.
- Use thread sealant on the water pump bolts to prevent leaks, as they pass into the engine's water jackets.
Symptoms of a Failing Water Pump
A bad water pump will almost always give you warning signs before it fails completely. Ignoring these signs can lead to severe engine damage, like a blown head gasket. Look out for these common symptoms:
- Coolant Leaks: This is the most common sign. You may see puddles of green, orange, or pink fluid under the front of your truck. The leak often comes from a small "weep hole" on the bottom of the pump, which is designed to leak when the internal seal fails. You might also see dried coolant trails on the engine.
- Grinding or Whining Noises: A high-pitched squeal or a low grinding noise from the front of the engine that changes with engine speed often points to a bad bearing inside the water pump. This means the pump's pulley is no longer spinning smoothly.
- Engine Overheating: If your temperature gauge climbs into the red, the water pump may not be circulating coolant effectively. Steam or white smoke coming from the radiator is a critical sign of overheating. If this happens, pull over and shut off the engine immediately to prevent major damage.
- Wobbly Fan Pulley: If you can wiggle the fan clutch back and forth, the bearing in the water pump that it bolts to is worn out. This is a sure sign the pump needs to be replaced.
Choosing the Right Aftermarket Water Pump

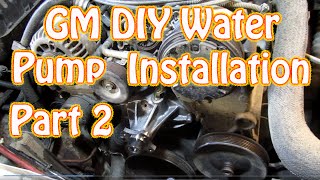

When you shop for a new water pump for your C3500HD, you will find many brands. Not all are created equal. It is critical to buy a pump that matches your specific engine (5.7L, 🎬 Watch this step-by-step 5.7L Vortec water pump installation guide. 7.4L, or 6.5L Diesel), 🎬 See how to replace the water pump on a 7.4L engine. as they are not interchangeable.
Aftermarket Brand Tiers
| Tier | Brands | Quality & Cost Assessment |
|---|---|---|
| Premium Aftermarket / OEM Equivalent | ACDelco GM Original Equipment | This is the highest quality and most expensive option, considered the same as the part your truck came with from the factory. If you want maximum reliability and are willing to pay for it, this is the best choice. |
| Quality Aftermarket | ACDelco Professional, Gates, Dayco, GMB, Melling | These are well-known brands that offer a good balance of quality and price. ACDelco's professional line is a solid choice, though it may be a re-boxed part from another manufacturer. Gates and Dayco are major names in cooling systems, but some users in forums report occasional premature failures. GMB is often a supplier to car companies and is generally considered a reliable value. |
| Value / Economy | US Motor Works, PRW, Proform | These brands typically offer the lowest prices. They can be a good option for a tight budget, but quality can be inconsistent. While they are designed to fit and function, their long-term durability may not match that of the higher-tier brands. |
OEM vs. Aftermarket Quality
For a workhorse like the C3500HD, investing in a quality water pump is a smart move. While many aftermarket pumps are as durable as the original, some cheaper options may not last as long. Some forum users have had negative experiences with certain aftermarket brands, having to replace them sooner than expected. An ACDelco GM Original Equipment part offers the most peace of mind, but a quality aftermarket pump from a reputable brand like Gates, Dayco, or GMB is often a perfectly reliable choice for most owners. Avoid remanufactured water pumps, as their quality is often questionable.
Frequently Asked Questions (FAQ)
Should I replace my thermostat and fan clutch with the water pump?
Yes, it is highly recommended. You have to drain the coolant and remove the fan clutch to get to the water pump anyway. Replacing the thermostat and fan clutch at the same time is cheap insurance and saves you from having to do the job twice.

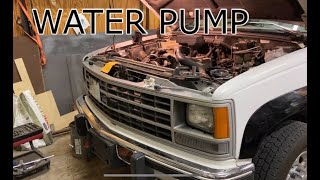

🎬 Follow this walkthrough for replacing a 6.5L turbo diesel pump.What kind of coolant should I use in my 1991-2002 C3500HD?
These trucks originally used traditional green Inorganic Acid Technology (IAT) coolant. It is important to use the correct type of coolant and to mix it 50/50 with distilled water. Using the wrong coolant can cause corrosion and damage to your new water pump and cooling system. Some GMB pumps were reportedly sensitive to high-silicate coolants, which were common in this era, so using a modern, compatible formula is a good idea.
Do I need special tools for the replacement?
The most important special tool is a fan clutch removal tool set. While it's sometimes possible to remove the large nut with a big wrench and a hammer, the proper tool holds the pulley in place and makes the job much easier and safer. You will also need a torque wrench to properly tighten the water pump bolts to 30 ft-lbs.
Do the water pump bolts need sealant?
Yes. On these GM engines, the water pump bolts go through into the engine's water jackets. You must apply a high-temperature thread sealant to the bolt threads to prevent coolant from leaking past them.
Helpful Videos
Technical Specifications
OEM Part Numbers: 88894035 12456231 8892690
The water pumps for the 1991-2002 C3500HD are mechanical, belt-driven pumps. They use a reverse rotation design to work with the serpentine belt system. Always confirm the correct part for your specific engine, as housing design, bolt pattern, and outlet positions vary.
