A Mechanic's Guide to the 1991-2002 GMC C3500HD Brake Light Switch
Fixing your brake lights and cruise control often starts with this simple but critical part located on your brake pedal.
- A faulty brake light switch is a common cause for both brake light failure and cruise control problems.
- Symptoms can include lights not working, lights staying on, or intermittent cruise control function.
- Replacement is a simple, DIY-friendly job that requires basic tools and about 30 minutes.
- For best results, choose a quality aftermarket brand like ACDelco or Standard Ignition to avoid premature failure.
Is Your Brake Light Switch Failing?
A bad brake light switch on a C3500HD can cause several frustrating and dangerous problems. The most obvious sign is if your brake lights don't turn on when you press the pedal, which is a major safety hazard. Conversely, the switch can fail in the 'on' position, leaving your brake lights stuck on and draining your battery overnight. 🎬 Watch this video to identify common symptoms of a failing switch. Because this switch also controls the cruise control, a common symptom is the cruise control suddenly not working or turning off unexpectedly. In some cases, a faulty switch can even prevent the torque converter from locking up, which might feel like the truck isn't shifting into its final gear 🎬 Learn how a faulty switch can trigger transmission codes and issues. on the highway.
Safety First: A Critical Part
If your brake lights are not working, your truck is not safe to drive. It's illegal and dramatically increases your risk of being rear-ended. Always confirm your brake lights are functioning before driving, especially if you suspect a problem with the switch.
Choosing the Right Aftermarket Brake Light Switch
For a workhorse like the C3500HD, reliability is key. While OEM parts are an option, quality aftermarket brands provide excellent value and performance. Here’s a breakdown of available brands:
- ACDelco: As the original equipment manufacturer for GM, ACDelco is often the go-to choice for a direct, reliable replacement. While some of their parts are now made globally, they are generally held to high standards and are a trusted option for ensuring proper function, especially with systems like cruise control.
- Standard Ignition (SMP): Standard is a well-respected aftermarket brand known for producing quality electrical components. Many professional mechanics use Standard parts and consider them a reliable alternative to OEM, sometimes even preferring their build quality on certain components.
- Rostra Powertrain: Rostra specializes in transmission and powertrain components, including various switches. They are an IATF-16949 & ISO-9001 certified manufacturer and are known to produce parts for original equipment manufacturers, indicating a focus on quality. While less of a household name than ACDelco, their products are generally considered a solid choice.
Pro Tip: OEM vs. Aftermarket Quality
For a simple but vital electronic part like this, sticking with a known, reputable brand is important. Forum discussions with GMT400 and OBS truck owners often highlight that very cheap, unbranded switches can fail quickly or be faulty out of the box. Choosing ACDelco or Standard Ignition is a safe bet for long-term reliability.
Typical Costs for a New Brake Light Switch
| Part Type | Price Range |
|---|---|
| New Aftermarket (ACDelco, Standard, Rostra) | $13.59 - $36.92 |
| New OEM (GM Genuine) | $25 - $50 |
| Shop Labor | $50 - $100 |
Frequently Asked Questions (FAQ)
Can a bad brake light switch drain my battery?
Yes. If the switch fails in the closed or 'on' position, it will keep the brake lights illuminated even when the truck is off, draining the battery.
Why did my cruise control stop working?
The brake light switch is designed to immediately cancel the cruise control when you touch the brake pedal. If the switch is faulty, the cruise control system may not engage at all because it's receiving a false signal that the brakes are being applied.
Is replacing the brake light switch a difficult job?
No, it's a relatively easy job, but can be uncomfortable. The switch is located up under the dashboard on the brake pedal assembly. It's held in place by a small clip or bolt and can be swapped out with basic hand tools in under 30 minutes. 🎬 See how to quickly replace the brake switch on your truck. The most difficult part is often working in the tight space of the footwell.
Are there any recalls for the brake light switch on this truck?
No specific recalls were found for the brake light switch itself on the 1991-2002 GMC C3500HD. However, GM has issued recalls for brake pressure switches on other truck models, which can sometimes be confused with the pedal switch. Always verify the part you are replacing.
Helpful Videos

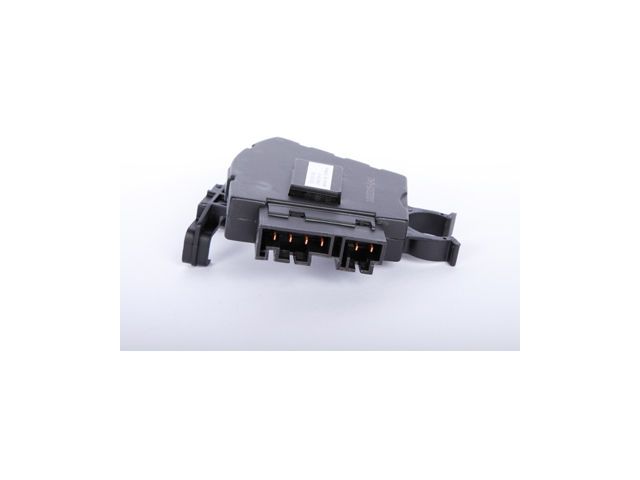

Technical Specifications
OEM Part Numbers: 12450076 15961519
The brake light switch for the 1991-2002 GMC C3500HD is a multi-function switch located on the brake pedal support bracket. It typically features multiple electrical contacts to control the brake lights, cruise control disengagement, and torque converter clutch signal. It is activated by the movement of the brake pedal arm.
