Guide to 1991-2002 GMC C3500HD Disc Brake Hardware Replacement
Ensure your heavy-duty truck stops safely and quietly by replacing worn brake hardware.
- Always replace the disc brake hardware kit when you replace your brake pads to ensure proper performance and prevent noise.
- For a heavy-duty C3500HD, choose a quality aftermarket kit from brands like Raybestos or Centric, preferably with stainless steel components for durability.
- Symptoms of failing hardware, like noise or pulling, are serious safety concerns and should be addressed immediately.
- Properly lubricating caliper slide pins and installing new rubber boots from the kit is critical to prevent calipers from seizing.
Is Your Brake Hardware Failing?
Worn or weak brake hardware can cause problems that feel like a bad brake pad or rotor. Because your C3500HD is a heavy-duty vehicle, the stress on these small parts is immense. Ignoring them can lead to bigger issues and unsafe driving conditions. Look for these common symptoms.
Why You Must Replace Hardware with Every Brake Job
Reusing old brake hardware on your C3500HD is a bad idea. The clips and springs are constantly heated and cooled, which causes them to lose their tension over time. An independent study found that 100% of used brake clips failed to meet original equipment (OEM) specifications. Out-of-spec hardware can cause new pads to bind, drag on the rotors, and wear out prematurely. For the small cost of a new kit, you ensure your entire brake job performs as it should, reducing noise and extending the life of your new pads and rotors.
Choosing the Right Aftermarket Hardware Kit
For a workhorse like the C3500HD, not all hardware kits are created equal. Quality matters. The brands available can be grouped into tiers based on quality and materials.
- Professional Grade (Raybestos, Centric): These brands are well-regarded in the industry and often used by professional mechanics. They are known for using high-quality materials, often including stainless steel components that resist corrosion better than the standard zinc-plated steel. For a heavy-duty application, choosing a kit from one of these brands is a solid investment in durability and performance.
- Standard Replacement (Dorman, Carlson, Dynamic Friction): These brands offer reliable, OE-style replacements that get the job done. They are a good, budget-friendly choice for daily driving and standard use. While Dorman is a common aftermarket brand, Carlson is known for its focus on brake hardware and has conducted studies on the importance of replacement. Dynamic Friction (DFC) is noted for using quality materials like stainless steel in many of its kits.
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket Hardware Kit | $11.61 - $63.07 |
| Shop Labor for Installation (per axle) | $100 - $200 |
Frequently Asked Questions (FAQ)
Do I really need to replace the hardware with every brake job?
Yes, it is highly recommended. The clips and springs are heat-cycled thousands of times, causing them to lose tension. Reusing them can lead to noise, binding, and uneven wear on your brand new pads and rotors. For the low cost of a kit, it's cheap insurance for your entire brake system.
What's the difference between front and rear hardware kits?
Front and rear brake systems on the C3500HD are different and their hardware kits are not interchangeable. The rear axle on these trucks is a full-floating design, which involves a more complex setup than the front. Always ensure you are purchasing the correct kit for the specific axle you are working on.
What happens if I don't replace the little rubber boots for the caliper pins?
The caliper pin boots protect the slide pins from dirt, water, and debris. If a boot is torn or missing, the slide pin grease will wash away, and the pin can seize from corrosion. A seized slide pin is a very common cause of a stuck caliper, which leads to severe uneven pad wear, pulling to one side, and potential rotor damage. Most quality hardware kits include new boots.
Are stainless steel clips really better?
Yes. Stainless steel offers much better resistance to rust and corrosion compared to the standard plated steel used in cheaper kits. This is especially important for a heavy-duty truck that may see harsh weather and road salt. Corrosion on the hardware can cause brake pads to bind in the caliper bracket, leading to performance issues.
Technical Specifications

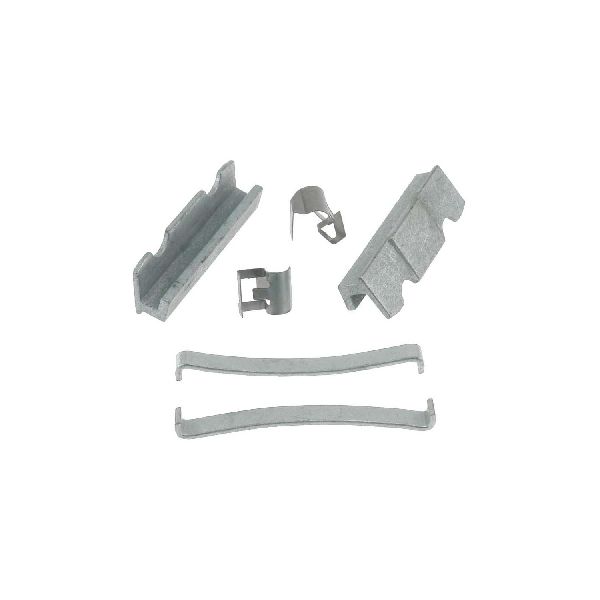

Kit components typically include anti-rattle clips, caliper guide pin boots, and guide pin bolts. Higher-quality kits feature stainless steel clips for improved corrosion resistance. Kits are specific to front or rear axles.
