GMC C3500HD Door Lock Actuator Guide: 1991-2002
Having trouble with your power locks? Here’s what you need to know before you buy a replacement actuator.
- Actuator failure is a common wear-and-tear issue on 1991-2002 C3500HDs; it is not a safety-critical repair.
- Aftermarket parts are the primary option, with brands like Continental and Standard Ignition offering high quality.
- Replacement is a straightforward DIY job that takes about an hour and requires basic tools.
- Ensure you order the correct part for the driver (LH) or passenger (RH) side, as they are not interchangeable.
Is Your Door Lock Actuator Failing?

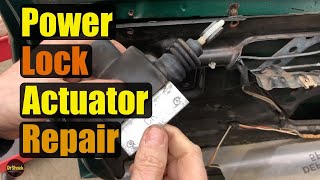

On a workhorse truck like the 1991-2002 GMC C3500HD, parts like the door lock actuator see a lot of use. After decades of locking and unlocking, the small motor inside can burn out or the plastic gears can strip. The most common sign of failure is when a door stops responding to the power lock switch. You might hear a buzzing or clicking sound from inside the door, or it might just be silent. Often, they become weak, especially in cold weather, and may struggle to lock or unlock the door completely. Failure is usually gradual, starting as an intermittent problem before the actuator quits 🎬 Learn how to restore your power locks with this repair. for good.
Known Issues for This Vehicle
For the 1991-2002 GMT400 truck platform, which includes your C3500HD, door lock actuator failure is a very common problem due to age and wear. There are no specific recalls or widespread Technical Service Bulletins (TSBs) for this part on this model year range, as the issue is considered normal wear and tear. The original actuators were riveted to the door, and sometimes these rivets can fail, causing the actuator to fall inside the door panel. This can stop the window from rolling down all the way and will also cause the power lock to stop working.
Common Ordering Mistake
The actuators for the driver's side (Left Hand) and passenger's side (Right Hand) are different parts. They are not interchangeable. Always verify you are ordering the correct side for your truck. Some aftermarket kits may include both, but single parts are side-specific.
Choosing the Right Aftermarket Actuator
Since original GM and ACDelco actuators for this truck are largely discontinued, the aftermarket is your primary source for new parts. Quality can vary, so it's important to choose a reputable brand.
- Premium Brands (Continental, Standard Ignition): Continental is often an Original Equipment Manufacturer (OEM) for many car brands, meaning their parts are built to the same standards as the factory ones. Standard Motor Products (SMP) is another top-tier brand known for durable electrical components that meet or exceed OEM specifications. These brands are a solid choice for longevity and reliability.
- Value-Oriented Brands (Replacement): Brands like Replacement, Dorman, and SKP offer a more budget-friendly option. They are designed to be a direct fit and provide a functional repair. While they may not have the same long-term durability as premium brands, they are a cost-effective solution for getting your power locks working again.
Aftermarket Cost Overview (1991-2002 C3500HD)
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket Actuator | $46.59 - $230.18 |
| Shop Labor for Installation | $80 - $150 |
Pro Tip: DIY Installation
Replacing the door lock actuator is a very manageable job for a DIY mechanic. The process involves removing the interior door panel, carefully peeling back the plastic weather shield, and then unbolting the actuator. The original parts are often held by rivets that need to be drilled out, while replacement parts typically use bolts. The whole job can usually be done in about an hour with basic hand tools.

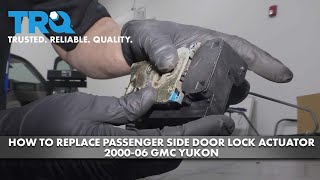

🎬 Watch this step-by-step guide for replacing your truck's actuator.Frequently Asked Questions
Do I need to replace all the actuators at once?
No, you only need to replace the one that has failed. However, since they are all the same age, it's not uncommon for another one to fail soon after. If you're already taking the door panel off, some owners choose to replace other components like the window regulator 🎬 See how to fix both the door lock and window. at the same time.
Will a bad actuator drain my truck's battery?
It's very unlikely. A completely failed actuator draws no power. A failing one that just buzzes or clicks only draws power for the brief moment you press the lock/unlock button. It will not cause a parasitic drain.
Is the actuator the same for the front and rear doors?
For models that have them, the front and rear doors on the same side (e.g., Right Front and Right Rear) often use the same actuator part number. However, always confirm the fitment for your specific door before ordering.
What tools are needed for the replacement?
You will typically need a set of trim removal tools, Phillips and flathead screwdrivers, a socket set (often 7mm and 10mm), and possibly a drill to remove the original rivets. Torx bits (like T27 and T10) may also be required for the latch assembly screws.
Helpful Videos
Technical Specifications
OEM Part Numbers: 22071946 (RH) 22071947 (LH)
This is a vehicle-specific, 2-pin electrical connector door lock actuator motor. It is side-specific (Left Hand or Right Hand).
