Replacing the Engine Oil Pan on Your 1991-2002 GMC C3500HD
Stop that messy leak and protect your engine with the right replacement oil pan for your heavy-duty truck.
- The biggest factor determining replacement cost and difficulty is whether your C3500HD is 2WD or 4WD.
- Rust and stripped drain plugs are the most common reasons for replacement; OEM pans are hard to find, making aftermarket the go-to choice.
- Before replacing the pan, verify the leak isn't coming from a valve cover gasket or oil cooler line higher up on the engine.
- Always use a new one-piece gasket and consider replacing the oil pump and pickup screen while the pan is off for peace of mind.
Is Your C3500HD's Oil Pan Failing?
On a workhorse like the C3500HD, the oil pan is built tough, but after years of service, it can fail. The two most common reasons are rust, especially in northern climates, and stripped drain plug threads from decades of oil changes. Here are the signs that your oil pan needs attention:
- Oil Puddles: The most obvious sign is finding dark brown or black oil spots on the ground where you park.
- Low Oil Light: If the leak is bad enough, your oil level will drop and trigger the low oil pressure warning light on your dashboard.
- Burning Oil Smell: Oil leaking onto hot exhaust pipes will burn off, creating a distinct and unpleasant smell while you drive.
- Stripped Drain Plug: If the drain plug just spins and won't tighten, the threads in the pan are stripped, and the pan needs to be replaced.
- Visible Damage: Look under your truck. You might see the pan is dented, scraped, or covered in a film of oily grime and rust.
Confirm the Leak Source First!
Before you buy a new pan, make sure the leak is actually from the oil pan or its gasket. On these GMT400 trucks, oil leaks from higher up on the engine, like the valve cover gaskets or oil cooler lines, can drip down and make it look like the pan is the problem. Clean the engine block above the pan and run the engine to pinpoint the exact source of the leak.
🎬 Watch: How to identify and fix common oil filter housing leaks.Choosing the Right Aftermarket Oil Pan
Original GM oil pans for this generation of truck are largely discontinued or very hard to find new. This makes a new aftermarket part the most practical and common choice. Aftermarket quality is generally good, and some pans even offer improvements over the original, like thicker steel or better anti-rust coatings. Here’s a breakdown of available brand tiers:
- BETTER (Enhanced Durability): ATP, Pioneer Cable

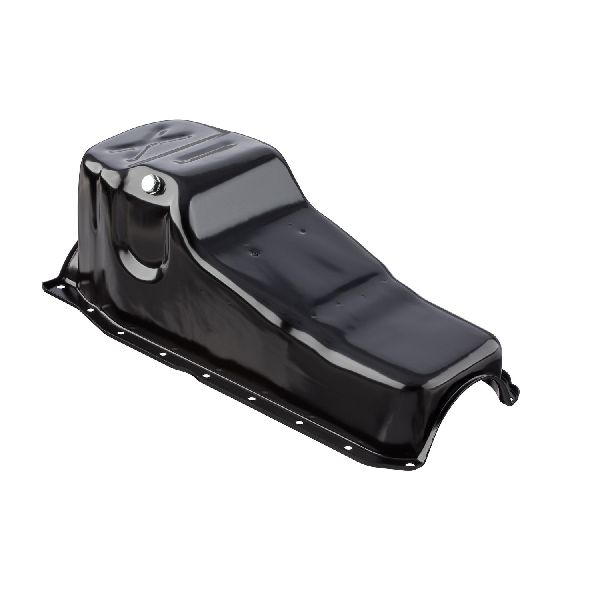

In forum discussions, users report that ATP pans can be made from thicker, heavier steel than the original and have better corrosion resistance. They are often described as a "beefy" and high-quality replacement. Pioneer is also regarded as a quality OE replacement alternative, made with heavy-gauge materials. - GOOD (Standard Replacement): Dorman, Spectra

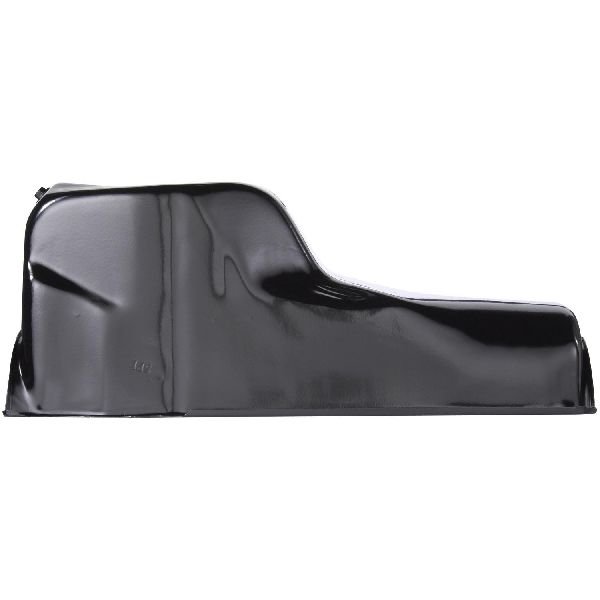

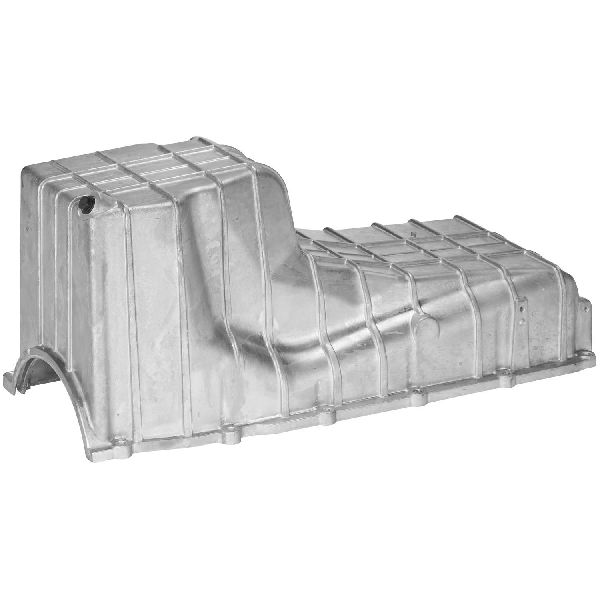

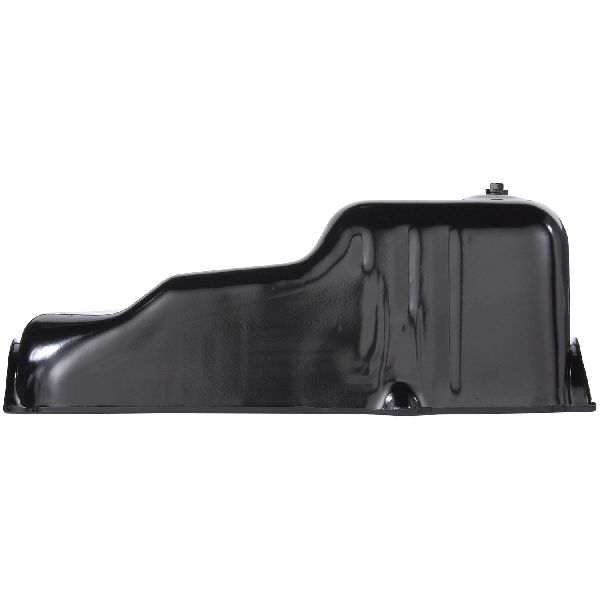

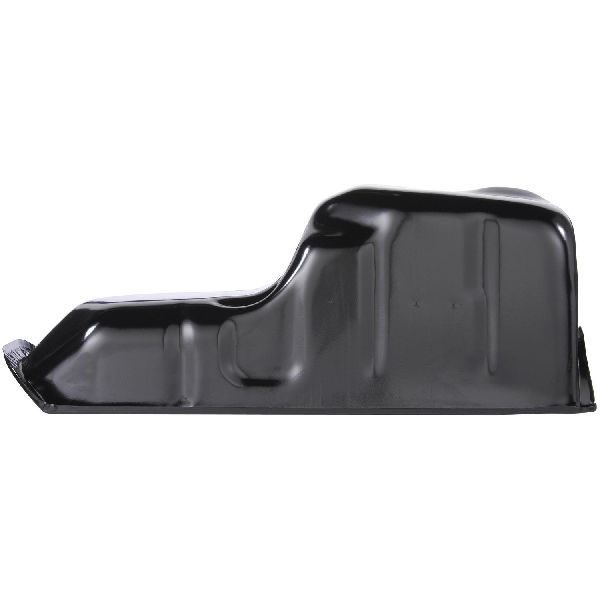

These are widely available brands that offer a direct-fit, cost-effective solution. Reviews are generally acceptable for a standard repair. Some users note that Dorman and Spectra pans can sometimes appear identical, suggesting they may come from the same factory. While most find they fit well, be aware that aftermarket pans may come with a drain plug that requires a different size socket than the original. - ECONOMY: Skyward

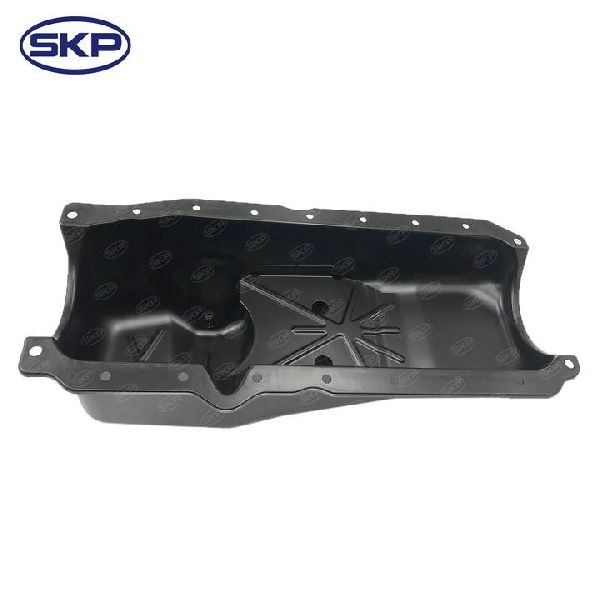

While Skyward is an available brand, there is little specific feedback from owners or mechanics regarding its quality or fitment for the C3500HD. It is generally considered an economy-tier option.
Cost to Replace a 1991-2002 GMC C3500HD Oil Pan
The cost of this job depends almost entirely on whether your truck is 2WD or 4WD. The 4WD system's front differential blocks access to the pan, drastically increasing labor time.
| Part / Service | Estimated Cost |
|---|---|
| New Aftermarket Oil Pan | $65 - $258 |
| Shop Labor (2WD) | $250 - $550 |
| Shop Labor (4WD) | $900 - $1,600+ |
| Total Installed (2WD) | $315 - $808 |
| Total Installed (4WD) | $965 - $1,858+ |
Costs are estimates and can vary based on your location and specific truck configuration.
Pro Tip: Engine Lifting May Be Required
Even on 2WD models, trucks with the 7.4L (454) V8 engine will likely require the engine to be unbolted from its mounts and lifted by an inch or two to create enough clearance to remove the pan. 🎬 See how to lift the 454 engine for oil pan removal. This adds time and cost to the job.
Frequently Asked Questions
Does the new oil pan come with a gasket?
No, aftermarket oil pans do not include a gasket. You must buy one separately. Always choose a new, one-piece oil pan gasket for a reliable, leak-free seal. The old four-piece style gaskets are much more prone to leaking.
My original gasket was held on with rivets. What do I do?
This was common from the factory to speed up assembly. You can simply drill or knock the small rivets off the old pan to remove the gasket. The new gasket does not need to be riveted; the pan bolts will hold it securely in place.
Why is the replacement quote for my 4x4 so much higher?
On 4x4 models, the front axle and differential assembly are mounted directly under the engine, blocking access to the oil pan. A mechanic has to spend several hours removing the entire front differential just to get to the pan bolts, which is why the labor cost is significantly higher.
Can I just fix my stripped drain plug?
There are kits to re-thread the hole or use an oversized plug, but these are often temporary fixes that can fail. Given the age of these trucks and the high risk of rust, replacing the entire pan is the most reliable and permanent repair.
Should I replace the oil pump at the same time?
Since the oil pan has to be removed to access the oil pump, this is the perfect time to do it. If your truck has high mileage or you've noticed low oil pressure, replacing the oil pump and pickup screen is excellent preventative maintenance.
🎬 Watch this walkthrough on replacing the oil pump and pickup screen.Helpful Videos
Technical Specifications
Material: Stamped Steel. Gasket Included: No. Drain Plug Included: Yes. Capacity and design are specific to engine (5.7L, 7.4L, 6.5L Diesel) and drivetrain (2WD/4WD).
