Engine Water Pump Guide for the 1991-2002 GMC C3500HD
Keep your heavy-duty GMC's engine cool and prevent serious damage by choosing the right replacement water pump.
- A leaking, noisy, or overheating water pump must be replaced immediately to avoid catastrophic engine failure.
- For the 6.5L Diesel, consider upgrading to a later model year water pump for improved cooling flow and reliability.
- Always buy a NEW aftermarket pump from a reputable brand like ACDelco, Gates, or Dayco; avoid remanufactured parts.
- It is highly recommended to replace the fan clutch, thermostat, and radiator hoses at the same time as the water pump.
Is Your Water Pump Failing? Common Symptoms
A failing water pump is a serious issue that can lead to major engine damage if ignored. Watch for these warning signs in your C3500HD:
- Coolant Leaks: This is the most common sign. You may see puddles of green, orange, or pink fluid under the front of your truck. A leak from the pump's "weep hole" is a sure sign the internal seal has failed.
- Engine Overheating: If your temperature gauge is climbing into the red, the water pump may not be circulating coolant effectively. This is especially dangerous for the hard-working engines in these trucks.
- Whining or Grinding Noises: A high-pitched whine or a rough grinding sound from the front of the engine can mean the pump's internal bearings are worn out. This noise often changes with engine speed.
- Wobbly Pulley: If you can see the water pump pulley wobbling while the engine is off, the bearing is failing and the pump needs immediate replacement.
Don't Ignore the Signs
Continuing to drive with a bad water pump can cause your engine to overheat, leading to catastrophic damage like a blown head gasket or a cracked engine block. These repairs are far more expensive than replacing the water pump itself.
Choosing the Right Aftermarket Water Pump
For a workhorse like the C3500HD, you need a dependable water pump. While an OEM part from the dealer was once the standard, many aftermarket brands now offer comparable or even better quality for less money. Here’s a breakdown of available brands to help you choose.
Tier 1: Premium & OE-Quality Brands
These brands are known for their quality and are often trusted by professional mechanics. They are a solid choice for a truck that you depend on for heavy use.
- ACDelco: As GM's parts division, ACDelco is the closest you can get to the original factory part. Many owners consider it their first choice. However, be aware that ACDelco has different quality lines; their "Professional" series is a good aftermarket option, while their "OE" line is the original factory part.

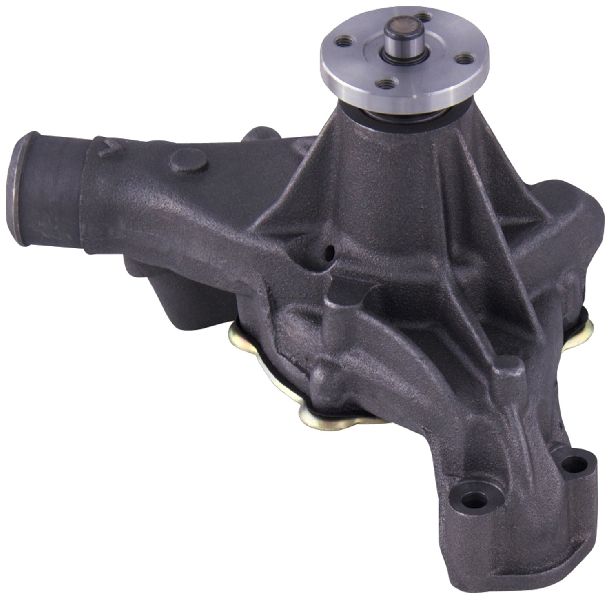

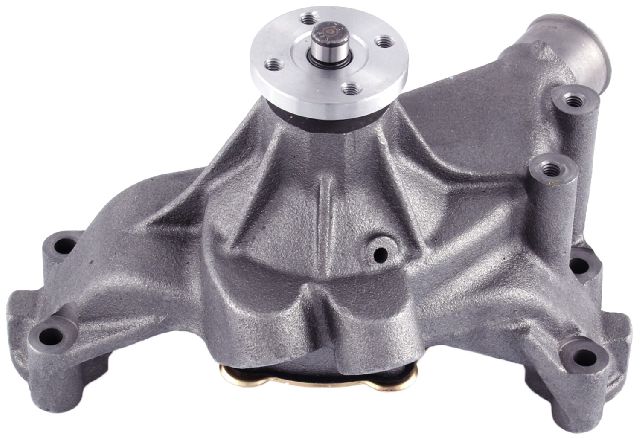

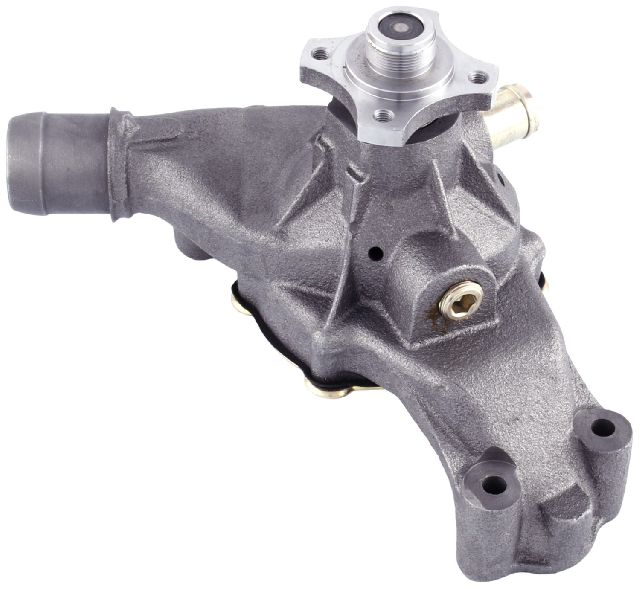

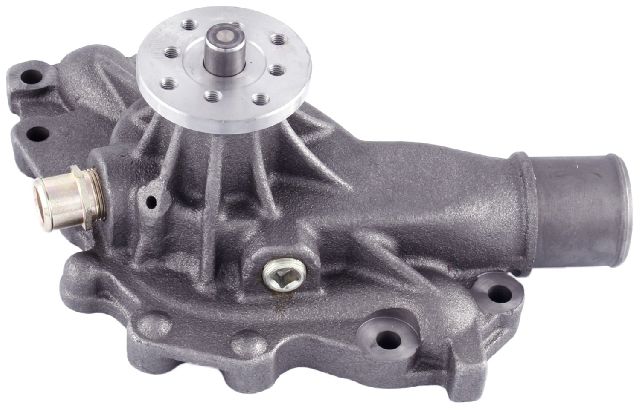

- Gates: Gates is a highly respected brand, especially known for cooling system components and belts. Many mechanics trust Gates for its reliability and consider it a top alternative to ACDelco.
- Dayco: With over a century in the business, Dayco is another strong contender known for quality components that meet or exceed original specifications. They often use upgraded materials compared to the original parts.
Tier 2: Reputable Aftermarket Brands
These brands offer a good balance of price and quality and are a popular choice for daily drivers and budget-conscious owners.

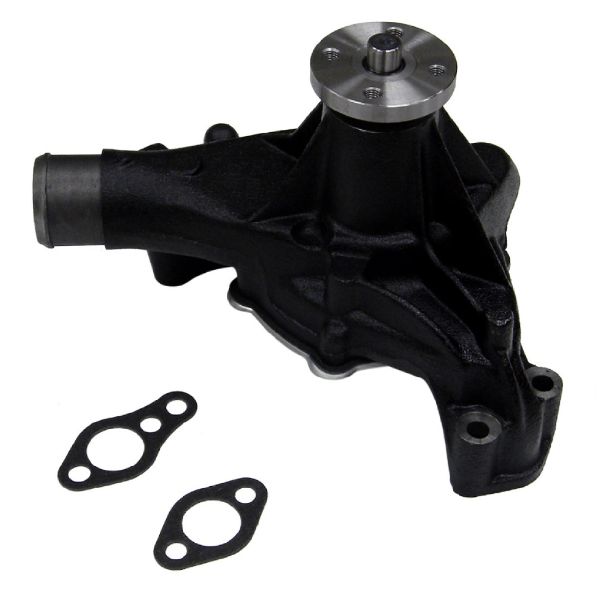

- GMB: GMB is a large manufacturer that produces water pumps for many car companies and other aftermarket brands. They are generally considered a reliable and affordable option.
Tier 3: Economy & Performance Brands
These brands may be more budget-friendly or performance-focused, but quality can be inconsistent. They might be suitable for a light-duty truck or if you're on a tight budget, but exercise caution.
- US Motor Works: Reviews for US Motor Works are mixed. While the company promotes its use of quality components, some users have reported issues with casting and fitment. It can be a gamble.
- Proform / PRW: These brands are often associated with performance and racing applications. While they may offer high-flow options, their suitability and longevity for a daily-driven work truck may vary.
Pro Tip for 6.5L Diesel Owners
The cooling system on the 6.5L Diesel was known to have issues with unbalanced coolant flow. Many owners upgrade to a water pump designed for the 2000+ model year engines, which provides higher flow and better balance, significantly improving cooling performance under load.
Aftermarket Water Pump Cost for 1991-2002 GMC C3500HD
| Brand Tier | Part Price Range | Best For |
|---|---|---|
| Tier 1 (ACDelco, Gates, Dayco) | $75 - $295 | Peace of mind and heavy-duty use |
| Tier 2 (GMB) | $60 - $120 | Reliable daily driving and good value |
| Tier 3 (US Motor Works, etc.) | $53 - $90 | Light use or tight budgets |
Note: Prices are estimates and can vary based on your specific engine (5.7L, 7.4L, or 6.5L Diesel) and the supplier.
Frequently Asked Questions
Should I replace my fan clutch with the water pump?
Yes, it is highly recommended. The fan clutch is mounted to the water pump, and you have to remove it anyway. Replacing both at the same time saves you from doing the job twice and ensures your entire cooling system is reliable.
Is a new aftermarket pump better than a remanufactured one?
Yes. Always choose a new water pump over a remanufactured one. New pumps use all-new components and are not subject to the potential hidden wear and tear of a rebuilt part. The price difference is usually small and well worth the added reliability.
Do I need special tools to replace the water pump?
For the most part, you can do the job with a standard set of mechanic's tools. However, a fan clutch wrench set will make removing the large fan clutch nut much easier. You will also need a drain pan for the coolant and a scraper for cleaning old gasket material off the engine block.
Are there any recalls for the water pump on my C3500HD?
No, searches of the National Highway Traffic Safety Administration (NHTSA) database did not find any water pump-specific recalls for the 1991-2002 GMC C3500HD. Any recalls found were for much newer models or different components.
Technical Specifications
OEM Part Numbers: 12708487 251-590 251-603
The water pump for the GMC C3500HD is a mechanical, belt-driven pump. The specific design varies between the 5.7L V8, 7.4L V8, and 6.5L V8 Diesel engines. Pumps for the 6.5L Diesel are known to have different flow rates depending on the model year, with later models offering higher flow. Most replacement pumps are made of cast iron or aluminum and come with necessary gaskets.
