A Guide to Selecting Spark Plugs for the 1991-2002 Saturn SL
Keep your Saturn's 1.9L engine running reliably by choosing the correct spark plugs.
- Use NGK V-Power (copper) spark plugs for best results; avoid platinum or iridium.
- Verify if you have the SOHC (SL1) or DOHC (SL2) engine, as they require different plugs.
- Always check and set the spark plug gap to 0.040 inches before installation.
- When changing plugs, inspect the spark plug wells for oil, which indicates a bad valve cover gasket.
Engine-Specific Spark Plugs
The 1991-2002 Saturn SL was equipped with a 1.9L 4-cylinder engine, but it came in two different versions. It is critical to identify which engine your car has before buying parts.
- SL1 models typically have the Single Overhead Cam (SOHC) engine.
- SL2 models have the more powerful Dual Overhead Cam (DOHC) engine.
These two engines require different spark plugs. Always confirm your vehicle's submodel (SL1 or SL2) to ensure you purchase the correct set.
🎬 Watch: Step-by-step spark plug replacement for the Saturn SL1Choosing the Right Aftermarket Spark Plug
For many cars, choosing a premium iridium or platinum spark plug is an upgrade. However, for the Saturn S-Series, the overwhelming consensus among long-time owners and mechanics is to use standard copper core spark plugs.
Copper vs. Platinum/Iridium: A Unique Case
The Saturn S-Series has a unique ignition system that does not use a dedicated camshaft position sensor. Instead, the engine control module (ECM) uses the signal from the #4 spark plug to determine cam timing. Using platinum or iridium plugs can interfere with this signal, potentially causing the computer to throw a camshaft position sensor error code and run poorly. For this reason, NGK copper plugs are highly recommended by the Saturn owner community.
Brand Recommendations
Based on owner experiences, not all spark plug brands perform the same in the 1.9L Saturn engine.
- Tier 1 (Highly Recommended): NGK is the most recommended brand. Saturn used NGK plugs from the factory, sometimes packaged in ACDelco boxes. The specific NGK V-Power (copper) plugs are widely considered the best choice for performance and reliability 🎬 See why these specific spark plugs are recommended for Saturns in this engine. Denso is another high-quality option that owners report success with.
- Tier 2 (Standard Replacement): ACDelco is the original equipment brand and a safe choice. Often, these are the same NGK plugs in a different box.
- Tier 3 (Budget Options): Brands like Autolite, Champion, and Bosch are available and will work, but they are not the preferred choice for the S-Series engine. Given the low cost of the recommended NGK copper plugs, most owners stick with them.
Known Issues Related to Spark Plugs

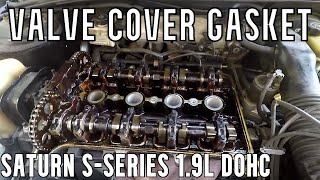

When changing your spark plugs, you may notice other issues. The most common problem on the Saturn 1.9L engine is oil leaking into the spark plug wells. This is almost always caused by a hardened or failed valve cover gasket and the spark plug tube seals that are part of it. If you pull a spark plug wire and see liquid oil in the tube, the valve cover gasket set needs to be replaced. 🎬 Watch: How to replace your valve cover gasket and seals Oil in the wells can cause the spark plug to fail, leading to a misfire.
Aftermarket Spark Plug Cost
| Category | Price Range |
|---|---|
| Budget Aftermarket (Copper/Nickel) | $3.46 - $8.00 per plug |
| Premium Aftermarket (Iridium/Platinum) | $8.00 - $27.31 per plug |
Pro Tip: Given the specific needs of the Saturn engine, the less expensive NGK copper plugs are the recommended choice over premium options.
Frequently Asked Questions (FAQ)
What is the correct spark plug gap for a Saturn SL?
The correct spark plug gap for both the SOHC and DOHC 1.9L engines is 0.040 inches (or 1.02 mm). Always verify the gap with a feeler gauge or gapping tool before installation, even if the plugs claim to be pre-gapped.
Why are copper spark plugs recommended for my Saturn SL?
Copper plugs are recommended because the Saturn S-Series ignition system uses the spark event at the #4 cylinder to provide cam timing information to the engine computer. Owners have found that more expensive platinum or iridium plugs can interfere with this reading, leading to potential running issues or fault codes.
What are the NGK part numbers for my Saturn SL?
According to Saturn enthusiast communities, the recommended NGK copper plugs are: SOHC (SL1): BKR4ESA-11 (Stock #7755). DOHC (SL2): BKR5ESA-11 (Stock #5643).
Why is there oil on my spark plug when I pulled it out?
If the top part of the plug (the porcelain and hex) is covered in oil, it's a sign that your valve cover gasket and its integrated spark plug tube seals have failed. This is a very common issue on Saturn S-Series models. The gasket set must be replaced to stop the leak and prevent future misfires.
Helpful Videos
Technical Specifications
OEM Part Numbers: 21035103
Spark Plug Gap: 0.040 in (1.02 mm) Torque Specification: 20 ft-lbs (27 N.m) Recommended SOHC Plug: NGK BKR4ESA-11 Recommended DOHC Plug: NGK BKR5ESA-11
