Nissan Sentra Knock Sensor Guide: 1991-2004
Is a bad knock sensor hurting your Sentra's performance? Here's what you need to know before you buy a new one.
- A bad knock sensor will trigger a P0325 code and cause poor acceleration and fuel economy.
- Replacement difficulty varies greatly by engine; it is very difficult on SR20DE engines but easier on QG18DE engines.
- Due to labor difficulty on some models, choosing a high-quality brand like Hitachi, NGK, or Delphi is strongly recommended.
- Always consider replacing the wiring sub-harness along with the sensor, as it's a common failure point.
Is Your Sentra Suddenly Sluggish? It Could Be The Knock Sensor.
If your 1991-2004 Nissan Sentra feels slow, hesitates during acceleration, or your Check Engine Light is on, a faulty knock sensor is a common culprit. This sensor plays a critical role in engine health and performance. When it fails, your car's computer defaults to a 'safe mode' to prevent damage, making the car feel sluggish and inefficient. The most common trouble code associated with this failure is P0325, which indicates a malfunction in the knock sensor circuit.
Choosing the Right Aftermarket Knock Sensor
For many parts, the cheapest option is fine. For the knock sensor on a Sentra, especially models with the SR20DE engine, choosing a quality part is crucial because the labor to replace it can be difficult. You don't want to do this job twice.
A Warning About Cheap Sensors
Extremely cheap, unbranded knock sensors from online marketplaces are a gamble. Forum members and mechanics report that these parts can be dead-on-arrival or fail within a few months. Given the difficulty of accessing the sensor on engines like the SR20DE, the small savings on the part is not worth the risk of repeating the labor.
Aftermarket Brand Quality Tiers
Not all aftermarket brands are created equal. Here’s a general breakdown of quality for your Sentra:
- OEM / Premium Aftermarket (Recommended): These brands are either the original manufacturer for Nissan or are known for equivalent quality and reliability. Because this can be a labor-intensive job, spending more for a quality part is a smart investment. Forum users often report that Hitachi was the original supplier for Nissan. NGK (under their NTK sensor brand) is also widely trusted to meet OEM standards.
- Hitachi
- NGK (NTK)
- Delphi
- Reputable Aftermarket: These brands offer a good balance of price and quality. They are generally reliable and a solid choice if a premium brand isn't in the budget.
- Standard Ignition (SMP)
- Beck Arnley
- Walker Products
- Economy Aftermarket: These brands meet basic fit and function requirements and can be a good option for the easiest-to-replace applications (like on the QG18DE engine) or if budget is the primary concern.
- Facet
- Global Parts
- True Tech
- Vemo
Installation: Why Engine Type Matters
The difficulty of this job depends entirely on which engine your Sentra has.
- SR20DE Engine (SE-R models): The knock sensor is located on the back of the engine block, underneath the intake manifold. It is very difficult to reach. Mechanics often access it from under the car, and it requires working in a tight space. 🎬 Watch this walkthrough for replacing the sensor on SR20DE engines. Because of the high labor, it is strongly recommended to use a premium brand sensor and also replace the short wiring harness that connects to it, as it is also prone to failure from heat.

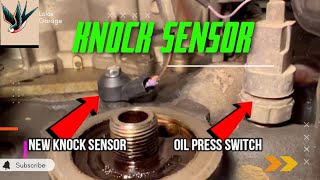

- GA16DE & QG18DE Engines (Base models): The sensor is still on the engine block, but it is generally easier to access than on the SR20DE. On the QG18DE (2000-2004 models), the sensor can often be replaced from underneath the vehicle without removing the intake manifold. 🎬 See how to replace the sensor on 2000-2006 Sentra models.
Pro Tip: Before you begin, spray the old sensor bolt with penetrating oil and let it soak. The sensor is located in an area exposed to a lot of heat, and the bolt can be difficult to break loose.
Cost to Replace a Nissan Sentra Knock Sensor
| Part Type | Part Cost | Labor Cost (Shop) |
|---|---|---|
| New OEM | $160 - $250 | $150 - $450 |
| New Aftermarket | $21 - $151 |
Note: Labor costs vary significantly based on your engine type. The SR20DE engine will be at the high end of the labor estimate, while the QG18DE will be at the low end.
Frequently Asked Questions
What is the main trouble code for a bad knock sensor?
The most common Diagnostic Trouble Code (DTC) is P0325, for "Knock Sensor 1 Circuit Malfunction". This means the engine's computer is not receiving a proper signal from the sensor.
🎬 Watch this guide to understand and fix the P0325 code.Can I drive with a bad knock sensor?
Yes, but it's not recommended for long. The engine will be in a low-power 'safe mode', resulting in poor acceleration and bad fuel economy. While this mode protects the engine from damage that a faulty sensor can't report, it makes the car sluggish and unresponsive.
Will a new knock sensor fix my car's hesitation?
If the hesitation is caused by a P0325 code and the ECU being in safe mode, then yes, replacing the sensor and clearing the code should restore performance. However, hesitation can have many other causes, such as issues with the fuel system or other sensors.
Should I replace the knock sensor harness at the same time?
It's highly recommended, especially on the SR20DE engine where access is difficult. The wiring harness is exposed to the same heat and vibration that causes the sensor to fail and is a common point of failure itself. Doing both at once is smart preventative maintenance.
Where is the knock sensor located on my Sentra?
It's bolted to the engine block, but the exact location and accessibility vary. On SR20DE engines, it's notoriously hard to reach under the intake manifold. On QG18DE engines, it's more accessible from underneath. Always verify the location for your specific year and engine before starting.
Helpful Videos
Technical Specifications
OEM Part Numbers: 22060-30P00 22060-53J10
Single bolt-on piezoelectric sensor, typically with a 1 or 2-pin electrical connector. Location and harness style vary by engine (GA16DE, SR20DE, QG18DE).
