A Guide to Replacing Spark Plug Wires on Your 1991-2005 Buick Park Avenue
Fix common misfires and restore smooth performance by choosing the right ignition wire set for your Park Avenue's 3.8L V6 engine.
- For best fit and longevity, choose OEM-grade brands like ACDelco or Delphi.
- Always replace spark plug wires as a complete set, preferably at the same time as your spark plugs.
- Accessing the three rear wires is difficult; rocking the engine forward can create necessary clearance.
- A check engine light with a P0300-P0306 code often points directly to a problem with plugs or wires.
Signs of Failing Spark Plug Wires
When the original spark plug wires on your Park Avenue begin to fail, the symptoms are often subtle at first but will get worse. The most common issue is an engine misfire, which can feel like a stutter or hesitation, especially when you accelerate. You might notice this more on damp or rainy days, as moisture can make it easier for a weak wire to leak voltage.
- Rough Idle: Your engine may shake or vibrate more than usual when you're stopped at a light.
- Poor Acceleration: The car may feel sluggish or down on power when you try to speed up.
- Lower Fuel Economy: When cylinders misfire, unburnt fuel is wasted, causing you to fill up more often.
- Check Engine Light: A failing wire set is a common cause for the check engine light, often with misfire codes like P0300 (random misfire) or P0301-P0306 (for a specific cylinder). 🎬 Watch: A visual guide to common bad wire symptoms.
Vehicle-Specific Issue: Fire Risk on Supercharged Models
Some 1997-2003 Park Avenue models with the 3.8L Supercharged (L67) engine were part of a safety recall (GM #07035). The issue involved a leaking valve cover gasket that could drip oil onto the hot exhaust manifold, potentially causing an engine fire that could spread to the plastic spark plug wire channel. The fix involved a new gasket and removing or replacing the wire retainers. While not a fault of the wires themselves, it is a critical safety concern related to the ignition system area.
Choosing the Right Aftermarket Wires
For a vehicle of this age, aftermarket spark plug wires offer excellent value. However, quality can vary. Sticking with a reputable brand is important for proper fit and long-term reliability on the 3800 engine.
| Tier | Brands | Quality & Performance Assessment |
|---|---|---|
| OEM Grade | ACDelco, Delphi | ACDelco was the Original Equipment (OE) supplier for your Buick. Delphi was the GM-owned company that often manufactured these parts, so their quality is considered identical. For guaranteed fit, performance, and longevity, these are the top choices. |
| Premium Aftermarket | NGK, Denso | NGK is highly recommended by mechanics and owners for its quality construction, excellent fit, and reliable performance on the 3.8L V6. Denso is another top-tier Japanese brand known for its ignition components. These are excellent alternatives to OEM. |
| Performance | MSD, Taylor Cable | These brands specialize in high-performance ignition systems. They often feature thicker wires (8mm or more) for better insulation. For a stock Park Avenue, these are generally considered overkill but are a quality option if you prefer performance-oriented parts. |
| Standard Aftermarket | Standard (SMP), Walker, Prenco | These brands provide a direct, budget-friendly replacement that meets factory specifications. They are a good functional choice if cost is the primary concern. |
Frequently Asked Questions (FAQ)
Should I replace my spark plugs at the same time?
Yes, it is highly recommended. The spark plugs and wires wear out together. Since replacing the three rear plugs and wires on the Park Avenue is difficult, you should replace both parts at the same time to avoid doing the job twice.

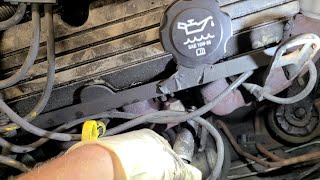

🎬 See this walkthrough for replacing 3800 plugs and wires.Why is it so hard to replace the rear wires?
The rear three cylinders (1, 3, and 5) are located close to the firewall, leaving very little room to work. A common technique used by mechanics is to unbolt the top engine mounts (often called 'dog bones') and use a ratchet strap to gently rock the engine forward a few inches. This creates enough clearance to access the rear plugs and wires.
🎬 Watch: How to reach those difficult rear spark plugs.Can I replace just one broken wire?
It's not recommended. Spark plug wires are sold in sets and should be replaced as a set. If one wire has failed due to age, the others are likely weak and will fail soon. Replacing them all at once ensures a balanced and reliable ignition system.
Do I need to use dielectric grease?
Yes. Applying a small amount of dielectric grease to the inside of each spark plug boot is a crucial step. It helps seal out moisture, prevents the boot from getting stuck to the spark plug, and ensures a good electrical connection. Most new wire sets include a small packet of grease.
Helpful Videos
Technical Specifications
OEM Part Numbers: 12192048 9746DD

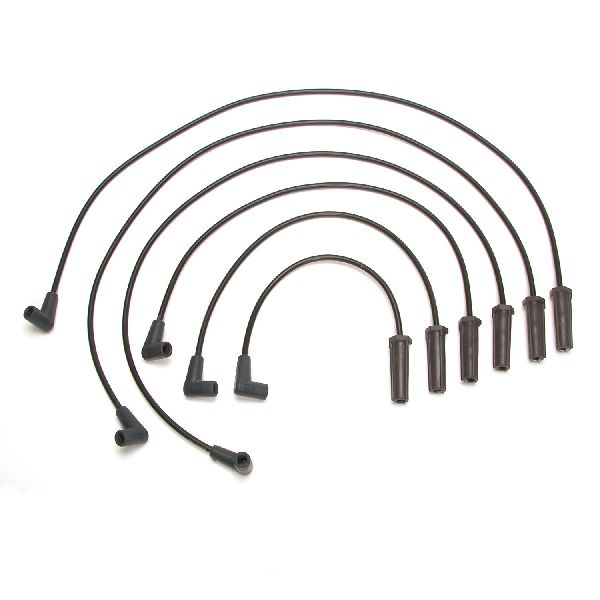

The 1991-2005 Buick Park Avenue with the 3.8L V6 engine uses a set of 6 spark plug wires. The original equipment wires are typically 7mm in diameter with a spiral core conductor for RFI suppression. The wires connect the three-coil waste spark ignition pack to the spark plugs.
