Guide to the 1992-1993 GMC Typhoon Engine Cooling Fan Clutch
Keep your Typhoon's high-performance turbo V6 cool by understanding how to spot and replace a failing fan clutch.
- A failing fan clutch is a common issue that causes overheating in traffic.
- For the Typhoon's turbo engine, choosing a heavy-duty aftermarket clutch is a smart upgrade.
- Symptoms include overheating at idle, a loud roaring noise, and reduced engine power.
- Replacement is a DIY-friendly task, but may require a special fan clutch wrench set.
Is Your Typhoon Overheating in Traffic? It Could Be the Fan Clutch.
The fan clutch is a common failure point on older vehicles, including the high-performance GMC Typhoon. Due to its age, the internal silicone fluid can leak out or the thermostatic spring can wear, causing it to stop working correctly. This can lead to two main problems: it either fails to engage, causing overheating, or it seizes, causing a loud roaring noise and robbing your engine of power.
Common Symptoms of a Bad Fan Clutch
- Engine Overheating at Idle: The temperature gauge climbs in stop-and-go traffic but returns to normal at highway speeds. This is the most classic sign of a clutch that isn't engaging.
- Loud Roaring Noise: A fan that sounds like a jet engine, especially when the engine is cold, indicates the clutch has likely seized in the locked position.
- Reduced Power and Fuel Economy: A seized clutch puts a constant drag on the engine, hurting performance and mileage.
- Poor A/C Performance at Idle: The A/C may blow warm at a stoplight because the fan isn't pulling enough air across the condenser.
Choosing the Right Aftermarket Fan Clutch
With original OEM parts likely discontinued or hard to find, the aftermarket is your primary source for a new fan clutch. For a special vehicle like the Typhoon, choosing a quality brand is important for performance and reliability. Aftermarket fan clutches for this truck are typically offered in standard-duty and heavy-duty versions. Given the turbocharged engine, a heavy-duty clutch is a wise upgrade for better cooling capacity.
Here’s a breakdown of the available brands:
- Hayden: Often considered a reliable aftermarket choice and has supplied OEM parts for various manufacturers. They offer heavy-duty options suitable for the Typhoon. Some users report their heavy and severe-duty clutches can be noisy because they engage more aggressively.

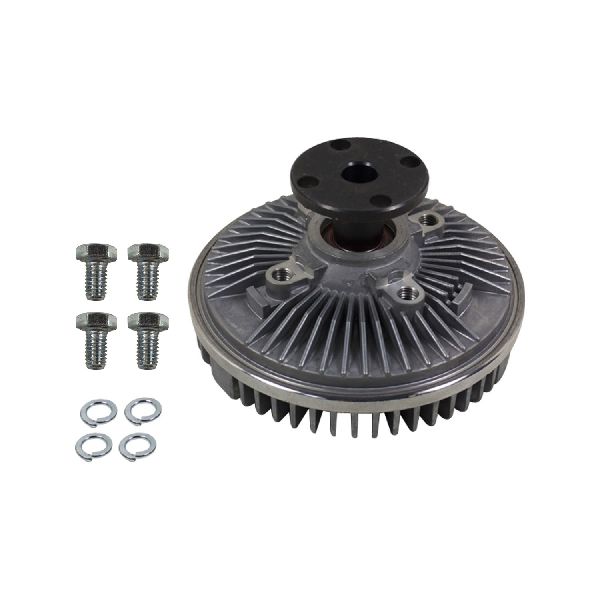

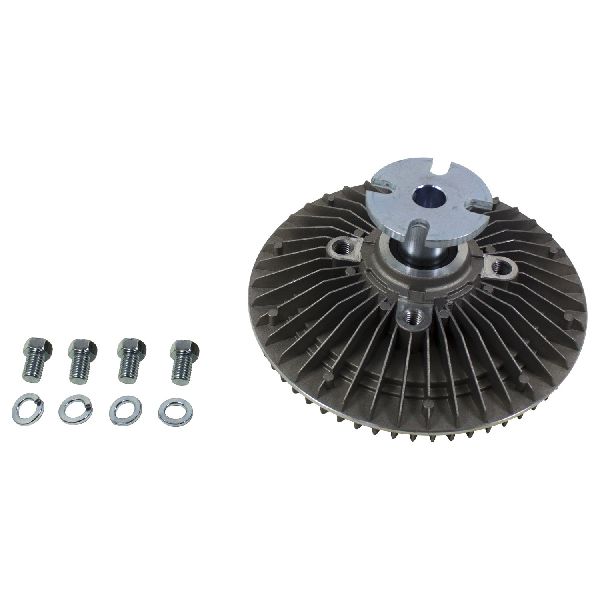

- GMB: A Japanese brand with a reputation for producing quality parts that meet or exceed OEM specifications. Forum users often have positive experiences with GMB for reliability.
- Four Seasons: This brand offers a wide catalog, but user reviews are mixed. Some have had good luck, while others recommend avoiding them in favor of other brands.
- US Motor Works: This brand manufactures its parts to meet OEM specs and is a common option available at many parts stores.
Pro Tip: Before replacing the clutch, test it. With the engine off and cool, try to spin the fan by hand. It should have some resistance and not spin freely for more than a few rotations. Also, check for any side-to-side wobble, which indicates a bad bearing.
Cost to Replace a 1992-1993 GMC Typhoon Fan Clutch
The cost to replace the fan clutch is reasonable, especially if you do the work yourself. The job is straightforward for a DIY mechanic with the right tools.
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Fan Clutch | $59 - $90 |
| Shop Labor | $96 - $170 |
| Total Estimated Cost | $155 - $260 |
Frequently Asked Questions (FAQ)
How do I test my fan clutch?
With the engine off and cool, try to spin the fan blade. It should not spin freely for more than 1-3 rotations; if it does, the fluid has likely leaked out. Next, try to wiggle the fan blade front-to-back. There should be no significant play or wobble. Finally, when the engine is hot and running, you should hear the fan engage and get louder, moving a large volume of air. If it stays quiet and the engine is overheating, it's likely not engaging.
Should I get a standard or heavy-duty fan clutch?
For the turbocharged GMC Typhoon, a heavy-duty fan clutch is recommended. It provides better cooling performance under load, which is critical for this high-output engine. Brands like Four Seasons and Hayden offer heavy-duty options.
Are there any recalls for the Typhoon fan clutch?
No, there are no recalls or specific Technical Service Bulletins (TSBs) from GMC or the NHTSA for the fan clutch on the 1992-1993 Typhoon. Failures are typically due to the age and mileage of the part.
Can a bad fan clutch damage my engine?
Yes. A fan clutch that fails to engage can lead to engine overheating, which can cause severe and expensive damage, such as warped cylinder heads or a blown head gasket. A seized fan clutch puts constant strain on the water pump bearing, potentially causing it to fail prematurely.
Technical Specifications
OEM Part Numbers: 22082085
Reverse Rotation, Thermal Clutch.
