A Guide to the 1992-1993 GMC Typhoon Starter Motor
Everything you need to know before replacing the starter on your turbocharged AWD SUV.
- A no-crank condition is the primary symptom of a failed starter; a 'crank-no-start' issue is likely fuel or spark related.
- Before replacing the starter, confirm the battery is fully charged and check for bad ground connections.
- Aftermarket brands like MPA offer reliable remanufactured options, while Proform provides new high-torque upgrades.
- Replacement is a feasible DIY job for those comfortable working under the vehicle, but access can be tight.
Is Your Typhoon's Starter Failing?
A no-start situation is a primary concern for any vehicle owner, especially with a high-performance, limited-production truck like the GMC Typhoon. When you turn the key, if you hear a single loud click, rapid clicking, or nothing at all, the starter motor is a likely culprit. These symptoms point to a failure in the starting system, which also includes the battery and alternator. It's important to confirm your battery is fully charged and the terminals are clean before condemning the starter.
Common Starting Problems on the Typhoon
While the starter motor itself can fail, Typhoon owners on forums also report other issues that can mimic starter problems. A "crank-no-start" condition, where the engine turns over but doesn't fire up, is often related to the fuel system (fuel pump, fuel pressure) or ignition system, not the starter motor. Some owners have also traced starting issues to a bad ground connection, which prevented the starter from getting enough power. Always check the simple things first.
No Recalls for This Part
There have been no recalls or technical service bulletins (TSBs) issued by GMC or the NHTSA specifically for the starter motor on the 1992-1993 GMC Typhoon. Recalls were issued for other issues like the transmission shifter and rear brakes, but not the starting system.
Choosing a New Aftermarket Starter
When replacing your Typhoon's starter, you have several options. Because new OEM parts from GM (ACDelco) can be difficult to find and expensive for a vehicle of this age, the aftermarket is the most common choice.

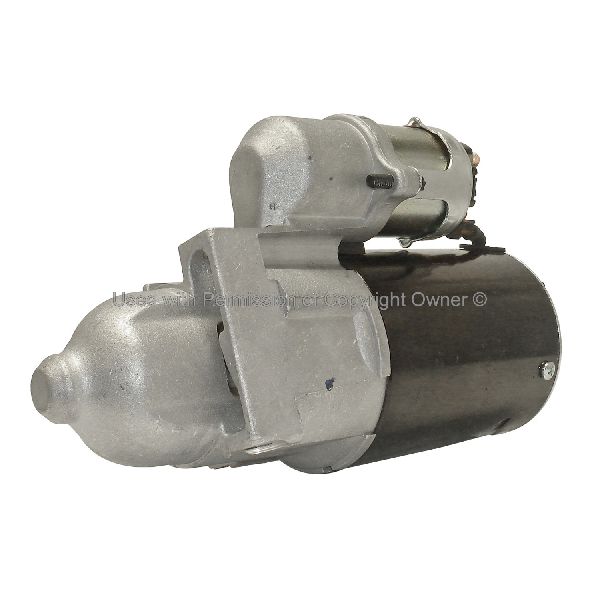

- Remanufactured Standard Replacement (MPA): Brands like MPA (Motor Parts of America) are major suppliers of remanufactured parts. These starters are rebuilt to meet or exceed original specifications. They are a cost-effective and reliable choice for daily driving and stock applications. MPA's Quality-Built line is noted for its testing process.

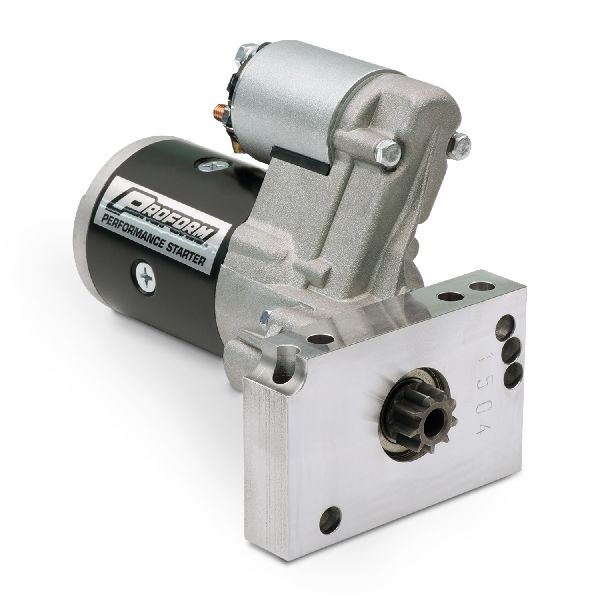

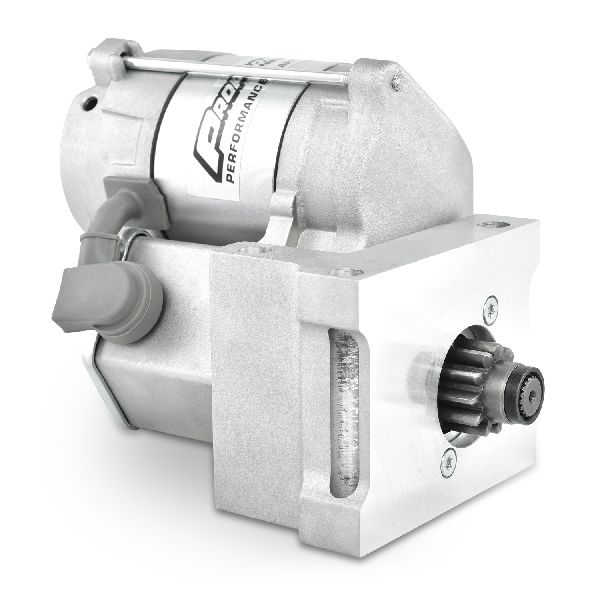

- New Performance/High-Torque (Proform): For modified Typhoons or owners seeking an upgrade, brands like Proform offer new, high-torque, gear-reduction starters. These are often smaller, lighter, and provide more cranking power than the original, which can be beneficial for high-compression engines or to overcome heat-soak issues.
Check for Shims: The 4.3L V6 may require shims to properly align the starter gear with the flywheel. Improper alignment can cause grinding noises and damage to both the starter and the flywheel. Check if your old starter used shims and install the new one with the same configuration.
Cost of Replacing a GMC Typhoon Starter
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket | $124 - $285 |
| Remanufactured Aftermarket | $120 - $220 |
| Shop Labor | $150 - $250 |
| Total Estimated Cost | $274 - $535 |
Cost estimates are for parts and labor and can vary by location and supplier.
Frequently Asked Questions
Is replacing the starter a DIY job?
For an experienced home mechanic, yes. The starter is on the passenger side of the engine. However, the AWD components and turbo plumbing can make access tight. You will need to safely raise and support the vehicle, disconnect the battery, and work underneath the truck. It is considered a moderately difficult job.
What's the difference between a new and a remanufactured starter?
A new starter is made with all-new components. A remanufactured starter is a used OEM core that has been disassembled, cleaned, inspected, and rebuilt with new internal wear items like brushes, bushings, and solenoids. High-quality remanufactured units from brands like MPA are tested to original standards and offer excellent value.
Do I need a special starter for the turbocharged engine?
No, a standard replacement starter designed for the 4.3L V6 in the 1992-1993 Typhoon will work correctly. However, some owners of modified vehicles opt for a high-torque starter for increased cranking speed and to combat heat-related starting issues.
My truck just clicks when I turn the key. Is it the starter?
A single, loud click usually means the starter solenoid is engaging but the motor isn't turning, pointing to a bad starter or a poor electrical connection. Rapid clicking often indicates a weak battery that doesn't have enough power to turn the starter motor. Always test the battery first.
Technical Specifications
OEM Part Numbers: 10455013 10455042 191362121
Fits 4.3L Turbocharged V6 Engine. May require shims for proper alignment. Some aftermarket options are gear-reduction, high-torque designs.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
