Engine Timing Set Guide for the 1992-1996 Cadillac Commercial Chassis
Keep your Cadillac's V8 running reliably by understanding its specific timing set needs before you buy.
- You must identify your engine before ordering: 1992-1993 models usually have the 4.9L V8, while 1994-1996 models have the 5.7L LT1 V8.
- For the 4.9L V8, upgrading to an all-metal timing set from a brand like Melling or Cloyes is essential to fix the common failure of the original nylon cam gear.
- For the 5.7L LT1 V8, always replace the water pump and Optispark distributor at the same time as the timing set to prevent future failures.
- Listen for a rattling noise from the front of the engine; it's the most common early warning sign of a worn timing chain.
Is Your Timing Set Failing?
A worn timing set on your Cadillac Commercial Chassis will give you clear warning signs. Because these vehicles were equipped with two different V8 engines during this period, symptoms can vary slightly, but some are universal. The most common sign for any engine is a rattling sound from the front of the engine, especially noticeable at idle or on a cold start. This is the sound of a stretched timing chain slapping against the inside of the timing cover. Other signs include a rough idle, engine misfires, and a general loss of power as the cam and crank timing becomes less accurate. In serious cases, you may find metal shavings in the engine oil during an oil change, which are particles from the worn gears and chain.
Engine Identification is Critical
Before buying any parts, you must identify your engine. The 1992-1993 models typically use the 4.9L V8, while the 1994-1996 models use the 5.7L LT1 V8. These engines use completely different timing sets. Ordering the wrong part is a common and costly mistake.
Choosing the Right Aftermarket Timing Set
For a vehicle of this age, OEM parts are often unavailable or extremely expensive. High-quality aftermarket brands offer an excellent alternative, and in some cases, an upgrade over the original factory components.
- Melling & Melling Select Performance: Widely regarded as a top-tier choice, Melling often meets or exceeds OEM specifications. Their all-metal gear sets are a significant upgrade for the 4.9L engine, which originally came with a failure-prone nylon-coated camshaft gear. For both the 4.9L and 5.7L, Melling is a trusted brand for durability.
- Cloyes: Another industry leader, Cloyes has a long history as an OEM supplier. Their timing sets are known for quality and reliability, making them a safe and dependable choice for a stock replacement. Like Melling, they provide durable all-steel replacements for the original nylon gears.
- COMP Cams: Primarily known for high-performance applications, COMP Cams offers exceptionally strong and precise timing sets. While perhaps overkill for a stock Commercial Chassis, their products are of very high quality and a good option if you're seeking maximum durability.
- INA: While a major OEM supplier, especially for European vehicles, INA is less commonly discussed for this specific application in enthusiast forums. Their components are generally well-regarded for quality, but Melling and Cloyes are the more frequently recommended brands for these Cadillac V8s.
"While You're In There" Pro Tips
Replacing the timing set is a labor-intensive job. It's smart to replace other components at the same time.
- For 4.9L V8: Always replace the water pump, water pump inlet gaskets, and the front crankshaft seal. Leaks from the timing cover gaskets are common, so a complete reseal is wise.
- For 5.7L LT1 V8: It is almost mandatory to replace the water pump and the Optispark distributor. The water pump is driven by the camshaft gear and sits in front of the Optispark. A failing water pump will leak coolant directly onto the distributor, causing it to fail. Replacing all three components at once prevents having to do the same job twice.
Frequently Asked Questions
What is the biggest known issue with the original timing set?
For the 4.9L V8 engine (1992-1993), the primary failure point was the original camshaft gear, which was coated in nylon. Over time, the nylon would become brittle, crack, and break off, causing the chain to slip and leading to incorrect timing or engine failure. Aftermarket sets from brands like Melling and Cloyes use all-steel gears to permanently fix this issue.
Is this a difficult job to do myself?
Yes, this is an advanced repair. It requires removing the harmonic balancer, water pump, and front engine cover, which can be very time-consuming. For the 5.7L LT1, you are also dealing with the Optispark distributor. For most owners, professional installation is recommended.
What is the "Optispark" on the 5.7L LT1 engine?
The Optispark is the distributor system used on the 1994-1997 LT1 V8. It is located on the front of the engine, behind the water pump, and is driven by the camshaft. Its location makes it vulnerable to coolant leaks from the water pump, which is a very common cause of failure.
Can I just replace the chain and not the gears?
This is not recommended. A worn timing chain will have caused corresponding wear on the teeth of the camshaft and crankshaft sprockets. Installing a new chain on old gears will cause the new chain to wear out very quickly and can lead to noise and inaccurate timing. Always replace the chain and gears as a complete set.
Technical Specifications

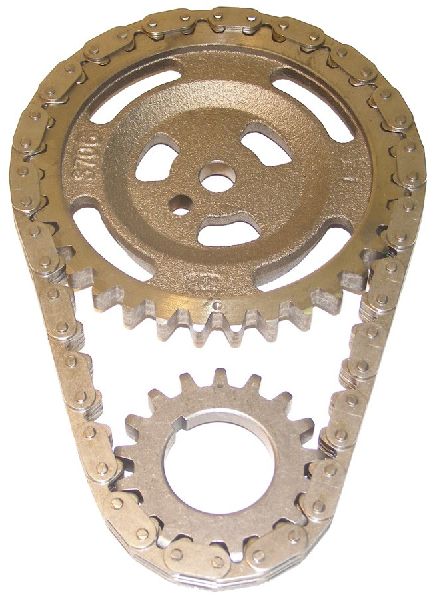

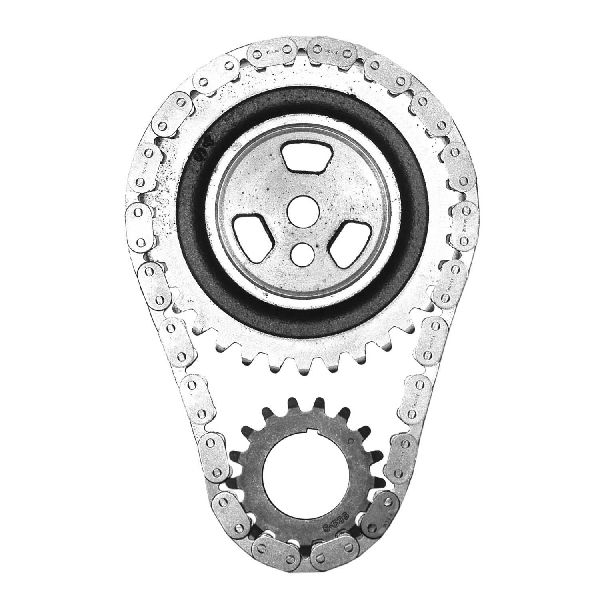

Fitment is specific to the engine type: Cadillac 4.9L PFI V8 (1992-1993) or Chevrolet-derived 5.7L LT1 V8 (1994-1996). Sets typically include a camshaft sprocket, a crankshaft sprocket, and a timing chain.
