A Practical Guide to Replacing the Water Pump on a 1992-1996 Chevrolet Astro
Keep your Astro's 4.3L V6 engine from overheating by choosing the right replacement water pump.
- A coolant leak from the front-center of the engine is the most common sign of a failing water pump.
- It is strongly recommended to replace the fan clutch, thermostat, and coolant hoses at the same time as the water pump.
- Choose a new pump from a quality brand like ACDelco, Gates, or GMB; avoid remanufactured parts to ensure reliability.
- Do not drive if you suspect a water pump failure, as rapid overheating can cause catastrophic engine damage.
Is Your Astro's Water Pump Failing?
A water pump failure on the 4.3L V6 is a common issue as these vans age. Because it's so critical, you should stop driving and address the problem immediately if you notice any signs of failure. Ignoring these symptoms can lead to severe engine damage, like a blown head gasket or cracked cylinder heads, which are far more expensive to fix.
Key Failure Symptoms
- Coolant Leaks: This is the most obvious sign. You may find a puddle of green or orange, sweet-smelling liquid under the front-center of your van. 🎬 Watch: See what a leaking Astro water pump looks like The leak often comes from a special 'weep hole' on the pump, which is designed to leak when the internal shaft seal fails. You might also see white or colored crusty residue on the front of the engine where coolant has sprayed and dried.
- Engine Overheating: If the temperature gauge on your dashboard suddenly starts climbing into the red, the water pump may have stopped circulating coolant. This can happen if the internal impeller fins corrode away or if the bearings seize, stopping the pump from spinning.
- Whining or Grinding Noise: A high-pitched whining or grinding sound coming from the front of the engine that gets louder as you accelerate is a classic sign of bad water pump bearings. You may also be able to see or feel that the pulley on the front of the pump is loose or wobbly.
Can I Drive with a Bad Water Pump?
No. Driving with a failing water pump is a serious risk. A lack of coolant circulation will cause the engine to overheat very quickly, leading to major engine damage. If you suspect a water pump issue, it's best to park the vehicle until it can be repaired.

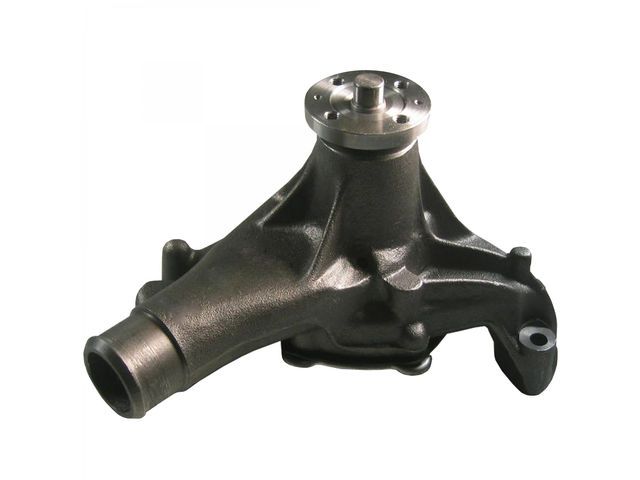

Choosing the Right Aftermarket Water Pump
For a vehicle like the 1992-1996 Astro, aftermarket water pumps offer excellent value. You don't necessarily need to pay dealership prices for an OEM part, as many aftermarket brands meet or exceed original quality. However, it's wise to avoid the cheapest options, as the labor to replace a failed pump is significant. Here’s a breakdown of reputable brands.
Brand Tiers for Your Astro
- Tier 1: Premium & OEM-Equivalent (ACDelco, Gates, Melling)
These brands are trusted by professional mechanics for their reliability and build quality. ACDelco is GM's own parts brand, making it a direct replacement. Gates is a leader in cooling system and belt components, and their pumps are known for durability. Melling has a long-standing reputation for quality internal engine parts and offers excellent water pumps. Choosing from this tier gives you the highest confidence in a long-lasting repair. - Tier 2: Quality & Value (GMB, Dayco, US Motor Works)
These brands provide a great balance of performance and price. GMB is often highlighted as a top value choice, with a history of being an OE supplier and consistently strong customer reviews. Dayco is another well-known name in belts and cooling parts, offering dependable pumps that meet factory specifications. US Motor Works often provides kits that include the fan clutch, offering convenience and value. - Tier 3: Economy (PRW, other store brands)
While these pumps are the most budget-friendly, their long-term reliability can be inconsistent. Given the labor involved in a water pump replacement on an Astro, it is generally recommended to invest in a Tier 1 or Tier 2 brand to avoid having to do the job again prematurely.
Pro Tip: Replace More Than Just the Pump
Since you'll have the cooling system drained and the front of the engine disassembled, it's the perfect time to replace other wear items. This is a common practice that saves you time and money down the road.
- Fan Clutch: The fan clutch bolts directly to the water pump. It's a common failure item and must be removed for the job anyway. It is highly recommended to replace it with the water pump.
- Hoses & Thermostat: Replace the upper and lower radiator hoses, the small bypass hose, and the thermostat. These parts are inexpensive and degrade over time.
- Coolant: Always refill the system with a fresh 50/50 mix of coolant and distilled water.
Frequently Asked Questions (FAQ)
Is this a difficult job to do myself?
For a DIY mechanic with some experience, this job is manageable. It requires basic hand tools, but the most difficult step is often removing the large nut that holds the fan clutch to the water pump shaft. This can require a special tool or a large wrench and a sharp hammer blow to break it loose. 🎬 See this removal guide for the 4.3L V6 engine Expect the job to take between 2-4 hours.
🎬 Watch: This condensed walkthrough shows the entire replacement processAre there any recalls on the 1992-1996 Astro water pump?
No. Searches of the National Highway Traffic Safety Administration (NHTSA) database show no recalls or common defect investigations for the water pump on this vehicle. Failures are typically due to age and normal wear and tear.
Should I buy a new or remanufactured water pump?
Always choose a new water pump from a reputable brand. Remanufactured (rebuilt) water pumps have a higher rate of premature failure, and the cost savings are not worth the risk of having to do the job a second time.
Does my Astro need a standard or reverse rotation water pump?
The 4.3L V6 in the 1992-1996 Astro with a serpentine belt system uses a reverse-rotation water pump. The smooth side of the belt rides on the pump pulley, spinning it in the opposite direction of the crankshaft. All pumps listed for this vehicle will be the correct reverse-rotation design.
Helpful Videos
Technical Specifications
OEM Part Numbers: 19418445 251-731 89018029
The 1992-1996 Chevrolet Astro with the 4.3L V6 engine uses a reverse-rotation water pump compatible with a serpentine belt system and a screw-on type fan clutch.
