Ford F-250 Crankshaft Position Sensor Guide for 1992-1996 Models
Understanding why this small sensor is critical for your F-250's engine, especially if you have the 7.3L Powerstroke diesel.
- For 7.3L Powerstroke engines (1994.5-1996), this sensor is critical; failure means the engine will not run.
- The most common symptom is a sudden engine stall followed by a no-start condition.
- It is strongly recommended to use the updated gray OEM Motorcraft sensor (F7TZ-12K073-B) for reliability.
- Replacement is very easy, requiring only a 10mm wrench/socket and about 15 minutes of time.
A Critical Part for Your F-250 Engine
If you own a 1992-1996 Ford F-250, especially one with the 7.3L Powerstroke diesel engine, the crankshaft position sensor (CPS) is a part you need to know about. While it's a small and relatively inexpensive sensor, a failure can leave you stranded without warning. This guide will walk you through its symptoms, how to choose the right replacement, and why not all aftermarket parts are created equal for this specific job.
Engine Type Matters: Powerstroke vs. Gas vs. IDI Diesel
The 1992-1996 F-250 came with several engines. The function and failure symptoms of the crankshaft sensor are very different depending on what's under your hood.
- 7.3L Powerstroke Diesel (1994.5-1996): This guide is most critical for you. The CPS is essential for engine operation. When it fails, the engine will stall and will not restart. This is the most common and well-known failure 🎬 Watch: A breakdown of common 7.3 Powerstroke CPS failure symptoms. associated with this sensor.
- 7.3L IDI Diesel (1992-1994): These engines use a mechanical injection system and do not rely on a crankshaft position sensor in the same way. Problems with stalling or no-starts are typically related to other components.
- Gasoline Engines (5.8L, 7.5L): Your truck has a crankshaft sensor, but its main job is to detect misfires for the OBD-II system. A failure will likely turn on the check engine light but is very unlikely to cause a stall or a no-start condition, as the primary ignition timing is controlled by the distributor.
Symptoms of a Failing Crankshaft Position Sensor
For 7.3L Powerstroke owners, the symptoms are usually sudden and severe. Because the sensor is known to fail without much warning, many long-time owners keep a spare in their glove box.
- Engine Stalls Suddenly: The most common symptom is the engine shutting off while driving as if you turned the key off.
- No Start Condition: After stalling, the engine will crank over but will not fire up.
- Erratic or No Tachometer Reading: While cranking the engine, watch the tachometer. If it doesn't move at all, it's a classic sign of a bad CPS. The computer isn't getting a signal to show engine RPM.
- Rough Idle or Misfiring: Before a complete failure, the sensor might send an erratic signal, causing the engine to run rough, shake, or misfire.
Choosing the Right Aftermarket Replacement Part
For most parts, aftermarket brands offer a good balance of quality and price. However, for the 7.3L Powerstroke's crankshaft position sensor, the consensus among mechanics and owners is strong: use the official Ford/Motorcraft part.
Tier 1: Best Quality (Recommended)
- Motorcraft (OEM): The original black-colored sensors were known to be faulty, leading Ford to issue a recall and release an updated, more reliable gray-colored sensor (Part #F7TZ-12K073-B). When buying a replacement, you should only buy this updated gray version. It provides the best reliability and longevity. Given that a failure leaves you stranded, the extra cost is a worthwhile investment in peace of mind.
Tier 2: Economy Quality

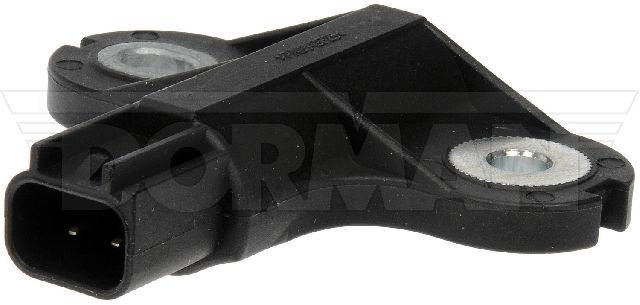

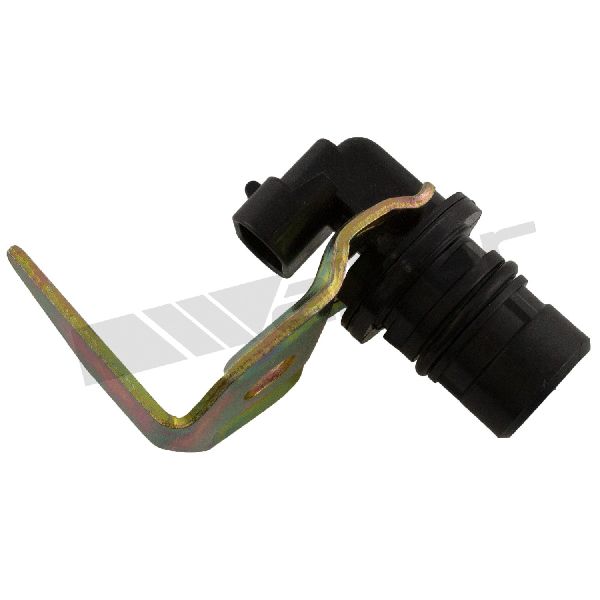

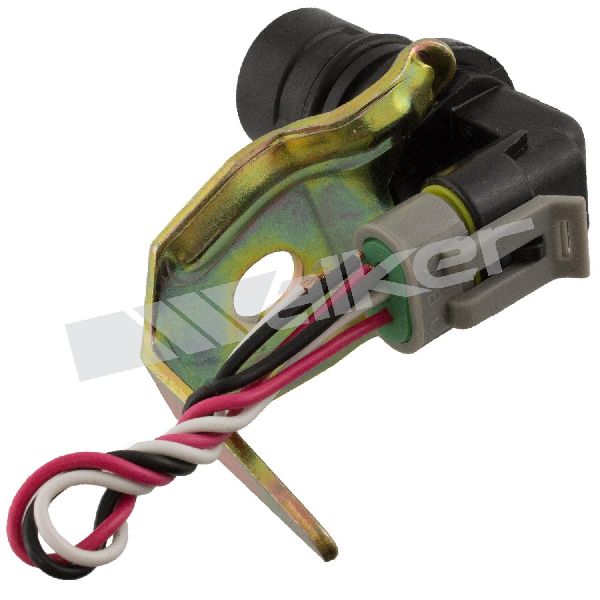

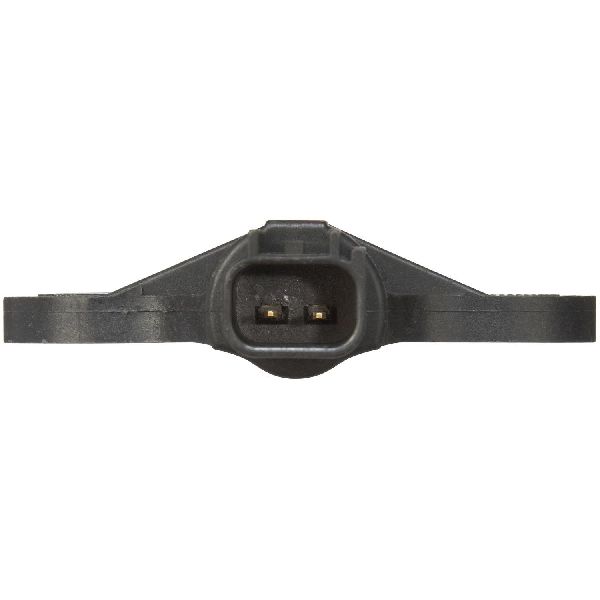

- Standard Ignition, Dorman, Spectra, Walker Products, Motorad: These brands offer a lower-cost alternative. While they may function correctly out of the box, forum discussions and mechanic feedback often point to a higher failure rate and shorter lifespan compared to the OEM Motorcraft sensor. If you choose an economy brand, it is highly recommended to keep a spare sensor in the truck at all times.
Cost of Replacing the Crankshaft Position Sensor
| Part or Service | Estimated Cost |
|---|---|
| New Aftermarket Sensor | $20.12 - $53.20 |
| New OEM (Motorcraft) Sensor | $40 - $80 |
| Shop Labor | $80 - $150 |
Cost estimates are approximate and can vary based on location and supplier.
Frequently Asked Questions
Is this a Crankshaft or Camshaft sensor?
On the 7.3L Powerstroke, this part is technically a Camshaft Position Sensor (CMP) because it reads a wheel behind the camshaft gear. However, because it provides the essential engine position and speed information that a crank sensor normally would, it is often called the Crankshaft Position Sensor (CPS) by the community. Ford and parts stores may list it under either name. The important part number is F7TZ-12K073-B.
Why does everyone say to only use the Ford Motorcraft part?
The original sensor had a high failure rate, which could cause the engine to stall in dangerous situations. Ford released an updated gray sensor that is much more reliable. Aftermarket versions have a reputation for failing more frequently than the updated OEM part, making the genuine Motorcraft sensor the trusted choice for reliability.
Can I drive with a bad crankshaft position sensor?
If you have a 7.3L Powerstroke, the answer is no. A failed sensor will prevent the engine from running, and an intermittent failure can cause dangerous stalling while driving. If you have a gas engine, you can likely drive to a repair shop, but you should get it checked soon to avoid potential damage to other components like the catalytic converter.
Is this part hard to replace myself?
No, on the 7.3L Powerstroke, it is one of the easiest parts to replace. It is held in by a single 10mm bolt and is accessible from underneath the truck, right on the front of the engine. The entire job can often be done in less than 15 minutes.
Helpful Videos
Technical Specifications
OEM Part Numbers: F7TZ12K073A F7TZ12K073B F4TZ-12K073-C 1876735C91 1825899C93
Hall Effect Sensor, single bolt mount. Located on the front of the engine block near the crankshaft pulley, at approximately the 10 o'clock position on 7.3L Powerstroke engines.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
