1992-1996 GMC G3500 Window Motor: A Complete Replacement Guide
If your G3500's power window is slow, noisy, or completely stuck, this guide is for you.
- A slow, noisy, or stuck window are the main symptoms of a failing motor.
- Always check the fuse and switch before deciding the motor is bad.
- For this van, aftermarket motors from brands like Dorman or Cardone are a cost-effective and reliable choice.
- DIY replacement is much easier if you drill access holes in the inner door to unbolt the motor, avoiding regulator removal.
Is Your GMC G3500 Window Motor Failing?
A bad window motor is a common problem on older work vans like the GMC G3500. Years of use cause the internal components to wear out. Before you assume the motor is bad, it's smart to check the basics first. Test the window fuse and listen for any sound from the door when you press the switch. A clicking or whirring sound often means the motor is getting power, but a dead silence could point to a bad switch or a break in the wiring. Wires in the door jamb can break from repeated opening and closing.
Common Symptoms of a Bad Window Motor
- Slow Window Operation: The window moves up and down much slower than it used to.
- Window Gets Stuck: The glass stops moving partway up or down. You might be able to help it along by pulling or pushing on the glass.
- No Movement, But You Hear a Noise: If you hear a clicking or grinding sound from the door when you press the switch, but the window doesn't move, the motor is likely trying to work but has failed internally or the regulator is broken.
- No Movement, No Noise: If nothing happens when you press the switch, the problem could be the motor, the switch, or the wiring. It's important to test the switch and check for power at the motor's plug before replacing it.
Choosing the Right Aftermarket Window Motor
For a vehicle from the 1992-1996 era, buying a new aftermarket motor is the most practical and cost-effective choice. The quality of top-tier aftermarket parts is generally considered sufficient for this application, and they are much cheaper than trying to find an original equipment (OEM) part.
The two main brands you will find are Dorman and Cardone.
- Dorman: A well-known aftermarket brand that produces a huge variety of parts. Their window motors are generally seen as a reliable choice that gets the job done. They often come with a limited lifetime warranty, which is a major benefit for a part that commonly fails.
- Cardone: Another major player in the aftermarket world. Cardone offers both new and remanufactured parts and has a reputation for providing quality components that often match or refine the original factory designs.
How Much Does a Window Motor Replacement Cost?
The cost depends on whether you do the job yourself or take it to a shop. The part itself is affordable, but labor can add up.
| Part or Service | Estimated Cost |
|---|---|
| New Aftermarket Window Motor | $55 - $70 |
| Shop Labor | $120 - $240 |
| Total Estimated Cost (At a Shop) | $175 - $310 |
Frequently Asked Questions
Do I need to replace the window regulator too?
Not always. If the window moves smoothly when you help it by hand and the only problem is the motor's power, you can often just replace the motor. If the window is crooked, makes grinding or popping noises, or feels like it's off its track, the regulator is likely damaged and should be replaced as an assembly with the motor.
🎬 Watch a full walkthrough of the window regulator replacement process.Is the driver's side motor the same as the passenger's side?
For the 1992-1996 GMC G3500, the same motor part number is often used for both the front driver and passenger side doors. Always confirm fitment for your specific vehicle before ordering.
How do I test my old window motor?
Once you have access to the motor's electrical connector, you can use a test light or multimeter to check for power when the window switch is pressed. If you have power and ground at the connector but the motor doesn't run, the motor is bad. You can also use jumper wires from a 12V battery to directly power the motor and see if it spins.
Were there any recalls for this part?
No, there are no specific recalls or technical service bulletins (TSBs) from the NHTSA for the window motor on the 1992-1996 GMC G3500. Recalls for GMC window switches exist, but they are for much newer model years and do not apply to this van.

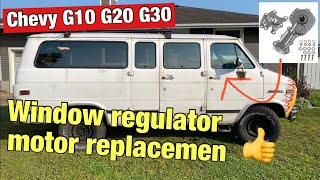

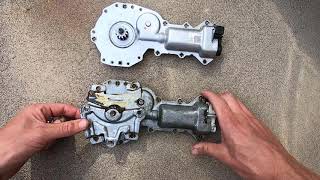

Helpful Videos
Technical Specifications
OEM Part Numbers: 22062528 12497971 12362900 12362901 12487630 16629278
Fits front driver or passenger side. Typically includes a 12-tooth gear.
