Jeep Wrangler YJ Crankshaft Position Sensor: A Complete Guide (1992-1996)
Solving stalling, no-start, and hesitation issues in your 1992-1996 Jeep Wrangler YJ starts here.
- A crank-no-start condition or stalling when the engine is hot are classic signs of a failed CPS in a YJ Wrangler.
- Due to high failure rates of budget parts, it is strongly recommended to use a Mopar or NTK brand sensor for this repair.
- The replacement is difficult due to tight access. You will need long extensions and a swivel socket for the 11mm bolts.
- Verify your model year carefully; 1992 and earlier models use a different part number and connector than 1993-1996 models.
Is Your Jeep Stalling or Refusing to Start? It Could Be the Crank Sensor.
If you own a 1992-1996 Jeep Wrangler YJ with the 2.5L or 4.0L engine, a failing crankshaft position sensor (CPS) is a common problem you might face. This sensor is known to cause a frustrating set of symptoms that can appear suddenly, leaving you stranded. When it fails, it stops sending the essential engine speed and position data to the computer, which then can't properly manage spark and fuel. This guide will walk you through the symptoms, how to choose the right aftermarket replacement, and what to expect for the repair.
The "Heat Soak" Failure
A very common failure for the YJ's crank sensor is heat-related. The sensor may work perfectly when the engine is cold, but after driving for a while and getting hot, it will fail. This causes the engine to suddenly stall. After the engine cools down for 15-30 minutes, the sensor may start working again, and the Jeep will restart as if nothing happened. If your Jeep stalls when hot but restarts after cooling, the CPS is the most likely culprit.
🎬 Watch: Complete diagnosis guide for a Jeep that won't start.Choosing the Right Aftermarket Crankshaft Sensor
When a part can leave you on the side of the road, quality matters. For this specific sensor on the Jeep 4.0L and 2.5L engines, there is a significant difference in reliability between brands. Forum discussions among long-time Jeep owners show a strong preference for using either the original Mopar part or the OEM-equivalent brand.
Brand Quality Tiers for Your Jeep
- Tier 1: OEM-Equivalent (Recommended)
These brands are known to be the original equipment manufacturer for Mopar or have a reputation for equivalent quality. For a critical part like the CPS, spending a little more here is a wise investment to avoid doing the job twice. Many owners report cheap parts failing quickly or being dead out of the box.- NGK / NTK: Widely regarded as the actual OEM manufacturer for Mopar sensors. This is considered the best aftermarket choice for reliability.
- Tier 2: Reputable Aftermarket
These brands are a step down from OEM but are generally considered reliable by many mechanics and DIYers. They offer a good balance of price and quality.- Standard Motor Products (SMP): Often sold as the 'Echlin' line at NAPA, SMP is a well-known brand with generally positive feedback, though some failures have been reported.
- Delphi: A major OEM supplier for many car manufacturers, Delphi parts are typically high quality.
- Crown Automotive / Omix-Ada: These brands specialize in Jeep parts and are a popular choice for a wide range of repairs.
- Tier 3: Economy Brands
This category includes Dorman, Prenco, Skyward, and other lower-cost options. While tempting for their price, these brands have a higher rate of reported failures for this specific part. They might work in a pinch, but carry a higher risk of premature failure, forcing you to do a difficult repair all over again.
A Common Ordering Mistake
The crankshaft position sensor for the Wrangler YJ changed during its production. 1991-1992 models use a different sensor and connector than 1993-1995/96 models. Always verify the part fits your specific year, engine, and transmission type before ordering. The connector plug is the easiest way to visually check; it will typically be round or rectangular depending on the year.
DIY Replacement: What to Expect
Replacing the CPS on a YJ is a job that a patient DIYer can handle. The sensor is located on the driver's side of the transmission bellhousing, near the top, in a very tight space.
- Difficulty: Moderate. The challenge is not the complexity, but the access.
- Tools Needed: You will need a long socket extension (or several combined), a universal/swivel joint, and an 11mm or 7/16" socket.
- The Bolts: Two bolts hold the sensor in place. They are notoriously difficult to reach and can be easily stripped. Work slowly and make sure your socket is seated properly before applying force.
- Process: The sensor is unplugged from the wiring harness near the engine's intake manifold. The wire is then traced down to the bellhousing where the sensor is unbolted and removed. Installation is the reverse of removal. 🎬 See this walkthrough for replacing the sensor on a YJ.
| Part Type | Estimated Cost |
|---|---|
| New OEM (Mopar) | $80 - $125+ (May be discontinued) |
| New Aftermarket (Premium) | $50 - $85 |
| New Aftermarket (Economy) | $20 - $45 |
| Used OEM | $25 - $50 |
| Shop Labor | $85 - $140 |
Frequently Asked Questions (FAQ)
What are the main symptoms of a bad crank sensor on a Jeep YJ?
The most common symptoms are the engine cranking but not starting, or suddenly stalling while driving, especially when hot. You may also experience a rough idle, engine hesitation, misfires, and the tachometer needle bouncing erratically or dropping to zero.
Can I drive my Jeep with a failing crank sensor?
It is not recommended. A failing sensor can cause the engine to stall at any time, including at high speeds or in traffic, which is a major safety risk. If the sensor fails completely, the engine will not restart, leaving you stranded.
Where is the crankshaft position sensor located on a 1992-1996 Wrangler?
It is mounted to the top driver's side of the transmission bellhousing, at approximately the 10 or 11 o'clock position. 🎬 Watch: How to replace the sensor on a Jeep 4.0L. The wire runs up to a connector near the back of the intake manifold.
Are there any recalls for the crankshaft position sensor on the YJ Wrangler?
No. Searches of the National Highway Traffic Safety Administration (NHTSA) database show no specific recalls for the crankshaft position sensor on 1992-1996 Jeep Wrangler models. Recalls for similar issues exist for much newer Jeep models but do not apply to the YJ.
Helpful Videos
Technical Specifications
OEM Part Numbers: 56026882 56027031 4638128

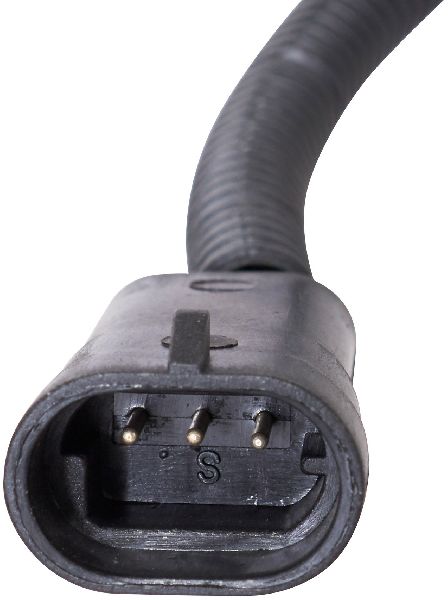

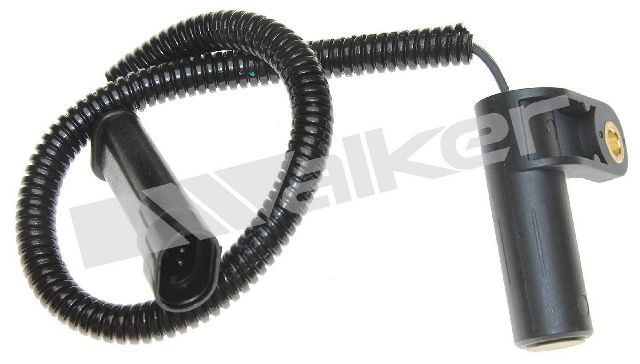

This is a hall-effect sensor that reads the position of the crankshaft via notches in the flywheel/flexplate. It uses a 3-pin connector. The correct part varies based on model year (1992 vs 1993+) and potentially the transmission type.
