Jeep Wrangler YJ (1992-1996) Engine Oil Pressure Switch Guide
Understanding the common oil pressure gauge issues in your YJ and how to fix them for good.
- An erratic or pegged oil pressure gauge on a YJ is almost always a bad sending unit, not a major engine problem.
- The sensor is located on the passenger side of the engine, near the distributor, and is very easy to replace yourself.
- A failing sensor can cause a major oil leak, so inspect it and replace it if you see signs of leaking oil.
- Aftermarket brands like Standard Ignition and Crown Automotive are reliable and affordable choices for this repair.
Is Your YJ Oil Gauge Acting Crazy?
If you own a 1992-1996 Jeep Wrangler YJ, you've probably seen the oil pressure gauge do some strange things. It might jump to max pressure, drop to zero for no reason, or just bounce around. Most of the time, this isn't a sign of a serious engine problem. It's usually just a failed engine oil pressure switch, which is a very common issue on these Jeeps. The sensor's internal parts wear out or the seal fails, causing oil to leak into the electrical connector, leading to false readings.
Common Failure Symptoms
A bad oil pressure sending unit can make you think your engine is about to fail. Before you panic, check for these common symptoms. They almost always point to the sensor itself, not a bad oil pump.
🎬 Watch: Diagnosing a faulty sender on the 2.5L engine.- Erratic Gauge Needle: The most common sign is an oil pressure gauge that swings wildly, pegs at maximum (80+ PSI), or drops to zero.
- Gauge Reads High at Startup: The gauge might shoot to max pressure as soon as you start the engine.
- Oil Warning Light: If your gauge drops to zero, the "Check Gauges" light will likely come on.
- Visible Oil Leak: The sensor itself can crack and leak oil. This can be a small drip or a catastrophic failure that dumps a large amount of oil quickly. Look for oil on the sensor, which is located on the passenger side of the engine block, near the oil filter and distributor.
Don't Ignore a Sudden Drop in Pressure with Engine Noise
While the sensor is the usual culprit, if your gauge drops and you hear new engine noises like ticking, knocking, or clattering, turn off the engine immediately. This could indicate a real loss of oil pressure, and continuing to drive could destroy your engine.
Choosing the Right Aftermarket Part
For a simple part like this, you don't need to hunt down an expensive OEM part. Aftermarket brands offer good quality replacements that solve the problem. Based on owner experiences, here's a look at the available brands.
Brand Quality Tiers
- Tier 1 - Trusted Aftermarket: Standard Ignition (Standard Motor Products) is a well-known brand in the aftermarket. They have a long history and are generally considered a reliable choice for sensors and electrical components. While some users have reported occasional failures with their broader product line, they remain a top pick for this type of part.
- Tier 2 - Jeep Specialist: Crown Automotive specializes in replacement parts for Jeeps. They are a go-to for many Jeep owners for having a huge catalog of parts, including those for older models like the YJ. Their quality is generally considered standard replacement level, making them a solid and affordable option.
- Tier 3 - Economy/Generalist: Brands like Global Parts and Rostra Powertrain fall into a more generalist category. Rostra is known for transmission components and electronics. While these parts will work, long-term durability can be a mixed bag compared to more established sensor brands. Given the low cost of even the top-tier brands for this part, it's often worth spending a few extra dollars for a brand with a stronger reputation.
Pro Tip: Check the Connector
The 1992-1995 YJ models use a single-wire, bullet-style connector for the oil pressure switch. When you buy a new switch, make sure it matches your vehicle's connector. Also, apply a small amount of thread sealant or Teflon tape to the new sensor's threads to prevent leaks, but be careful not to cover the opening at the tip.
How Much Does a New Oil Pressure Switch Cost?
Replacing the oil pressure switch is one of the most affordable repairs for your Wrangler. The parts are inexpensive, and if you do it yourself, you can fix your gauge problem for less than the cost of a tank of gas.
| Part | Price Range |
|---|---|
| New Aftermarket Engine Oil Pressure Switch | $12.17 - $51.91 |
| Shop Labor Cost | $50 - $100 |
Frequently Asked Questions
Is it hard to replace the oil pressure switch on a YJ?
No, it's a very easy job that most owners can do themselves in under 30 minutes. The sensor is located on the passenger side of the engine block, right next to the distributor and above the oil filter. You simply unplug the wire, and use a wrench or a special socket to unscrew the old sensor and install the new one.

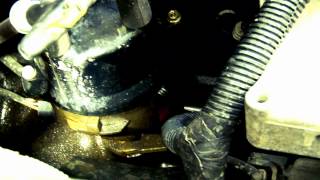

🎬 See this walkthrough for replacing the unit on a 1995 YJ.My gauge reads really high, like 80 PSI. Is that bad?
On a YJ, a gauge pegged at 80 PSI or higher is almost always a sign of a bad sending unit, not dangerously high oil pressure. The sensor fails in a way that sends a maximum reading to the gauge. Replacing the sensor should bring the reading back to a normal range (typically around 40-60 PSI when driving).
Can I drive my Jeep with a bad oil pressure switch?
Yes, but with caution. If you are certain the issue is just a faulty sensor causing bad readings (and you have no engine noise or major leaks), you can drive it. However, you won't be able to tell if a real oil pressure problem occurs. It's best to replace the part as soon as possible, especially since a complete failure can cause a major oil leak.
Are there any recalls for the oil pressure switch on the 1992-1996 Wrangler?
No, there are no specific recalls issued by the NHTSA for the engine oil pressure switch on the 1992-1996 Jeep Wrangler. While there have been other recalls for this generation, this specific part is considered a standard wear-and-tear maintenance item.
Helpful Videos
Technical Specifications
OEM Part Numbers: 56026719 56026719AB
For 1992-1995 models, the switch uses a single-pin bullet-style electrical connector. It is located on the passenger side of the engine block.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
