Mazda MX-3 Spark Plug Guide for 1992-1996 Models
Keep your MX-3's unique 4-cylinder or V6 engine running smoothly with the right set of spark plugs.
- NGK and Denso are the most recommended brands for the Mazda MX-3, as they were likely original equipment.
- For V6 models, check for oil in the spark plug wells, which indicates a leaking cam cover gasket—a common issue.
- The rear spark plugs on the 1.8L V6 are difficult to access and may require special tools like a swivel socket.
- Always verify the spark plug gap is set to 0.040"-0.044" before installation, regardless of engine size.
Signs of Failing Spark Plugs
Worn-out spark plugs can cause noticeable problems. If you experience these symptoms, your plugs might be the culprit. It's a good idea to check them, especially if they haven't been changed in over 30,000 miles.
- Rough Idle: The engine may shake or vibrate more than usual when you're stopped. 🎬 Watch this video to diagnose idle and misfire problems.
- Poor Acceleration: The car might feel sluggish or hesitate when you press the gas pedal.
- Engine Misfires: You might feel a stumbling or jerking from the engine, especially under load. This can sometimes trigger a check engine light.
- Reduced Fuel Economy: If you're filling up your tank more often, worn plugs could be wasting fuel.
- Difficulty Starting: A weak spark can make it harder for the engine to turn over.
Known Issue: Oil in Spark Plug Wells (V6 Models)

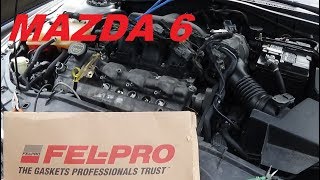

A common problem on the 1.8L V6 is a leaking cam cover gasket. This allows engine oil to seep into the spark plug tubes. If you pull a spark plug wire and find oil on it or in the well, it's a sign the gasket needs to be replaced. 🎬 Watch a V6 valve cover gasket replacement guide here. Oil contamination can cause misfires and damage the spark plug and wire.
Choosing the Right Aftermarket Spark Plugs
Mazda, like many Japanese automakers of the era, often used NGK or Denso as original equipment suppliers. This makes them a trusted choice for aftermarket replacements. Aftermarket plugs are not lower quality; in many cases, they are the same as the original, just sold in a different box.
Brand Tiers for Your MX-3
- Tier 1 (OEM Equivalent / Performance): NGK & Denso. These brands are highly recommended by MX-3 owners and mechanics. They are designed to work perfectly with Japanese engines. Iridium options from these brands, like NGK Iridium IX or Denso Iridium Power, offer the longest life and best performance.
- Tier 2 (Reliable Alternatives): Bosch & Autolite. These are well-known brands that make quality plugs. While not the original for the MX-3, their platinum and iridium plugs are a solid choice and can sometimes be more affordable.
- Tier 3 (Standard/Budget): Champion. Champion offers basic copper and platinum plugs that get the job done. They are a functional, budget-friendly option, though most enthusiasts prefer NGK or Denso for the MX-3.
Spark Plug Types Explained
- Copper: The most basic type. They have a shorter lifespan (around 20,000-30,000 miles) but provide a strong spark.
- Platinum: A good middle ground, offering a longer life than copper (around 60,000 miles).
- Iridium: The best option for longevity and performance. They have a very fine electrode for a more focused spark and can last up to 100,000 miles.
Pro Tip: Check the Gap!
Even though many modern plugs come "pre-gapped," it's crucial to double-check the gap with a feeler gauge before installation. Shipping and handling can easily alter the gap. An incorrect gap can lead to poor performance and misfires.
Installation & Replacement Info
Replacing spark plugs is a common DIY job. However, the difficulty varies greatly between the two MX-3 engines.

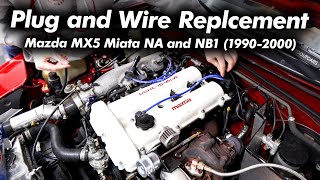

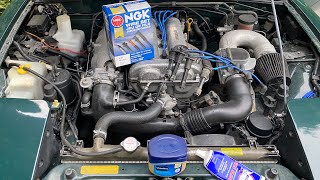

- 1.6L 4-Cylinder: This is a straightforward job. The spark plugs are easily accessible on top of the engine. 🎬 See this walkthrough for replacing your plugs and wires.
- 1.8L V6: This is more challenging. The front three plugs are easy, but the rear three are difficult to reach, tucked under the intake manifold. You will likely need a ratchet with a swivel socket or a universal joint to access them.
Always work on a cold engine. Label the spark plug wires before removing them to ensure they go back in the correct order. Clean the area around the plugs before removing them to prevent debris from falling into the cylinders.
| Engine | Spark Plug Gap |
|---|---|
| 1.6L I4 | 0.040" - 0.044" (1.0mm - 1.1mm) |
| 1.8L V6 | 0.040" - 0.044" (1.0mm - 1.1mm) |
Frequently Asked Questions
How often should I change my Mazda MX-3's spark plugs?
It depends on the type. Standard copper plugs should be changed every 20,000-30,000 miles. Platinum or Iridium plugs can last much longer, from 60,000 to over 100,000 miles. Check your service manual or the plug manufacturer's recommendation.
Are expensive iridium spark plugs worth it for my MX-3?
For most owners, yes. While they cost more upfront, iridium plugs provide a longer service life, meaning you change them less often. They also offer consistent performance, better fuel efficiency, and improved throttle response.
Are there any recalls or TSBs for MX-3 spark plugs?
No, there are no specific recalls or Technical Service Bulletins (TSBs) from Mazda or NHTSA for spark plugs, as they are considered a standard maintenance part. There was a recall for the ignition switch on 1992-1993 models, which can cause electrical issues, but it is unrelated to the plugs themselves.
Do I need to use anti-seize on the new spark plugs?
This is a debated topic. Major brands like NGK state that their plugs have a special trivalent plating that acts as an anti-seize, and adding more can cause you to over-torque the plugs. It's best to follow the specific manufacturer's instructions for the plugs you buy. Always use a torque wrench for final tightening.
Helpful Videos
Technical Specifications
Spark Plug Gap (both engines): 0.040" - 0.044" (1.0mm - 1.1mm). Hex Size: 16mm or 5/8". Seat Type: Gasket/Flat.
