Engine Water Pump Replacement for the 1992-1996 Mitsubishi Diamante
Keep your Diamante's 3.0L V6 engine from overheating by choosing the right water pump and avoiding a costly repair.
- The water pump is driven by the timing belt; always replace the belt, tensioner, idlers, and pump together as a kit to save on labor.
- This is a difficult, labor-intensive job not recommended for beginners. Incorrect installation can destroy the engine.
- Choose a quality aftermarket brand like GMB, which is a known OEM supplier for Japanese vehicles, to ensure reliability and avoid repeating the job.
- Do not drive an overheating vehicle. Pull over immediately to prevent catastrophic engine damage.
Is Your Diamante's Water Pump Failing?
A bad water pump on your 1992-1996 Mitsubishi Diamante will give you clear warning signs. Ignoring them can lead to catastrophic engine failure. Look out for these symptoms:
- Coolant Leaks: This is the most common sign. You may see puddles of green or red fluid under the front-center of your car. The leak comes from a small hole on the pump called a weep hole, which is designed to let coolant escape when the internal seals fail.
- Engine Overheating: If the temperature gauge on your dashboard starts climbing into the red, the water pump may not be circulating coolant effectively. An overheating engine is a critical issue; pull over immediately to prevent permanent damage.
- Whining or Grinding Noises: A high-pitched whining sound from the front of the engine that changes with engine speed can indicate a loose pulley or a failing bearing inside the water pump. As the bearing wears out, it can become a grinding noise.
- Steam from the Engine Bay: If you see steam coming from under the hood, it means the engine is severely overheating because coolant is boiling in the system. Stop the car immediately.
A Note on Weep Hole Leaks
Mitsubishi has issued a technical service bulletin (TSB-19-14-001) for all its models regarding water pump leaks. It is normal for a small amount of steam or mist to pass through the pump's mechanical seal, which can leave minor stains or residue near the weep hole. This does not always mean the pump needs replacement. A true failure will result in active dripping or a steady stream of coolant, not just a dried stain.
Choosing the Right Aftermarket Water Pump
For the 1992-1996 Diamante, the water pump is driven by the timing belt. This is a labor-intensive job, so choosing a quality part is critical to avoid doing the work twice. Aftermarket brands vary in quality.
Tier 1: Good Quality Aftermarket (Recommended)
GMB: GMB is a well-respected Japanese manufacturer that is an Original Equipment Manufacturer (OEM) for many timing components for Mitsubishi and other Japanese brands. Their water pumps are widely considered to be a high-quality, reliable alternative to the more expensive dealer part. Many timing belt kits include a GMB water pump.
Tier 2: Acceptable with Considerations

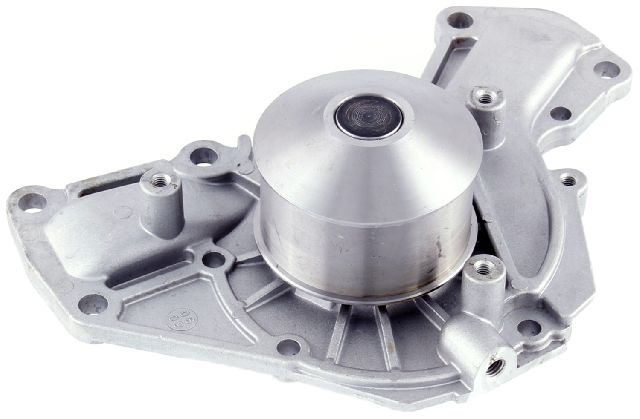

Gates: Gates is famous for its high-quality timing belts. Their kits, which often include a water pump, are very popular. However, the water pumps included in these kits are sometimes sourced from various manufacturers and can be of inconsistent quality, with some forum users reporting premature failures. While the Gates belt is excellent, the pump itself may not be as robust as a GMB or OEM unit.
Tier 3: Budget Options (Use with Caution)
ACDelco (Professional): ACDelco's 'Professional' line is their mainstream aftermarket offering. These parts are often made in China and reviews are mixed. Some users report success, while others have experienced quality control issues like pulley wobble or early failure, making them a gamble for a labor-intensive job like this.

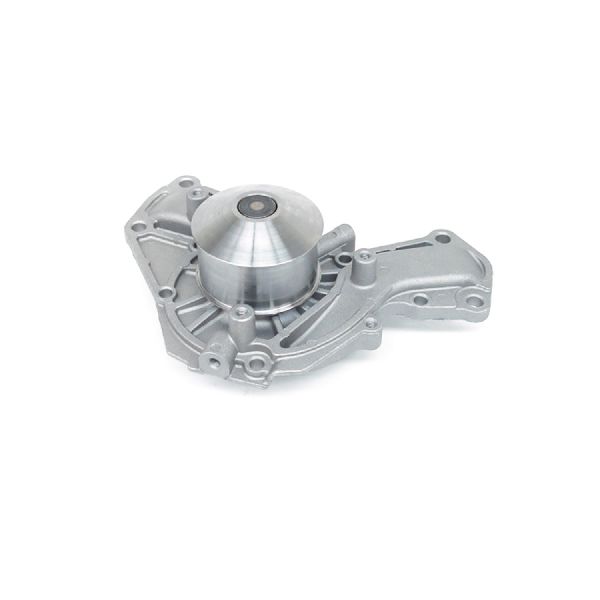

US Motor Works: This brand is typically positioned as a budget-friendly option. However, forum discussions across various vehicles often point to issues with casting quality, incorrect fitment, and a higher rate of premature failure. Given the difficulty of this replacement, using a budget pump is a significant risk.
Pro Tip: Always Replace as a Kit
The water pump on the Diamante's 3.0L 6G72 V6 is located behind the timing belt covers. The labor involved to access the pump is the same as the labor to replace the timing belt, hydraulic tensioner, and idler pulleys. For this reason, you should always replace the water pump, timing belt, tensioner, and idlers at the same time. Buying a complete timing belt kit is the most cost-effective and reliable way to do the job.
Estimated Replacement Costs
The cost to replace your Diamante's water pump is dominated by labor due to its location behind the timing belt.
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Water Pump (Part Only) | $48 - $98 |
| Complete Aftermarket Timing Belt Kit with Water Pump | $120 - $250 |
| Shop Labor | $500 - $800 |
| Total Job (Aftermarket Kit + Labor) | $620 - $1050 |
Frequently Asked Questions
Is the 1992-1996 Diamante water pump driven by the timing belt?
Yes. The water pump on the 3.0L V6 engine is driven by the timing belt. This makes the replacement a complex and labor-intensive job.
Should I replace my timing belt when I replace the water pump?
Absolutely. Since the timing belt must be removed to access the water pump, you should always replace the timing belt, hydraulic tensioner, and idler pulleys at the same time. The parts are sold together in kits, and this saves you from paying for the same expensive labor twice.
How long should a new water pump last?
A quality water pump, when installed correctly with a new timing belt, should last the full service interval of the timing belt, which is typically 60,000 to 90,000 miles. This is why choosing a quality brand like GMB is recommended over budget options.
Can I do this replacement myself?
This is not recommended for beginners. Replacing a timing belt and associated components requires specific tools, knowledge of setting engine timing, and significant time. An error during installation, like incorrect timing, can cause severe engine damage. This job is best left to experienced DIY mechanics or a professional shop.
Technical Specifications
OEM Part Numbers: MD978743 MD307487 MD151447
Fits 1992-1996 Mitsubishi Diamante with the 3.0L 6G72 V6 engine. Timing belt driven.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
