Chevrolet Caprice Engine Water Pump: A Guide for 1992-1997 Models
Understanding the critical differences in water pumps for your 1992-1997 Caprice is key to a lasting repair.
- First, confirm if you have a belt-driven (1992-93 SBC) or gear-driven (1994-96 LT1) pump; they are not interchangeable.
- For LT1 owners, a leaking water pump will destroy the Optispark distributor below it, leading to a much more expensive repair.
- Strongly consider performing the 'weep hole mod' on a new LT1 pump to divert future leaks away from the Optispark.
- Choosing a higher-quality pump brand is a wise investment, especially on an LT1, to minimize the risk of premature failure and collateral damage.
Engine-Specific Designs: The Most Common Ordering Mistake
Before buying a water pump for your 1992-1997 Chevrolet Caprice, you must identify your engine. The water pumps are not interchangeable.

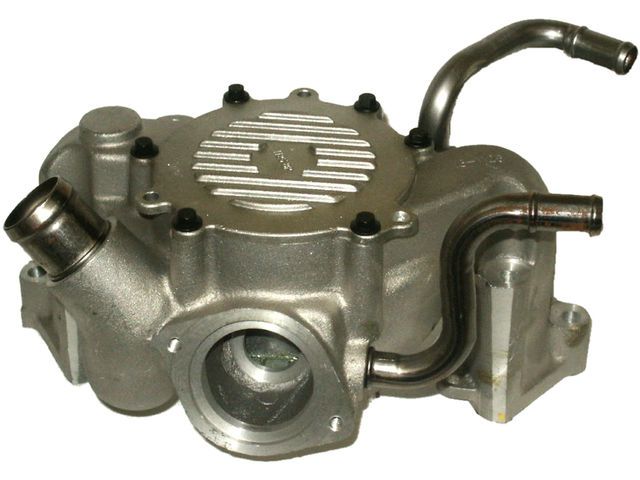

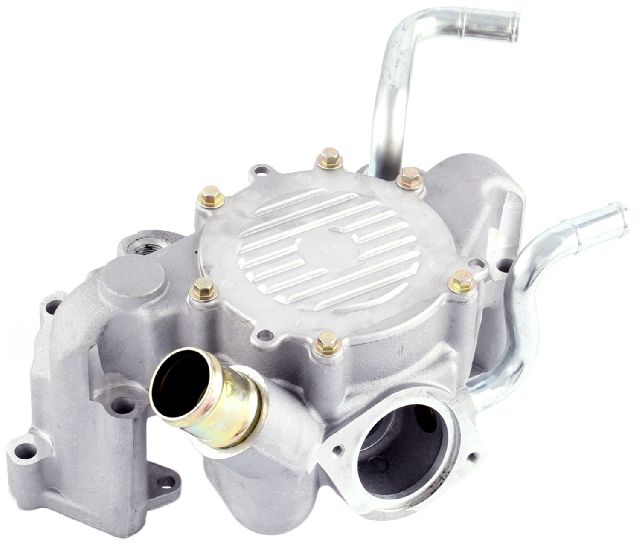

- 1994-1996 Caprice (LT1 5.7L V8): These models use a unique gear-driven water pump. The pump is driven by a gear that connects directly to the camshaft through the timing cover. This design is specific to the LT-family of engines.

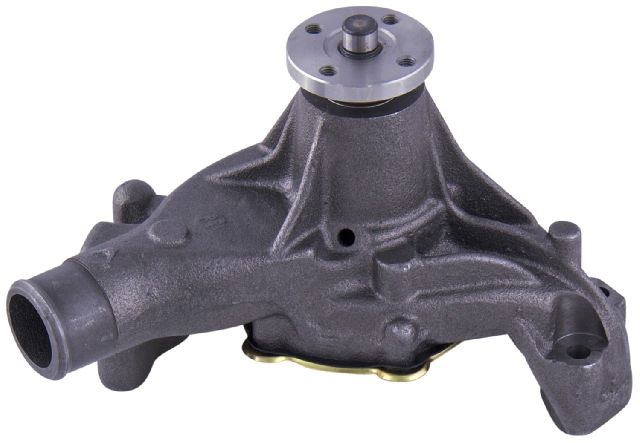

- 1992-1993 Caprice (L03 5.0L & L05 5.7L V8): These models use a conventional water pump that is driven by the serpentine belt on the front of the engine. This is a standard Small Block Chevy (SBC) design.
Visually confirming your engine type is the best way to ensure you order the correct part.
Known Issue for LT1 Owners: The Optispark Distributor
The most significant issue for 1994-1996 Caprice models with the LT1 engine involves the water pump and the distributor, known as the "Optispark." The Optispark is located directly below the water pump. When the water pump's internal seal fails, coolant leaks from a small "weep hole" on the bottom of the pump housing. This coolant drips directly onto the Optispark, causing it to short out and fail, which can prevent the engine from running. A failed Optispark is a costly and labor-intensive repair, often costing more than the water pump replacement itself.
Choosing the Right Aftermarket Water Pump
With many brands available, choosing the right one can be confusing. They generally fall into three tiers of quality and price.
Tier 1: Premium & Performance Brands ($150 - $279+)
Examples: Edelbrock, Proform, PRW
These brands offer high-performance water pumps, often made from superior materials like billet aluminum. They may feature improved impeller designs for better coolant flow at all RPMs, which can be beneficial for modified or hard-working engines. While they are the most expensive, they are built for durability and performance.
Tier 2: OEM-Equivalent Brands ($80 - $160)
Example: ACDelco
ACDelco is the original equipment manufacturer for GM and is a popular choice for owners wanting a stock replacement. However, be aware that ACDelco offers different product lines (e.g., Professional, Advantage), and forum users have noted that the quality and country of origin can vary. While generally considered a reliable choice, it's no longer a guarantee of superior quality over other good aftermarket options.
Tier 3: Standard Aftermarket Brands ($53 - $100)
Examples: Gates, Dayco, GMB, US Motor Works
These brands provide a budget-friendly solution. Quality and longevity can be inconsistent, according to owner forums. Some pumps may last the life of the car, while others might fail prematurely. Some evidence suggests that a single manufacturer like Gates may produce pumps that are rebranded by others, including lower-tier ACDelco lines. These are a viable option if budget is the primary concern, but for the critical LT1 application, spending more on a higher-quality pump is often recommended to protect the Optispark.
Frequently Asked Questions (FAQ)
Do I need to replace my Optispark distributor when I replace my LT1 water pump?
Not necessarily. If your old water pump was not leaking onto the Optispark and your ignition system is working perfectly, you can leave the original distributor in place. However, if the Optispark has been exposed to coolant, it is highly recommended to inspect it for damage or replace it as a preventative measure, as you already have everything taken apart.
What else should I replace with the water pump?
It is a good practice to replace the thermostat and the water pump gaskets. For high-mileage vehicles, this is also the perfect time to inspect the serpentine belt, tensioner, and all coolant hoses, replacing any that look worn, cracked, or brittle.
Are there any recalls for the Caprice water pump?
No. Searches of the National Highway Traffic Safety Administration (NHTSA) database show no official safety recalls for the water pump on the 1992-1997 Chevrolet Caprice.
Can I use a stop-leak product instead of replacing the pump?
Stop-leak products are not recommended as a permanent solution. They can be a temporary fix in an emergency, but they can also potentially clog other parts of your cooling system, like the radiator and heater core, leading to more significant problems down the road.
Technical Specifications
OEM Part Numbers: 12527739 12523499 12518278 10105828 12522031
Varies by engine. 1994-1996 LT1 models use a gear-driven pump. 1992-1993 L03/L05 models use a belt-driven pump.
