Choosing and Replacing Spark Plugs on Your 1992-1997 Chevrolet Caprice
Get the right plugs for your Caprice's V8 and understand the challenges of the job before you start.
- The 5.7L LT1 engine's OptiSpark distributor is located under the water pump; a coolant leak can destroy it, causing misfires.
- ACDelco (OEM) and NGK (especially the TR55 model) are the most highly recommended spark plug brands by owners for reliability and performance.
- Replacing the spark plugs is a difficult and time-consuming job on the LT1 engine, requiring special tools and patience.
- Always replace the spark plug wires at the same time as the plugs to ensure a strong spark and prevent strain on the ignition system.
Symptoms of Failing Spark Plugs
When your spark plugs are nearing the end of their life, your Caprice will let you know. The signs can start small but will get worse over time. Ignoring them can lead to more significant engine issues and leave you stranded.
- Rough Idle: The engine may shake or vibrate more than usual when you're stopped.
- Hesitation or Misfiring: During acceleration, the car may stumble or jerk. This is often felt as a loss of power and can trigger a Check Engine Light. 🎬 Watch this guide on troubleshooting LT1 engine misfires.
- Poor Fuel Economy: If you notice you're filling up the gas tank more often, worn plugs could be the cause. An inefficient spark wastes fuel.
- Difficulty Starting: Weak or fouled plugs can make it hard for the engine to turn over, especially when cold.
- Reduced Power: Your Caprice may feel sluggish and less responsive than it used to be.

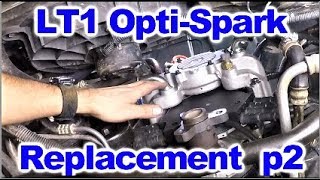

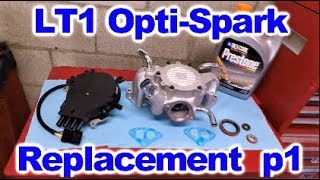

A Critical Note: The OptiSpark Distributor
Most 1992-1997 Caprice models, especially those with the 5.7L LT1 engine, use an ignition system called the "OptiSpark." This distributor is located in a difficult spot: on the front of the engine, directly underneath the water pump. This design has a well-known weakness.
A General Motors Technical Service Bulletin (TSB 87-65-27) was issued for engine miss and poor driveability caused by issues within the OptiSpark cap and rotor, such as carbon tracking or water intrusion.
Choosing the Right Aftermarket Spark Plugs
You have many brands to choose from, but not all are created equal for the Caprice's engines. Owner experiences provide a clear picture of what works best.
Tier 1: Highly Recommended
- ACDelco: As the original equipment (OE) manufacturer for GM, you can't go wrong with ACDelco plugs. Their Platinum plugs are a great choice for stock vehicles, offering a long service life. Many owners stick with the factory recommendation for reliability. It's also widely believed that NGK manufactures many of ACDelco's plugs.
- NGK: NGK plugs are a favorite among LT1 enthusiasts. The NGK TR55 is mentioned frequently in forums as a top-performing plug for both stock and lightly modified engines. They are known for providing a strong, reliable spark. For a longer life, NGK also offers iridium versions like the TR55IX.
Tier 2: Good Value & Performance
- Autolite: Many owners have had good experiences with Autolite plugs, including their copper and platinum options. They are often seen as a reliable and affordable alternative to ACDelco and NGK.
- Denso: While not mentioned as frequently as NGK or ACDelco for this specific vehicle, Denso is a globally respected manufacturer known for high-quality iridium and platinum plugs.
Tier 3: Use with Caution
- Bosch: Reviews for Bosch plugs on the LT1 engine are very mixed. Some owners report experiencing high-RPM misfires after installing them. While some have had success, others recommend avoiding them for this particular application.
- Champion: While a long-standing brand, Champion plugs are not as commonly recommended by Caprice and LT1 owners as NGK or ACDelco. Some users find they work well, while others have had issues.
Cost of New Spark Plugs (8 Required)
| Category | Price Range (Set of 8) | Notes |
|---|---|---|
| Aftermarket Copper (e.g., Autolite, NGK) | $20 - $40 | Good performance, shorter lifespan. |
| Aftermarket Platinum (e.g., ACDelco, NGK, Autolite) | $30 - $80 | Excellent balance of performance and longevity. The most popular choice. |
| Aftermarket Iridium (e.g., NGK, Denso) | $60 - $120+ | Longest lifespan and consistent performance. |
| Shop Labor for Installation | $200 - $450 | Labor costs are high due to the difficulty of the job, especially on the 5.7L LT1. |
Frequently Asked Questions (FAQ)
Is it hard to change the spark plugs on a 1992-1997 Caprice?

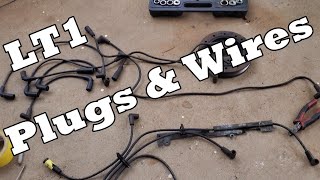

Yes, it is considered a difficult job, especially on the 5.7L LT1 engine. Access is very tight, particularly for the rearmost plugs and the passenger-side plugs near the A/C components. Many mechanics access the plugs through the wheel wells. 🎬 Watch the easiest way to remove these difficult spark plugs. You will likely need a variety of extensions and a swivel socket to complete the job. The 4.3L L99 V8 is generally easier to work on than the LT1.
Do I need to gap the new spark plugs?
Most modern platinum and iridium spark plugs come pre-gapped from the factory. It is always a good practice to verify the gap with a feeler gauge before installation, but you must be extremely careful not to damage the fine-wire electrode on precious metal plugs. The factory gap for the LT1 is typically 0.050 inches. Never use a coin-style gapper on iridium or platinum plugs.
Should I replace the spark plug wires at the same time?
Yes. Given the difficulty of the job, it is highly recommended to replace the spark plug wires at the same time you replace the plugs. Old wires can have increased resistance, which strains the OptiSpark distributor and can cause a weak spark. Be sure to route the new wires correctly to avoid contact with hot exhaust manifolds.
What is the firing order for the Caprice V8 engines?
The firing order for the 5.7L LT1 and 4.3L L99 V8 engines is 1-8-4-3-6-5-7-2. The distributor rotation is clockwise. It is critical to connect the spark plug wires from the OptiSpark distributor to the correct cylinders. Incorrectly routed wires will cause the engine to run poorly or not at all.
Helpful Videos
Technical Specifications
OEM Part Numbers: 12556183
Engine Type: 4.3L L99 V8 or 5.7L LT1 V8 Spark Plug Quantity: 8 Spark Plug Socket Size: 5/8 inch Factory Spark Plug Gap: 0.050 inches Firing Order: 1-8-4-3-6-5-7-2
