A Mechanic's Guide to 1992-1997 GMC Jimmy Rear Brake Drums
Stop the guesswork and choose the right replacement rear brake drums for your Jimmy.
- Always replace brake drums, shoes, and hardware springs as a complete set.
- For this vehicle, it is almost always more cost-effective and safer to replace drums than to machine them.
- Be aware of the major 1991-1996 ABS recall that affects braking performance, even though it is not a drum-specific issue.
- Premium aftermarket brands like Centric often include anti-rust coatings that are beneficial for longevity.
Is It Time for New Brake Drums?
Worn-out brake drums aren't just noisy; they are a safety hazard. If you notice any of the following symptoms, it's time to inspect your rear brakes immediately.
- Scraping or Grinding Noises: A metallic scraping or grinding sound when you brake is the most common sign. This usually means the brake shoes have worn completely away and metal is grinding against the drum's inner surface.
- Vibrations or Pulsing in the Pedal: If you feel a pulsing or vibration in the brake pedal when you slow down, it can mean the drum has become warped or "out-of-round" from heat and wear.
- Reduced Stopping Power: Does your truck take longer to stop than it used to? Worn drums can't create the friction needed for effective braking, leading to longer stopping distances.
- Loose Parking Brake: If your parking brake handle pulls up much higher than it used to, or the truck won't hold firmly on a hill, it's a strong indicator that the rear drums and shoes are worn out.
Vehicle-Specific Issue: ABS Recall
A major recall was issued for 1991-1996 GMC Jimmys (and similar GM trucks) related to the anti-lock brake system (ABS). A faulty switch could incorrectly tell the system the vehicle was in 4-wheel drive, which could significantly increase stopping distances during an ABS event. While this is not a failure of the drum itself, it is a critical safety issue for the braking system on these specific model years. Check with a GM dealer or use the NHTSA website to see if your vehicle was serviced for this recall.
Choosing the Right Aftermarket Brake Drum
You don't need to go to a dealer to get quality brake drums. Aftermarket brands offer a range of options that meet or exceed original quality. They generally fall into three tiers.
Economy & Standard Replacement
These brands are perfect for a daily driven Jimmy, offering safe, reliable performance and great value. They are designed to match the original factory specifications.

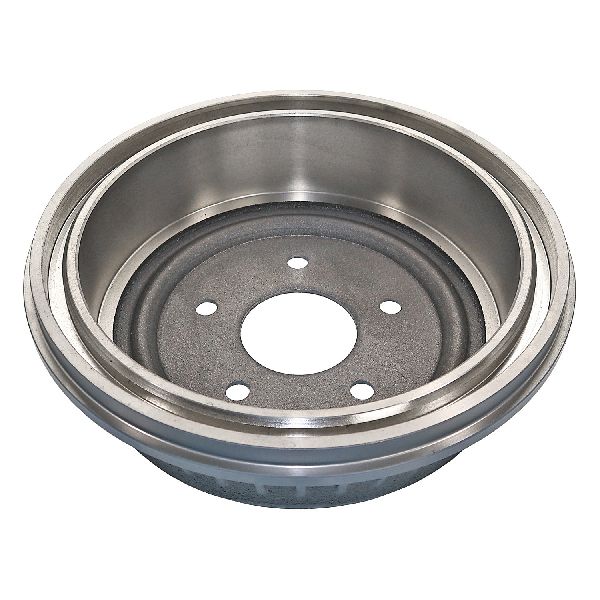

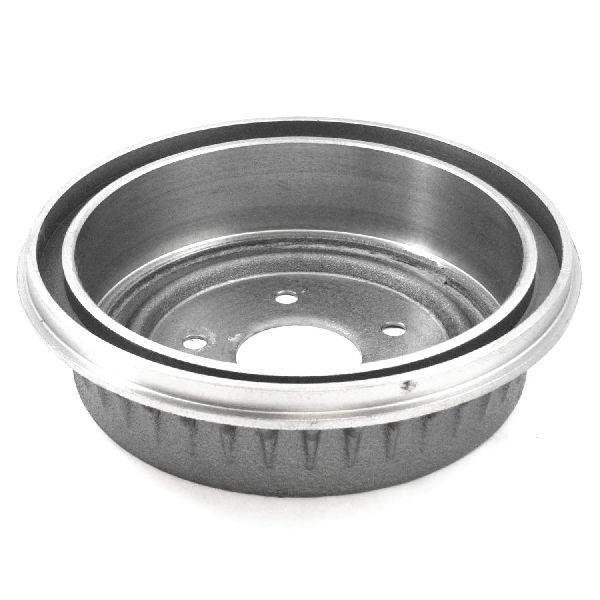

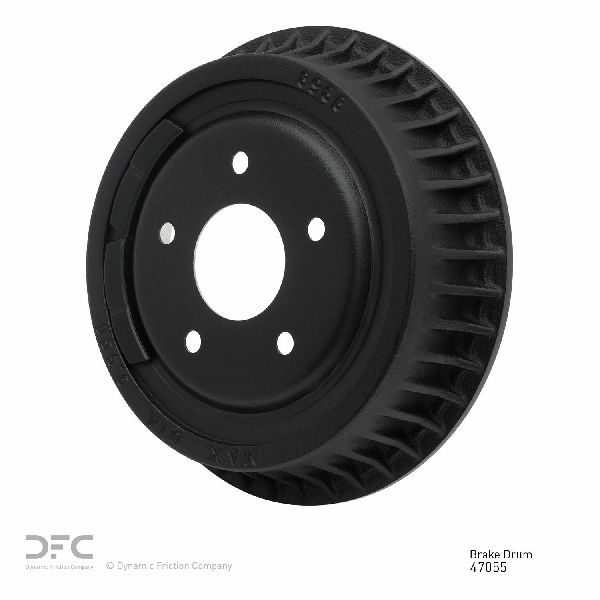

- Brands: Dynamic Friction, Pronto, Centric C-Tek
- Assessment: These are solid, no-frills options that will restore your braking performance. They are a cost-effective choice for normal driving conditions. Centric's C-Tek line is a well-known economy option.
Premium & OEM-Quality
For owners who want a longer service life or added corrosion resistance, premium drums are an excellent choice. They often feature superior materials and protective coatings.

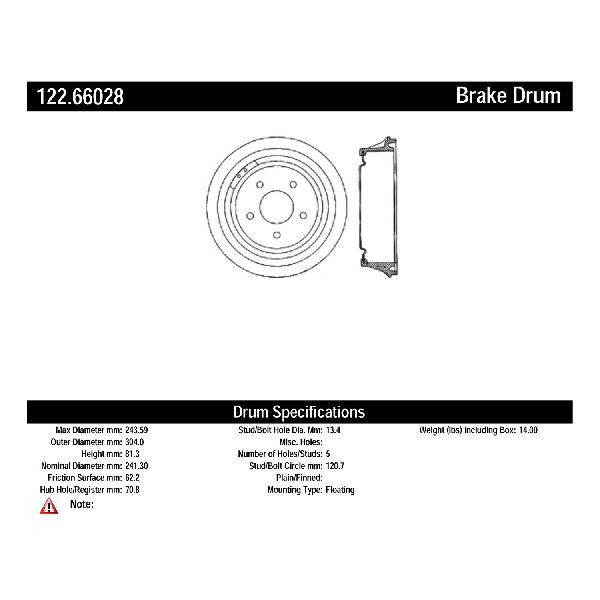

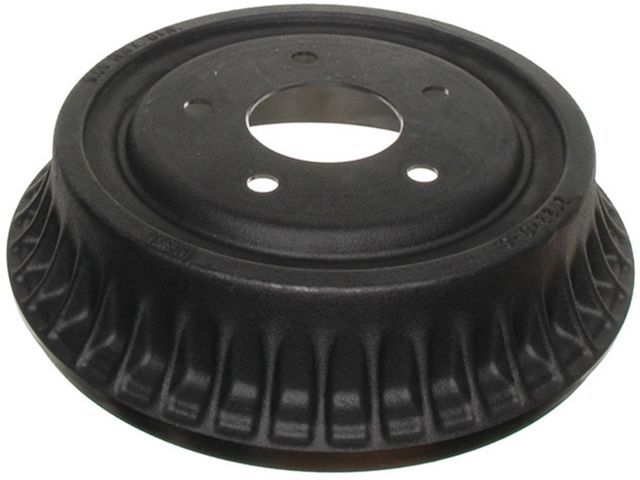

- Brands: ACDelco, Bendix, Centric Premium
- Assessment: ACDelco is the original parts supplier for GM, but quality on some aftermarket parts can be inconsistent; inspect them upon arrival for any defects. Bendix is a long-standing, trusted name in brakes. Centric Premium drums are highly regarded and often come with a black e-coating on the hub and non-contact surfaces to prevent rust, which is a great feature.
Performance Upgrade
While not typically necessary for rear drums on a stock Jimmy, performance brands can offer benefits, especially if you tow or have upgraded your front brakes.

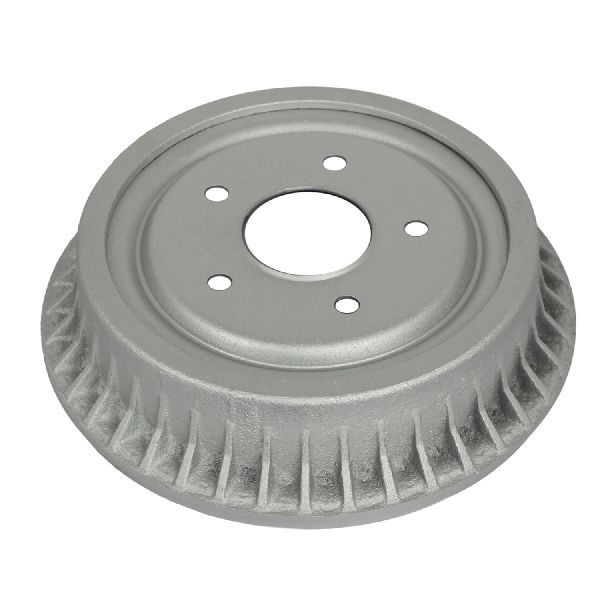

- Brands: Powerstop
- Assessment: Powerstop usually sells complete kits that include pads and hardware. They are considered an upgrade over stock and are popular for their stopping power and value. This may be more than you need for just the rear drums, but it's a great option if you're overhauling the entire brake system.
Pro Tip: Replace Everything at Once
When you replace brake drums, you should always replace the brake shoes, springs, and hardware at the same time. New drums will wear out quickly if used with old, uneven shoes. A complete hardware kit is inexpensive and ensures your new brakes work smoothly and quietly.
Brake Drum Replacement Cost for 1992-1997 GMC Jimmy
The cost for replacing rear brake drums can be broken down into parts and labor. Doing the job yourself can save significant money, but requires specific tools.
| Item | Estimated Cost |
|---|---|
| Aftermarket Brake Drums (Pair) | $70 - $107 |
| Brake Shoes & Hardware Kit | $30 - $60 |
| Shop Labor | $150 - $300 |
| Total Professional Installation | $250 - $467 |
Frequently Asked Questions
Do I have to replace brake drums in pairs?
Yes. Always replace both the left and right brake drums at the same time. Replacing only one can cause dangerously uneven braking, making your truck pull to one side when you stop.
What is "machining" a brake drum?
Machining (or "turning") is a process where a thin layer of metal is shaved from the inside of a worn drum to make it smooth again. However, with the low cost of new aftermarket drums, and the fact that machining removes material and reduces the drum's ability to handle heat, it is almost always better and safer to simply replace them.
What other parts should I replace with my drums?
At a minimum, you must replace the brake shoes and the spring/hardware kit. It is also the perfect time to inspect the wheel cylinders (the hydraulic parts that push the shoes out) for any signs of brake fluid leaks. If a leak is present, replace the wheel cylinder.
How difficult is it to replace brake drums myself?
For a DIY mechanic, this job is moderately difficult. You will need a good set of tools, including jack stands, pliers, and possibly special brake spring tools to handle the strong springs inside the drum. The most common challenge is the old drum being rusted onto the hub. Be sure to watch a few tutorial videos for your specific vehicle before you begin.
Technical Specifications
OEM Part Numbers: 18029633 18016007
The most common rear brake drum for the 1992-1997 GMC Jimmy has an inner diameter of 9.5 inches.
