Horn Replacement Guide for the 1992-1997 GMC Yukon
Diagnosing and replacing a faulty horn on your GMT400-platform Yukon is a straightforward job you can do at home.
- Always check the fuse and relay first before buying parts; it's the most common and cheapest fix.
- These Yukons use a dual-horn system; a weak sound usually means one of the two has failed.
- Aftermarket horns from brands like Replacement and Standard Ignition are cost-effective and reliable alternatives to expensive OEM parts.
- The horn assemblies are easy to replace with basic tools, typically held by a single 10mm nut.
Is Your Yukon's Horn Failing?
A non-working horn is a common issue on older trucks like the 1992-1997 GMC Yukon. Usually, the problem is simple to diagnose. The most common symptoms include a completely silent horn, a weak or strange sound, or the horn blowing a fuse every time you press the button.
Common Failure Symptoms
| Symptom | Possible Cause |
|---|---|
| No Sound at All | Blown fuse, bad relay, failed horn switch in the steering column, or both horns have failed. |
| Weak or "Sick" Sound | One of the two horns (either high or low note) has failed, leaving the other to work alone. This can also be caused by corrosion on the electrical connectors or a bad ground connection. |
| Horn Blows Fuse Instantly | This indicates a short circuit. The short could be in the horn assembly itself or in the wiring, which can become brittle and frayed over time. |
| Horn Works Intermittently | Often caused by a failing relay, a loose connection, or a worn contact in the steering wheel horn pad. |
Choosing the Right Aftermarket Horn
When shopping for a new horn, you'll find several options. Original Equipment (OEM) horns from a dealer are an option, but they are often expensive. Aftermarket horns provide the same function and fit at a much lower cost, making them a popular choice for these Yukons.
Pro Tip: Before buying a new horn, always check the 15A or 20A horn fuse and the horn relay in the under-hood fuse box. You can test the relay by swapping it with an identical one from the same fuse box (like the A/C relay) to see if 🎬 Watch this quick guide on testing your horn fuse and relay. the horn starts working. If the relay clicks when the horn is pressed, the problem is likely downstream at the horns themselves.
Aftermarket Brand Tiers
- Replacement Brand: This is a cost-effective choice that offers a direct, OE-style fit. These parts are designed to function like the original and are a good option for budget-conscious repairs. For a simple component like a horn, a "Replacement" brand part is often a practical and affordable solution. 🎬 See a review of Replacement brand parts for your Yukon.
- Standard Ignition (Standard Motor Products): A well-established brand in the aftermarket industry, Standard Ignition often supplies parts that meet or exceed OEM quality. They are known for producing reliable electrical components and are considered a top-tier replacement part by many technicians. Choosing Standard Ignition offers extra peace of mind in the part's quality and longevity.
Cost of Replacing a GMC Yukon Horn
The cost to replace a horn is very reasonable, especially if you do the work yourself. The parts are affordable and labor is minimal.
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Horn | $36.29 - $57.52 |
| New OEM Horn | $86 |
| Shop Labor | $85 - $125 |
A Note on Steering Column Issues
On this generation of GM trucks (GMT400), a faulty horn can sometimes be caused by issues inside the steering column, like a bad horn contact or a failing clockspring. Symptoms like the horn going off when you turn the wheel point directly to this area. While replacing the horns themselves is easy, steering column work is more complex and involves removing the airbag. This should only be attempted if you are confident in your skills or by a professional mechanic.
Frequently Asked Questions
Where is the horn located on a 1992-1997 GMC Yukon?
These trucks have two horns. One is typically located behind the grille, often near the center radiator support. The other is often found behind the passenger-side headlight assembly. You may need to remove the grille or headlight to access them.
Do I need to replace both horns?
Not necessarily. If one horn has failed, you can replace just that one. However, they are sold as high-note and low-note specific parts. If you replace a failed low-note horn with a new high-note horn, the sound will be off. It's often a good idea to replace them in pairs to ensure a proper sound and since the other original horn may not be far from failing as well.
Is replacing the horn a difficult job?
No, replacing the horn assemblies is a very easy job. It usually involves removing a single 10mm nut and unplugging an electrical connector. Accessing the horn is the most challenging part, but it is still a beginner-friendly task that requires basic hand tools.

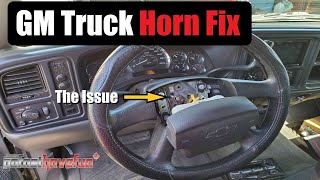

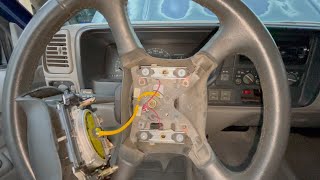

🎬 Follow this step-by-step video to replace your GMT400 horn.Why does my horn blow the fuse when I press it?
A fuse that blows immediately indicates a short circuit in the system. This could be due to an internal failure within the horn itself or damaged wiring that is touching the metal frame of the truck. Unplug both horns and try a new fuse. If it doesn't blow when you press the horn button (the relay will just click), the short is in one of the horn units. If it still blows, the short is in the wiring before the horns.
Helpful Videos
Technical Specifications
System uses a dual horn setup with one high-note and one low-note horn. The circuit is protected by a 15A or 20A fuse and a relay, both typically located in the under-hood fuse box.
