1992-1998 Ford F-150 Door Window Switch: A Comprehensive Guide
If your F-150's window is stuck, don't assume it's the motor. It could just be a simple switch replacement.
- Symptoms like a window working in only one direction often point to a bad switch, not the motor.
- Replacement is a very easy DIY job that usually takes less than 15 minutes and requires only basic tools.
- The driver's side master switch is the most common point of failure due to its frequent use.
- For this F-150 generation, aftermarket switches from brands like Dorman or Standard are a reliable and cost-effective repair solution.
Is Your F-150's Window Switch Failing?
For a truck as reliable as the 1992-1998 Ford F-150, electrical parts like the door window switch are common failure points due to age and use. The driver's side master switch is especially prone to wearing out since it controls all windows and is used most frequently. Symptoms often start small but can become a major inconvenience.
Common Failure Symptoms:
- Intermittent Operation: The window works sometimes and not others. You might have to press the button multiple times to get a response.
- One-Way Travel: The window will roll down but won't roll back up, or vice-versa. This is a classic sign of a bad switch.
- Passenger Window Control Issues: You can't operate a passenger window from the driver's master switch, but it works using the switch on the passenger door itself.
- Complete Failure: One or all windows stop responding entirely from the switch.
- No Sound from Motor: When you press the switch, you hear nothing from the window motor inside the door. This often points to the switch, not the motor.
Pro Tip: Switch or Motor?
Before buying a new switch, it's smart to confirm it's the problem. A simple way to test is to listen. If you press the switch and hear a click or humming from the motor inside the door, the motor is getting power, and the problem might be the window regulator. If you hear nothing at all, the switch is the most likely culprit. 🎬 Watch this guide to diagnose a bad switch versus motor. You can also use a test light to check if power is being sent from the switch when it's activated.
Choosing the Right Aftermarket Switch
For the 1992-1998 F-150, aftermarket window switches offer excellent value and are often just as durable as original parts. The replacement process is very simple and doesn't require specialized tools, making it a great DIY job. Here’s a look at the brands available:
- Standard Ignition (SMP): Often considered a higher-tier aftermarket brand, Standard Motor Products provides quality components that are well-regarded for their fit and function.
- Dorman / Motormite: Dorman is a well-known aftermarket manufacturer that provides a good balance of quality and affordability. They are a popular choice for DIY repairs and are known for making parts that fit and work correctly.
- Rostra Powertrain: Rostra is another established brand in the automotive aftermarket, known for producing a wide range of electronic components.
Ultimately, for a vehicle of this age, any of these aftermarket brands will provide a cost-effective and reliable solution. The difference in daily performance between them is likely negligible.
Cost of Replacing a Door Window Switch
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket Switch | $18.83 - $126.65 |
| Shop Labor | $50 - $100 |
| Total DIY Cost (Aftermarket) | $18.83 - $126.65 |
| Total Shop Cost (Aftermarket) | $68.83 - $226.65 |
Cost estimates are approximate and can vary based on location and specific product.
Recalls and Technical Service Bulletins (TSBs)
While extensive searches were conducted, no specific recalls or TSBs from Ford or the NHTSA were found for the door window switch itself on the 1992-1998 F-150 models. There were recalls for door latches freezing (92V006000) and cruise control deactivation switches (related to brake fluid leaks), but these do not pertain to the window operating switch.
Frequently Asked Questions (FAQ)
How difficult is it to replace the window switch myself?
It is very easy. The switch panel can be gently pried up from the door panel using a trim tool or a flat-blade screwdriver. Once it's up, you disconnect the wiring harnesses, release a few clips holding the old switch in, and snap the new one into place. The entire job can usually be done in under 15 minutes.
🎬 See how to replace the window switch on your F-150.Do I need to disconnect the battery before starting?
While it is not strictly necessary for a simple switch replacement, it is always the safest practice to disconnect the negative battery terminal before working on any part of your vehicle's electrical system. This prevents any accidental short circuits.
My window goes down but won't go up. Is it the switch?
This is a very common symptom of a failed window switch. The internal contacts for the 'up' command have likely worn out or failed, while the 'down' contacts still work. Replacing the switch is the most probable fix.
Can I just clean the switch instead of replacing it?
Some owners have had success disassembling the switch and cleaning the internal metal contact points to restore function. However, this is a delicate process and may only be a temporary fix. Given the low cost of a new aftermarket switch, replacement is the more reliable and long-lasting solution.
Helpful Videos
Technical Specifications

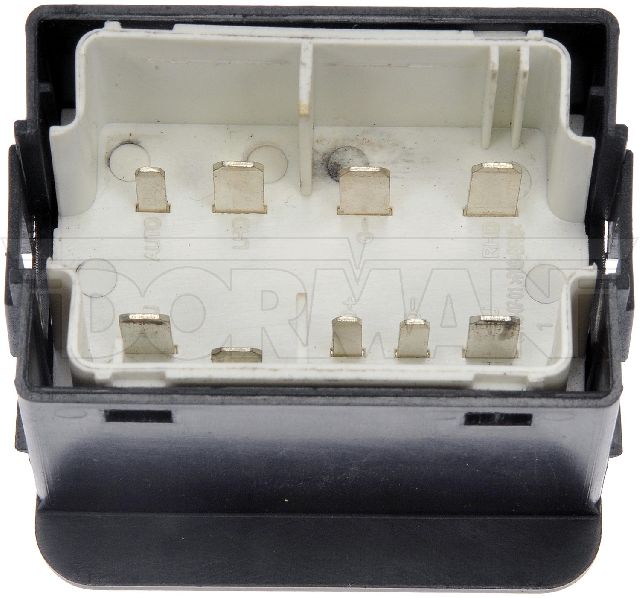

The key specification is the number of switches on the master panel (e.g., for 2-door or 4-door models, though the 92-98 F-150 was primarily a 2-door or extended cab). Ensure the connector matches your vehicle's harness.
