Oldsmobile Achieva Starter Replacement Guide for 1992-1998 Models
Before you replace the starter in your Oldsmobile Achieva, make sure it's not one of these common, and less expensive, problems.
- For 1996-1998 models, rule out the critical ignition switch recall (NHTSA ID: 02008) which can mimic starter failure and poses a fire risk.
- Check for a flashing 'Security' light on the dash, as a common anti-theft system fault can also cause a no-crank condition.
- Replacement is much easier on V6 models; the 4-cylinder 'Quad 4' engine provides very tight access, increasing labor time and difficulty.
- A rapid clicking sound almost always means you have a weak battery, not a bad starter.
Is It Really Your Starter? Check These Achieva-Specific Issues First
On the 1992-1998 Oldsmobile Achieva, several other problems can mimic a failed starter. Diagnosing these first can save you from buying a part you don't need.
CRITICAL: 1996-1998 Ignition Switch Recall
GM issued a safety recall for a faulty ignition switch on 1996, 1997, and 1998 models (NHTSA ID: 02008 / 04002). A failing switch can prevent the car from starting, acting exactly like a dead starter. More seriously, the switch can overheat, melt, and potentially cause a fire in the steering column, even with the engine off and the key removed. Before replacing your starter, verify if this crucial recall work has been performed on your vehicle.
Check the "Security" Light
Many GM cars of this era, including the Achieva, can have issues with the Vehicle Anti-Theft System (VATS or Pass-Key). If you turn the key and the car doesn't crank, check your dashboard for a flashing "Security" light. This is a very common problem that indicates the anti-theft system is preventing the starter from getting power, and it is not a starter failure.
Also, always check the basics first. A simple test is to turn on your headlights and try to start the car. If the headlights dim significantly, your battery is weak and likely the culprit. If they stay bright and you hear a click or nothing, the starter is a more likely suspect.
Symptoms of a Failing Starter
- Single Loud Click: You turn the key and hear one solid 'click' from the engine bay, but the engine doesn't turn over. This often points to a bad starter solenoid, which is part of the starter assembly.
- No Sound at All: Your dashboard lights and radio work, but turning the key results in silence. This can mean the starter motor or solenoid has completely failed.
- Slow, Struggling Crank: The engine turns over very slowly, as if the battery is dying. While this can be a weak battery, it's also a sign of a worn-out starter motor drawing too much power.
- Grinding Noise: A harsh grinding or whirring sound during or after cranking indicates the starter gear is not meshing correctly with the engine's flywheel, or that the teeth are damaged.
- Intermittent Starting: The car starts fine one day but refuses to crank the next. This suggests a developing dead spot on the starter motor's internal windings.
Choosing the Right Aftermarket Starter
For a vehicle of this age, new original equipment (OEM) starters are generally not an option. Your choice will be between new aftermarket starters and remanufactured units. The brands available offer different tiers of quality and price.

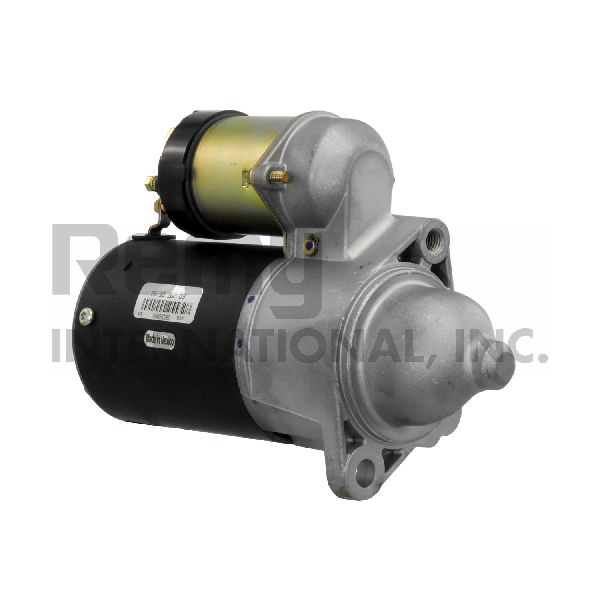

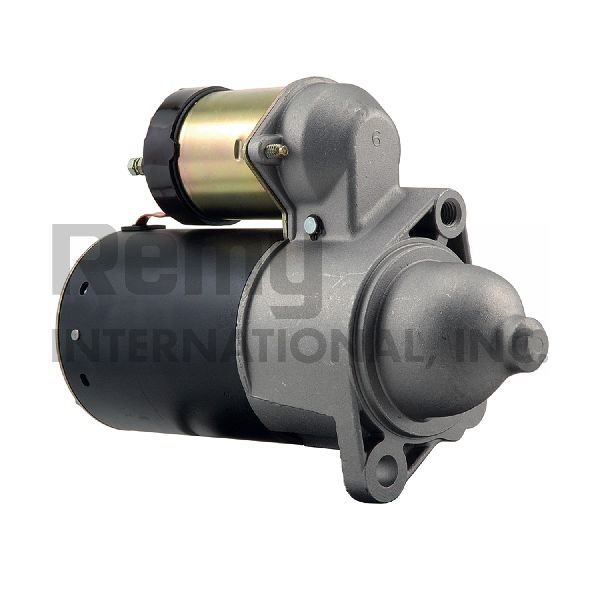

- Premium Brands (Bosch, Remy): Bosch is a well-regarded OEM supplier and their aftermarket parts are known for high quality and reliability. Remy (formerly Delco-Remy) has a long history with GM and is also considered a top-tier, reliable choice. These brands are often worth the extra cost for peace of mind.

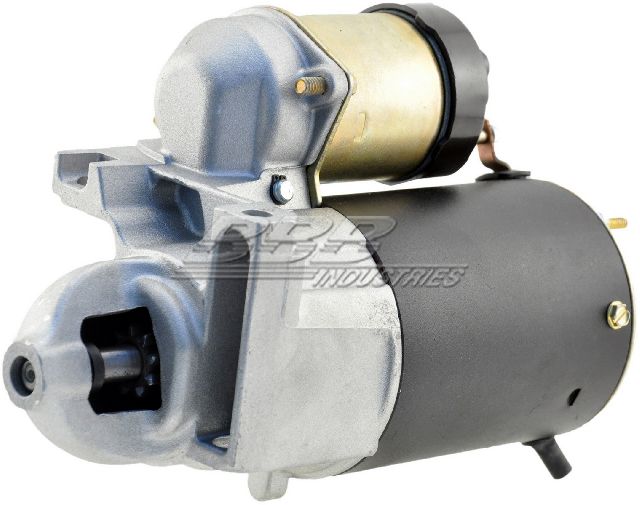

- Standard Brands (WAI Global, BBB Industries): These brands offer a good balance of value and performance for daily driving. They are a solid choice for a budget-conscious repair. While some mechanics prefer new parts from any brand over remanufactured ones, a quality remanufactured unit from a top brand can sometimes be built from a more durable OEM core.
Cost of Replacing an Oldsmobile Achieva Starter
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket Starter | $122 - $276 |
| Shop Labor | $150 - $450 |
Note: Labor costs can vary significantly based on your engine type. The 4-cylinder engine requires more labor than the V6.
Starter Replacement on the Oldsmobile Achieva
Replacing the starter is a manageable DIY job, but the difficulty depends heavily on which engine your Achieva has. Always disconnect the negative battery terminal before starting work.
- For V6 Engines (3.1L): The job is relatively straightforward. The starter is located on the front of the engine and can be accessed from underneath the car.
- For 4-Cylinder Engines (2.3L/2.4L Quad 4): This is a more difficult and time-consuming job. The starter is in a tight spot, and you may need to remove components like the cooling fan assembly and oil filter to gain enough clearance to remove it.
Frequently Asked Questions (FAQ)
Do I need to use shims when installing the new starter?
Possibly. Some GM vehicles from this era use thin metal shims to ensure proper alignment between the starter gear and the flywheel. When you remove the old starter, look carefully to see if any shims are present between the starter and the engine block. If so, they must be reinstalled with the new starter.
My car just makes a rapid clicking sound. Is that the starter?
A rapid, machine-gun-like clicking is almost always a sign of a weak or dead battery, not a bad starter. The starter is trying to engage but doesn't have enough power. Try jump-starting the car; if it starts, your issue is with the battery or charging system.
Can a bad starter drain my battery?
Yes. A failing starter with an internal short or one that is struggling to turn the engine can draw excessive current from the battery, causing it to drain quickly during starting attempts. However, a bad starter typically won't drain the battery while the car is turned off, unlike a parasitic electrical draw from another component.
What tools are needed to replace the Achieva starter?
You will need a good socket and ratchet set, extensions, a floor jack, and jack stands to safely work under the vehicle. For the 4-cylinder models, you may need additional tools to remove the cooling fans and other components that are in the way.
Technical Specifications
OEM Part Numbers: 10455067 10465493 19136227 10465096
Voltage: 12V, Rotation: Clockwise (CW), Number of Teeth: 9. Note that newer aftermarket starters may be a smaller, gear-reduction design compared to the larger original unit.
