Your Guide to the 1992-1999 GMC P3500 Brake Light Switch
Having brake light or cruise control problems on your P3500? The brake light switch is a common and critical failure point.
- A faulty brake light switch is a critical safety issue; replace it immediately if your brake lights are not working.
- Symptoms include brake lights staying on or not working, cruise control failure, and being unable to shift out of park.
- Replacement is a simple, low-cost DIY job, with the main difficulty being the tight access space under the dashboard.
- Quality aftermarket brands like Standard Ignition and Rostra offer reliable alternatives to more expensive OEM parts.
Signs of a Failing Brake Light Switch
A bad brake light switch can cause several noticeable and dangerous problems. The most common symptom is that your brake lights either won't turn on at all or they stay on constantly, even when your foot is off the pedal. A switch that stays on can drain your battery overnight. You might also notice flickering brake lights as the switch begins to fail internally.
Another key symptom involves your cruise control. If the cruise control won't turn on or shuts off unexpectedly, a faulty brake light switch is a likely culprit. Because the switch is part of the safety system that lets you shift out of park, a complete failure can leave your truck stuck and unable to move.
Safety First
Driving without functioning brake lights is extremely dangerous and illegal. It significantly increases your risk of being rear-ended. If you suspect your brake light switch has failed, inspect and replace it immediately.
Choosing the Right Aftermarket Brake Light Switch
For a straightforward part like a brake light switch on a P3500, aftermarket options provide excellent value. You don't necessarily need to pay extra for a dealership OEM part when high-quality aftermarket brands are available.
- Standard Ignition (SMP): Often considered a top-tier aftermarket brand, Standard Motor Products parts are well-regarded for their quality and reliability, often meeting or exceeding original specifications. They are a solid choice for a dependable repair.
- Rostra Powertrain: Rostra is known for manufacturing quality electronic components and holds high-level quality certifications like IATF-16949. They are a trusted name in both OE and aftermarket parts, making them a reliable option.
- Dorman: Dorman is a popular brand that offers a huge catalog of parts, often at a very budget-friendly price. While their quality can sometimes be inconsistent, they are known for making direct-fit replacement parts that get the job done. For a simple switch, Dorman can be a cost-effective solution.
Pro Tip: Before ordering, visually inspect the switch on your truck. The P3500 had a long production run, and small changes can occur. Matching the new part to the old one by sight is the best way to ensure you get the right one.
Installation Overview
Replacing the brake light switch is a job most DIY mechanics can handle. The switch is located on the brake pedal arm, up under the dashboard. Access is often tight, requiring you to work in an uncomfortable position on your back. The process typically involves:
- Disconnecting the negative battery terminal.
- Locating the switch on the brake pedal assembly.
- Removing a retaining clip that holds the switch in place. This clip can be the most challenging part of the job.
- Unplugging the electrical connector.
- Sliding the old switch off the pedal assembly.
- Installing the new switch and reconnecting everything in reverse order.
Frequently Asked Questions
Where is the brake light switch located on my P3500?
The brake light switch is mounted to the brake pedal support bracket, located up under the driver's side dashboard. You will need to follow the brake pedal arm up from the floor to find it.
Can I replace the brake light switch myself?
Yes, this is a DIY-friendly job for most people with basic tools. The main challenge is the awkward position required to access the switch under the dash. No special tools are typically needed, though a small screwdriver or pick can help with the retaining clip.
What happens if I ignore a bad brake light switch?
Ignoring a bad switch is a serious safety risk. Your brake lights may not work, leaving you vulnerable to a rear-end collision. You could also be unable to shift out of park, or your cruise control may become non-functional.
Are there any recalls for the brake light switch on this truck?
Searches for the 1992-1999 GMC P3500 did not show any specific recalls for the brake light switch itself. Recalls are more common on newer vehicles for different brake system components. Always check the NHTSA website with your vehicle's VIN for the most up-to-date recall information.

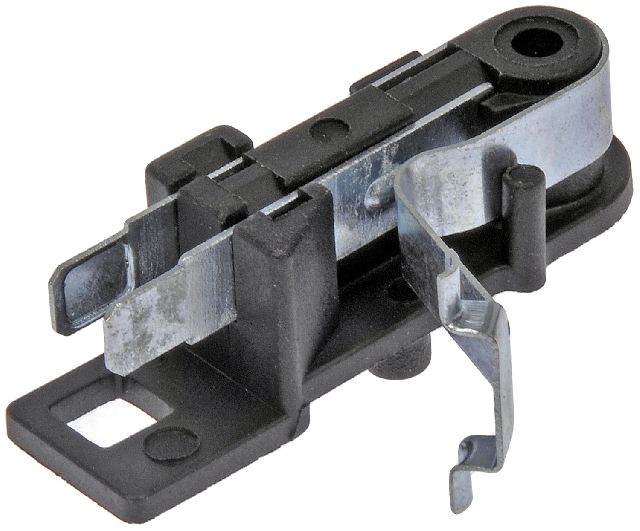

Technical Specifications
OEM Part Numbers: 15861245
The brake light switch for this vehicle is a mechanical switch activated by the movement of the brake pedal arm. It typically features a multi-pin connector to control both the brake light circuit and the cruise control disengage function.
