A/C Condenser Replacement Guide for the 1992-1999 GMC Yukon
Get your classic Yukon's air conditioning blowing ice-cold again by choosing the right A/C condenser.
- You MUST replace the accumulator/drier and orifice tube when replacing the condenser.
- The A/C system must be professionally evacuated before starting work and recharged after completion.
- The most common cause of failure is physical damage from road debris causing a leak.
- For this part, reputable aftermarket brands like Denso, Spectra, and CSF offer reliable performance and great value.
Symptoms of a Failing A/C Condenser
A bad A/C condenser on your 1992-1999 Yukon will make itself known, especially during hot weather. Here are the most common signs of failure:
- Warm Air from Vents: This is the most obvious symptom. If the condenser is clogged or has a leak, it can't cool the refrigerant, resulting in warm or slightly cool air instead of cold air.
- A/C Works While Driving, But Not at a Stop: If your A/C gets warmer when you're idling at a stoplight but cools down when you're moving, it can be a sign of a failing condenser. This happens because the condenser relies on airflow to work, and a damaged or clogged unit struggles without the extra air forced through it at driving speeds.
- Visible Leaks or Damage: Because it's at the front of the vehicle, the condenser is vulnerable to rocks and road debris. You might see bent fins or physical damage. A leak will appear as an oily, grimy residue on the condenser itself, which is the refrigerant oil escaping with the refrigerant gas. Shops often use a UV dye to make these leaks easier to spot.
Compressor Failure Can Contaminate the Condenser
If your A/C compressor failed and sent metal shavings through the system (a condition known as "black death"), you must replace the condenser. Flushing a contaminated condenser is often impossible, and the debris will destroy your new compressor in short order.
Choosing the Right Aftermarket A/C Condenser
For a vehicle like the '92-'99 Yukon, aftermarket condensers offer excellent value. Unlike complex electronics, a condenser is a relatively simple heat exchanger. Most aftermarket brands will perform well, as many are produced in just a few factories and rebranded.
- Top-Tier Aftermarket (Denso): Denso is a highly respected brand, often an original equipment manufacturer for many car companies. Choosing a Denso condenser is the closest you can get to OEM quality without the high price tag.

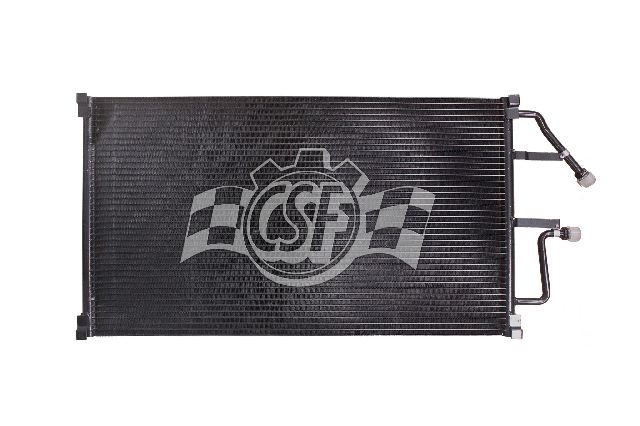

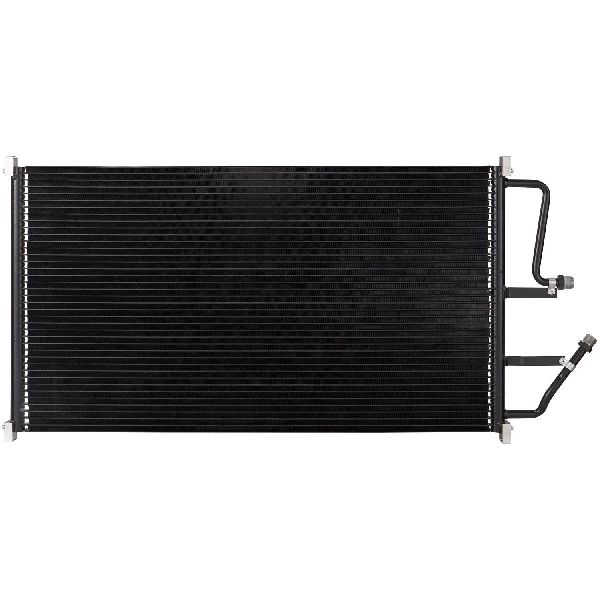

- Mid-Tier Value (Spectra, CSF Radiator): Brands like Spectra and CSF offer a great balance of price and quality. They are well-known in the cooling system world and are a reliable choice for most repairs.
- Budget-Friendly Options (Global Parts, Pro Parts, One Stop Solutions): These brands provide a functional replacement at a lower cost. For a part like a condenser, they are a viable option if budget is the primary concern.
Check Refrigerant Type on Early Models
The switch from R12 to R134a refrigerant happened around 1993-1994. Before ordering parts or servicing the system, check the labels under the hood of your Yukon to confirm which refrigerant your A/C system uses.
Replacement Cost for a 1992-1999 GMC Yukon
The cost to replace the A/C condenser can be broken down into parts and labor. While you can save money by doing the installation yourself, you will still need a shop to handle the refrigerant.
| Item | Estimated Cost |
|---|---|
| New Aftermarket A/C Condenser | $121 - $165 |
| Shop Labor (Installation) | $240 - $550 |
| A/C Evacuate & Recharge Service | $100 - $200 |
| Total Professional Replacement | $461 - $915 |
Frequently Asked Questions (FAQ)
Can I replace the A/C condenser myself?
Yes, the mechanical part of the replacement is a DIY-friendly job for someone with basic tools. It involves removing the grille and a few brackets. However, it is illegal to release refrigerant into the atmosphere. You MUST have a certified shop use a special machine to evacuate the refrigerant before you start work, and then have them vacuum-test and recharge the system after you've installed the new parts.
Do I have to replace other parts at the same time?
Yes. Whenever you open the A/C system, you MUST replace the A/C accumulator/drier and the orifice tube. The accumulator contains a desiccant that absorbs moisture, and it can only be used once. The orifice tube is a small filter that can get clogged. Failing to replace these two inexpensive items will cause your new parts to fail and will void the warranty on your new condenser and/or compressor.
What is an orifice tube and where is it?
The orifice tube is a small, filtered device that meters the flow of refrigerant into the evaporator. On these GMT400 trucks, it is located inside the high-pressure liquid line, which is the smaller diameter aluminum tube running from the condenser to the evaporator. You will need a special tool to remove it from the line.
What's the difference between R12 and R134a refrigerant?
R12 was the standard refrigerant used until the early 1990s. It was phased out for environmental reasons and replaced by R134a. The 1992-1994 model years were a transition period. The systems are not compatible; they use different oils and have different service port fittings. Always check the under-hood stickers on your specific truck to confirm which system you have before buying parts or refrigerant.
Technical Specifications
OEM Part Numbers: 1563666 3053293 52458858 52460894
Fits 1992-1999 GMC Yukon and equivalent Chevrolet/Cadillac models. Located at the front of the vehicle, ahead of the radiator. Compatible with either R12 or R134a refrigerant, depending on the model year.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
