A Guide to the Starter for the 1992-1999 GMC Yukon
Solving the mystery behind the 'click, no-start' and other common starting issues on your GMT400 Yukon.
- Always check your battery and cable connections first; they are the most common cause of starting issues.
- A 'click, no-start' when the engine is hot is a classic sign of starter heat soak, a very common issue on these trucks.
- Replacing the starter is a straightforward DIY job, typically taking 1-2 hours with basic tools.
- Consider upgrading to a gear-reduction starter or adding a heat shield to permanently solve heat-related starting problems.
Is Your Yukon's Starter Failing?
A starter motor on the 1992-1999 GMC Yukon rarely fails without giving you some warning signs. Before you get stranded, pay attention to these symptoms:
🎬 Watch: Common symptoms and warning signs of a failing starter- Single Loud Click, Then Nothing: This is the most common sign. You turn the key, hear one loud 'CLACK' from under the hood, but the engine doesn't crank. This usually means the starter's solenoid is working, but the motor itself is failing to turn.
- Slow, Labored Cranking: The engine turns over, but it sounds weak and much slower than normal, as if the battery is dying.
- Grinding or Whirring Noises: If you hear a grinding sound when trying to start the engine, or a high-pitched whirring after the engine has started, it could mean the starter gear is not meshing correctly with the flywheel or is failing to retract.
- No Sound at All: While this can be a dead battery or a bad ignition switch, it can also mean the starter has completely failed.
Known Issue: Starter Heat Soak
A very common problem on these GMT400-platform trucks is "heat soak." The starter is located near the hot exhaust manifold. After a long drive, especially in warm weather, heat radiates to the starter and increases its internal electrical resistance. This can prevent it from working, leaving you with the classic 'click, no-start' symptom. After the truck cools down for 30-60 minutes, it will often start right up again. The best solutions are to install a starter heat shield or upgrade to a high-torque gear reduction starter, which is often less susceptible to heat issues.
Choosing the Right Aftermarket Starter
When replacing the starter on your Yukon, you have several choices. Since new OEM starters from GM for a vehicle this age can be expensive or unavailable, a new aftermarket part is the most common choice. Here’s a breakdown of the quality you can expect from popular brands.
Tier 1: Premium Aftermarket (Denso)
Brands like Denso are often original equipment manufacturers for many car brands and are known for exceptional quality and reliability. Choosing a new Denso starter is often seen as an upgrade over the original part. They are designed for maximum cranking torque in all weather conditions and are built to last. Expect to pay a premium, but the quality and longevity are typically worth the investment.

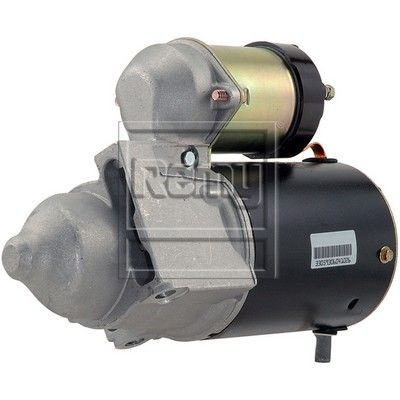

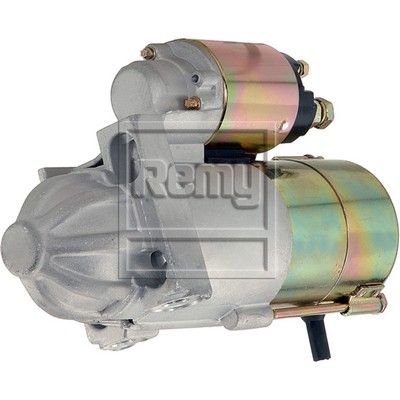

Tier 2: Quality Aftermarket (Remy)
Remy (formerly Delco-Remy) has a long history in automotive electrical parts. They are a well-respected brand that offers a solid balance of quality, performance, and price. A new Remy starter is a reliable choice for a daily driver and is considered a safe bet by many professional mechanics.

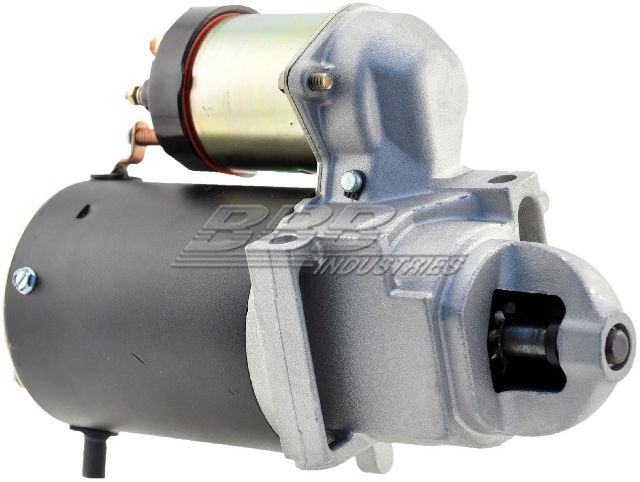

Tier 3: Standard Aftermarket (WAI Global, BBB Industries)
Brands like WAI Global and BBB Industries are major players in the aftermarket and offer a cost-effective solution. These parts meet standard specifications and can be a good choice if budget is the primary concern. While many users have no issues, the long-term durability may not match that of the premium brands. They provide a functional replacement that gets the job done.
Pro Tip: Check Your Battery First!
Before you spend money on a new starter, make sure your battery is fully charged and the terminals are clean and tight. A weak or dead battery is the number one cause of starting problems and can mimic the symptoms of a bad starter 🎬 Watch: How to diagnose if your starter is actually the problem, especially the rapid clicking noise.
Cost of Replacing a 1992-1999 GMC Yukon Starter
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket Starter | $108 - $348 |
| Remanufactured Starter | $80 - $200 |
| Shop Labor | $125 - $250 |
| Total Estimated Cost | $233 - $598 |
Cost estimates are approximate and can vary based on location, brand, and vehicle condition.
Frequently Asked Questions
Is replacing the starter on a '92-'99 Yukon a DIY job?
Yes, for someone with basic mechanical skills and tools, this is a very manageable job. The starter is held on by two main bolts and has a couple of electrical connections. It's located under the truck on the passenger side. The entire job typically takes 1-2 hours.

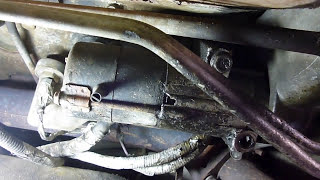

🎬 See this step-by-step starter replacement walkthrough for your GMCWill I need to shim the new starter?
Maybe. Shims are thin metal plates used to adjust the distance between the starter gear and the flywheel. Some aftermarket starters, especially gear-reduction models, may require shims to prevent grinding noises. It's important to check the clearance during installation according to the new part's instructions.
Are there any recalls for the starter on this Yukon?
No. Searches of the National Highway Traffic Safety Administration (NHTSA) database show no safety recalls specifically for the starter motor on the 1992-1999 GMC Yukon.
What's the difference between a regular starter and a gear-reduction starter?
The original starter on your Yukon is likely a larger, direct-drive model. Many modern aftermarket replacements are smaller, lighter gear-reduction (or high-torque) starters. These use internal gears to multiply the motor's torque, allowing them to be more efficient, draw less current, and often resist heat soak better, making them a popular upgrade for these trucks.
Helpful Videos
Technical Specifications
OEM Part Numbers: 10465167 19136219 89017631
The 1992-1999 GMC Yukon typically uses a starter with a 2-bolt mounting pattern, located on the passenger side of the engine. Aftermarket options include both direct-drive and high-torque gear-reduction designs. Ensure you use the correct starter bolts for your specific year to prevent damage.
