A Guide to Replacing the Starter on a 1992-1999 Oldsmobile 88
If your Oldsmobile 88 won't crank, the starter is a likely suspect, but it's not the only one.
- Before replacing the starter, always check for a flashing 'Security' light, which points to the common anti-theft (VATS) issue.
- A single 'click' is a classic symptom, but also check for loose or corroded battery terminals first.
- Replacement is a straightforward DIY job requiring basic tools and safely lifting the vehicle.
- New aftermarket starters are often smaller and lighter than the original, making installation easier.
Is Your Oldsmobile 88 Starter Failing?
A no-start condition is a common problem for any aging vehicle. On the 1992-1999 Oldsmobile 88, the starter is a frequent cause, but other issues can show the exact same symptoms. Before spending money on a new starter, it's critical to rule out these other common problems first.
Check This First: The VATS Security System
Many starting issues on these cars are not caused by the starter motor. A very common problem is the Vehicle Anti-Theft System (VATS). If you try to start the car and see a flashing "Security" light on the dashboard, the anti-theft system is likely preventing the starter from getting power. This is a well-known issue and should be investigated before you decide 🎬 Watch: How to troubleshoot and bypass the VATS security system to replace the starter.
Symptoms of a Bad Starter
If you've ruled out the battery and the VATS system, look for these classic signs of a failing starter:
- Single Loud Click, Then Nothing: When you turn the key, you hear one solid click from the engine bay, but the engine doesn't turn over. This usually means the starter's solenoid is working, but the motor itself has failed.
- No Sound at All: You turn the key and hear nothing, even though your lights and radio work. This can point to a completely failed starter or a problem in the electrical circuit leading to it.
- Whirring or Grinding Noise: A high-pitched whirring sound indicates the starter motor is spinning but its gear isn't engaging the engine's flywheel. A harsh grinding noise could mean the starter gear or the teeth on the flywheel are damaged.
- Intermittent Starting: The car starts fine on some attempts but fails on others. This can be a sign of worn electrical components inside the starter or a poor electrical connection.
Choosing the Right Aftermarket Starter
For a vehicle of this age, a new aftermarket starter is often the most practical and cost-effective choice. The original ACDelco parts are excellent but can be hard to find new. When choosing an aftermarket brand, quality can vary.

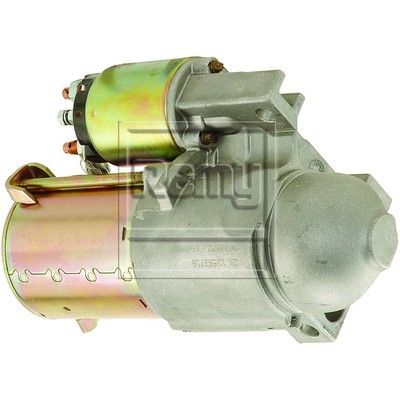

- Premium Brands (Bosch, Remy): These companies are well-known manufacturers. New parts from these brands are generally considered reliable choices for a daily driver. While remanufactured units are available, forum discussions suggest that new parts often have better reliability out of the box.
- Standard/Economy Brands (WAI Global, BBB Industries): These brands offer a more budget-friendly option. However, owner feedback is mixed. Some have used them without issue, while others report parts that were dead on arrival, failed quickly, or even had incorrect fitment. Buying from this tier can be a gamble, so check warranty policies carefully.
Many modern aftermarket starters for the Oldsmobile 88 are smaller and lighter than the bulky original factory unit. This gear-reduction design is more efficient and makes installation much easier due to better clearance.
Known Issues and Recalls
Searches of the National Highway Traffic Safety Administration (NHTSA) database show no recalls specifically for the starter motor on the 1992-1999 Oldsmobile 88. However, be aware that other electrical issues, like a faulty ignition switch or corroded battery terminals, can mimic starter failure. Always check that the battery terminals are clean and tight before diagnosing a bad starter.
Frequently Asked Questions
Is replacing the starter on an Oldsmobile 88 a DIY job?
Yes, for those with basic mechanical skills and tools, this is a very manageable DIY job. It is accessed from underneath the car and typically takes less than two hours.
What tools are needed to replace the starter?
You will need a jack and jack stands to safely support the vehicle. Basic hand tools are required, including a socket set with 8mm, 10mm, 13mm, and 15mm sockets, a ratchet, 🎬 Watch: A helpful walkthrough of the 3.8 engine starter replacement and extensions.
My car just clicks once. Is it definitely the starter?
Not always. While a single click is a classic symptom of a bad starter, it can also be caused by a very low battery, corroded battery cables, or a bad starter relay. On this specific car, a problem with the VATS anti-theft system is also a very common cause.
What is 'heat soak' and does it affect this starter?
Heat soak is when a starter absorbs too much heat from a hot engine, causing it to fail until it cools down. While this is a known issue on some older GM V8 engines, it is not a widely reported, common problem for the 3.8L V6 in the 1992-1999 Oldsmobile 88.
Helpful Videos
Technical Specifications
OEM Part Numbers: 12563718
The starter is located on the front side of the engine, where it meets the transmission. It is held in place by two 15mm bolts. The electrical connections consist of a large battery cable secured by a 13mm nut and a smaller solenoid wire secured by an 8mm nut.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
