Ignition Coil Guide for 1992-2000 BMW 325i (E36)
Keep your E36's M50 engine running smoothly by understanding and choosing the right ignition coils.
- A failing ignition coil will cause engine misfires, a rough idle, and a Check Engine Light (P0301-P0306).
- Check for oil leaks from the valve cover gasket; this is a primary cause of premature coil failure on the E36.
- Replacement is a very easy DIY job that takes less than an hour with basic tools.
- For best results, stick with OEM-quality brands like Bosch or NGK and replace all six coils at once.
Understanding Ignition Coil Failure in Your E36 325i
Ignition coils on the 1992-1995 BMW 325i (equipped with the M50 engine) are robust but will eventually fail due to age and heat. Constant exposure to engine heat and vibration can cause the plastic housing to crack and the internal windings to break down. Another very common cause of failure is an oil leak from the valve cover gasket. Leaking oil can seep into the spark plug wells, soaking the coil boots and causing misfires.
Symptoms of a Bad Ignition Coil
When an ignition coil starts to fail, the signs are usually obvious:
- Engine Misfires: The engine may stutter, shake, or hesitate, especially at idle or during acceleration.
- Check Engine Light: A misfire will trigger the check engine light. Common codes include P0300 (random misfire) or P0301-P0306, where the last number points to the specific misfiring cylinder.
- Rough Idle: Your car may vibrate or shake noticeably when stopped.
- Loss of Power: Acceleration will feel sluggish as the engine is not running on all cylinders.
- Reduced Fuel Economy: Your car will burn more gas as the engine's computer tries to compensate for the power loss.
- Difficulty Starting: A weak spark can make the engine hard to start, especially when cold.
Choosing the Right Aftermarket Ignition Coil
You don't need to buy the most expensive coil, but avoiding the cheapest no-name options is a wise move. For the E36, owner experiences and mechanic recommendations point to a few trusted brands.
Brand Tiers for Your BMW 325i
Tier 1: OEM & Premium Aftermarket

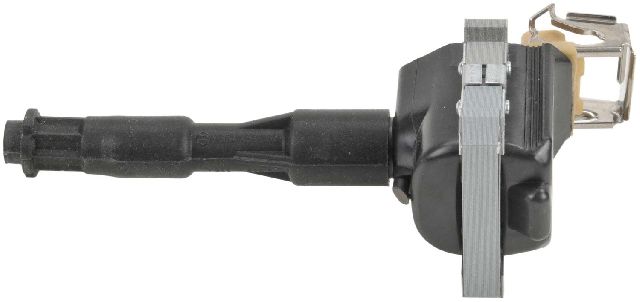

- Bosch: Bosch was the original equipment supplier for many BMW ignition components. Choosing Bosch is essentially getting the same quality as the part your car came with. They are a trusted, reliable choice.
- NGK: Known for their high-quality spark plugs, NGK also produces excellent ignition coils. Many owners use NGK coils and plugs together with great results.
Tier 2: Quality Aftermarket
- Delphi: Delphi is another major OEM supplier and a reputable brand in the aftermarket. They are a solid alternative to Bosch and are often used by owners when Bosch coils have been reported to have issues on other models.
- Standard Ignition (SMP): A well-known aftermarket manufacturer that offers a reliable product.

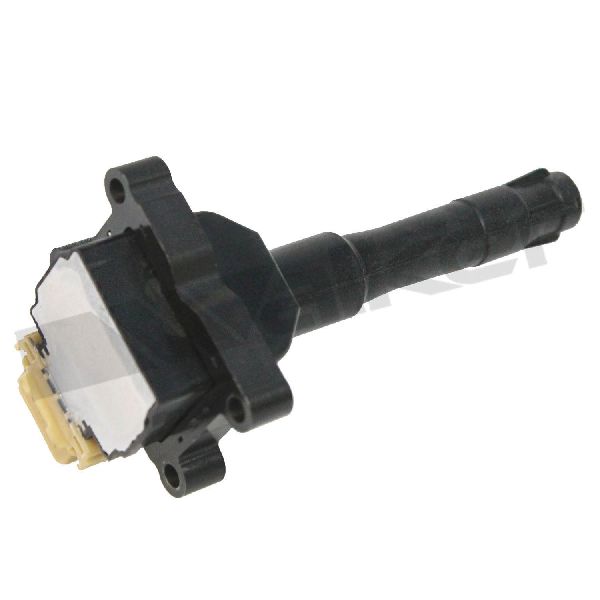

- Walker Products: Offers a dependable aftermarket option that meets OEM specifications.
Tier 3: Budget-Friendly

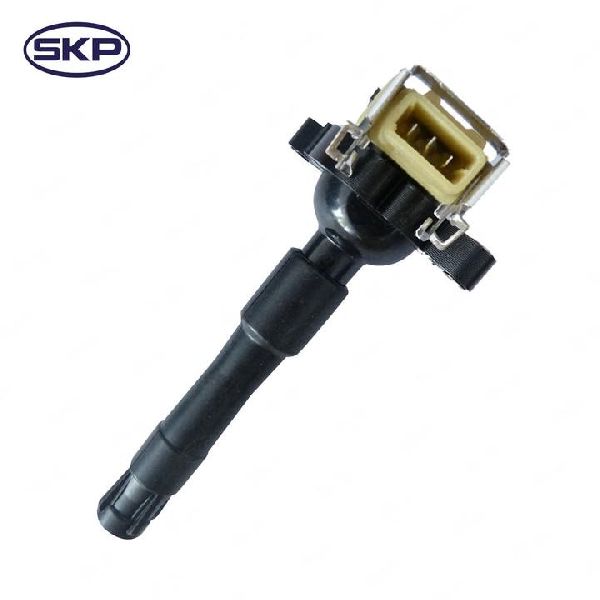

- DriveWire, Global Parts, Skyward, URO Parts: These brands offer a lower-cost alternative. While they can get your car back on the road, their long-term durability may not match that of premium brands. URO Parts is a common budget brand in the European car community. They can be a viable option if cost is the primary concern, but be aware that consistency can vary.
| Part Type | Estimated Cost (Per Coil) | Notes |
|---|---|---|
| New OEM (Bosch) | $50 - $65 | Original equipment quality, highly recommended. |
| New Aftermarket (Premium) | $45 - $60 | Brands like NGK and Delphi offer similar performance to OEM. |
| New Aftermarket (Budget) | $28 - $40 | Cost-effective but may have a shorter lifespan. |
| Shop Labor (All 6) | $75 - $110 | This is a very simple DIY job, but shop labor is also low. |
Frequently Asked Questions (FAQ)
Do I have to replace all six ignition coils at once?
It is strongly recommended. Ignition coils wear out at a similar rate. If one has failed due to age, the others are likely not far behind. Replacing them all at once ensures consistent performance and prevents you from having to do the job again in a few months.
Is replacing the ignition coils a DIY job?
Yes, this is one of the easiest DIY jobs on an E36 325i. It requires basic tools (a ratchet and a 10mm socket) and can be completed in under an hour. 🎬 Watch this quick step-by-step guide to replacing your E36 coils. The coils are located directly on top of the engine under a plastic cover.
What are the OEM part numbers for my 325i ignition coil?
Part numbers can change over time. Common OEM numbers that fit this vehicle include 12131748018, 12139067830, and Bosch's part number 0221504029. Always verify fitment with your specific vehicle before ordering.
Are there any recalls for E36 ignition coils?
Searches of the NHTSA database and TSBs did not show any specific ignition coil recalls for the 1992-1995 E36 325i. There were recalls for Bremi-brand coils on later model BMWs, but these do not apply to this specific year range.
What is the most common cause of coil failure on this car?
Aside from normal age and heat cycles, the most common preventable cause is an oil leak from the valve cover gasket. Oil pools in the spark plug wells and degrades the rubber boot on the ignition coil, leading to misfires. If you see oil when you pull out the coils, you must replace the valve cover gasket to fix the root cause.
Helpful Videos
Technical Specifications
OEM Part Numbers: 12131748018 12139067830 12137599219 12131703227
This vehicle uses one 'pencil' or 'coil-on-plug' style ignition coil per cylinder, for a total of six coils. The coils are held to the valve cover by two 10mm nuts and connect directly to the spark plug.
