Guide to the 1992-2000 GMC C3500 HVAC Blower Control Switch
If your truck's fan speeds are dead or acting up, the blower control switch is a likely suspect—here's how to choose the right replacement part.
- A burning plastic smell from the dash is a serious fire hazard; stop using the fan and inspect the switch and wiring immediately.
- If your fan only works on the 'High' setting, the problem is almost certainly the blower motor resistor, not the switch.
- For a long-lasting repair, it is highly recommended to replace the blower motor, blower motor resistor, and the control switch together.
- The switch is a small part on the back of the main HVAC control panel; you don't need to replace the entire unit.
Is Your C3500's Blower Control Switch Failing?
On these GMT400 trucks, the blower motor switch handles a significant electrical load. After decades of turning the fan up and down, the internal metal contacts can wear out or burn, or the electrical connector on the back can overheat and melt. This is a very common failure point. Look for these specific signs:
- Erratic Fan Speeds: The fan may cut in and out, change speeds on its own, or only work if you jiggle the knob.
- Some Fan Speeds Are Dead: You might lose one or more of the lower settings, while other speeds still work.
- No Fan at All: If the switch fails completely, the blower motor may not turn on at all, leaving you with no airflow.
- Burning Plastic Smell: A sharp, electrical burning odor coming from your dash when the fan is on is a serious warning. This indicates the switch or its wiring is overheating and melting, creating a fire hazard.
- Visible Damage: If you pull the dash panel, you may see a melted or browned plastic connector on the back of the HVAC control unit where the switch plugs in.
Fan Only Works on High? It's Probably Not the Switch.
The most common HVAC problem in these trucks is the fan only working on the highest setting. This is a classic symptom of a failed blower motor resistor, not the control switch. However, the resistor often fails because the original, aging blower motor is drawing too much electrical current, causing the resistor to burn out. This same high current can also melt the control switch. For a permanent fix, most mechanics recommend replacing the blower motor, blower motor resistor, and the blower control switch (or at least its connector) at the same time.
Choosing the Right Aftermarket Switch
For a work truck like the 1992-2000 C3500, a new aftermarket blower control switch is a practical and affordable choice. The original OEM switch design has even been criticized by some owners for being undersized for the electrical load it has to handle. This means a quality aftermarket part is not a downgrade.
- Brand Reputation: Brands like Four Seasons are well-known in the aftermarket and have been reported by users to provide reliable service. Other brands like Rostra Powertrain are also available, though user reviews and forum mentions are less common for this specific part. ACDelco is the OEM supplier and is also a reliable choice.
- Switch vs. Full Control Unit: The blower control switch is a small, individual part that bolts to the back of the main HVAC control unit. You do not need to buy the entire expensive control panel unless the plastic housing itself is physically broken.
Pro Tip: Inspect the Wiring
When you replace the switch, closely inspect the wiring connector that plugs into it. If the plastic is melted, brittle, or shows any signs of heat damage, you must replace the connector pigtail as well. Splicing in a new pigtail ensures a solid connection and prevents the new switch from failing prematurely.
Replacement Cost
Replacing the blower control switch is an inexpensive repair, especially if you do it yourself. The parts are affordable, and the labor is straightforward.
| Part or Service | Estimated Cost |
|---|---|
| New Aftermarket Switch | $16 - $41 |
| New OEM (ACDelco) Switch | $20 - $35 |
| Used OEM (Entire Control Unit) | $25 - $75 |
| Shop Labor | $90 - $160 |
Frequently Asked Questions (FAQ)
Is replacing the blower control switch a difficult DIY job?
No, this is a beginner-friendly job that most owners can do in under an hour with basic tools. The process involves carefully prying off the dash bezel, unplugging the HVAC unit, and unbolting the old switch from the back of the panel with a small socket (usually 5.5mm or 7mm).
Why should I replace the blower motor and resistor at the same time?
The switch and resistor are often victims of a failing blower motor. An old motor draws too much power, overheating and burning out the resistor (causing the 'high-only' issue) and the switch contacts. Replacing only the switch or resistor is a temporary fix; the root cause (the old motor) will likely cause the new parts to fail again quickly.
Can I just replace the control knobs?
Yes, if your switch works but the plastic knob is broken or missing, you can often buy just the knobs. A popular, easy upgrade for trucks from 1995-2000 is to use the larger, more modern-looking knobs from a Chevy Express van, which are a direct fit.
Are there any recalls for this part?
No, there are no specific recalls from the NHTSA for the HVAC blower control switch on the 1992-2000 GMC C3500.

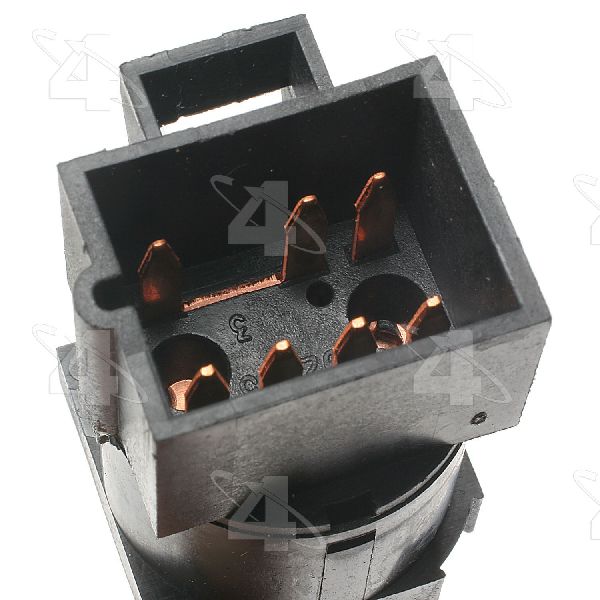

Technical Specifications
OEM Part Numbers: 16192099 16054620
Fits 1992-2000 GMC C3500 models with manual HVAC controls. This is the 4 or 5-position rotary switch that controls fan speed, not the mode selector (vent/floor/defrost).
