Lexus SC400 (1992-2000) Throttle Position Sensor: A Deep Dive
Solving hesitation, poor shifting, and stalling issues on your V8 Lexus SC400 starts with this critical sensor.
- A failing TPS on an SC400 most often causes hesitation, erratic shifting, and idle problems.
- Proper adjustment of the new sensor with a multimeter is critical for correct function; simply bolting it on is not enough.
- For this vehicle, many owners recommend using an OEM or a premium aftermarket brand like Beck Arnley or Standard Ignition to ensure reliability.
- Verify if your car has traction control (TRAC), as it may have a secondary sensor on the throttle body.
Is Your Lexus SC400 Showing Signs of a Bad Throttle Position Sensor?
A failing throttle position sensor on the 1992-2000 SC400 can cause a range of frustrating problems. Because the TPS influences both the engine and transmission, symptoms can sometimes be confusing. Owners frequently report a specific set of issues that point toward a faulty TPS.
Common Failure Symptoms:
- Hesitation and Bucking: The most common complaint is a noticeable hesitation, jerking, or bucking when you accelerate gently. This is often most obvious when cruising at a steady speed, like 40 MPH, and then trying to speed up slightly.
- Erratic Shifting: Your automatic transmission may shift harshly, delay its shifts, or seem to hunt for the right gear. This is because the transmission control unit relies heavily on the TPS signal to know when to shift.

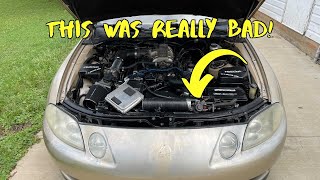

- Poor Idle and Stalling: The engine might idle too high (around 1000-1100 RPM in Park) or drop too low and stall at stop signs. An unstable idle that bounces up and down is also a classic sign. 🎬 Watch this video to see a rough idle fix in action.
- Check Engine and TRAC Lights: A bad TPS will often trigger the Check Engine Light and may also illuminate the TRAC warning light. Common diagnostic trouble codes include P0120, P0121, P0122, P0123, and P0124.
A Critical Note on SC400 Models with Traction Control (TRAC)
Be aware that early SC400 models equipped with traction control (TRAC) may have a secondary sensor on the throttle body. It is essential to correctly identify which sensor has failed. The primary TPS is the one responsible for the main engine and transmission signals.
Choosing the Right Aftermarket TPS: Brand Tiers
When replacing the TPS on your SC400, you have a choice between original Lexus parts and aftermarket options. While many experienced owners prefer the guaranteed quality of an OEM part, a high-quality aftermarket sensor can be a reliable, cost-effective alternative, provided it is installed and adjusted correctly.
Here's a breakdown of the available brands:
- Tier 1 (Premium Aftermarket): Standard Ignition (SMP) and Beck Arnley are generally considered reputable brands. Beck Arnley, in particular, is known for sometimes repackaging the original OEM part in their own box, offering OEM quality at a lower price. Standard Ignition is a long-established brand known for quality control.
- Tier 2 (Mid-Grade): Walker Products is an established aftermarket manufacturer that offers a balance of price and quality. These parts are expected to meet OE specifications and can be a good choice for a daily-driven vehicle.
- Tier 3 (Value): Brands like Global Parts and Replacement are typically the most affordable. While they can get your car back on the road, they may not have the same long-term durability or precise calibration as higher-tier options. For a sensitive part like the TPS on an SC400, a Tier 1 or OEM part is often the safer investment to avoid future headaches.
Pro Tip: Adjustment is More Important Than the Brand

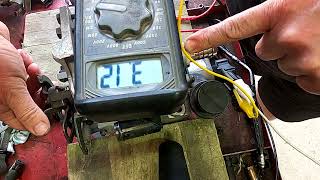

The single most critical part of this job is the adjustment. A new TPS cannot just be bolted on; it must be rotated to the correct position so the ECU gets the right signal at idle and throughout the throttle range. An expensive OEM sensor will perform poorly if installed incorrectly, and a quality aftermarket sensor can work perfectly if adjusted with a multimeter and feeler gauges to factory specs. 🎬 See how to properly set and adjust your 1uz TPS. If you are not comfortable with this process, have a professional mechanic perform the installation.
Cost to Replace an SC400 Throttle Position Sensor
| Item | Estimated Cost |
|---|---|
| New OEM Part | $90 - $170 |
| New Aftermarket Part | $29 - $573 (with quality options from $50-$150) |
| Shop Labor | $85 - $125 |
| Total Professional Replacement | $211 - $336 (depending on parts used) 🎬 Watch a breakdown of TPS failure symptoms and replacement costs. |
Frequently Asked Questions
Can I drive my SC400 with a bad TPS?
It is not recommended for long. While the car may be drivable, symptoms like hesitation, sudden power loss, and engine stalling can be dangerous, especially in traffic. It's best to get the sensor replaced as soon as possible.
Is replacing the TPS a difficult job?
The physical replacement is very easy. It involves removing two screws and a wiring connector. However, the crucial adjustment step requires a multimeter and knowledge of the proper procedure to set the sensor's position correctly. If you are not familiar with using a multimeter, it's best to leave this job to a professional.
Are there any recalls for the SC400 throttle position sensor?
No. There are no active recalls or technical service bulletins (TSBs) from Lexus or the NHTSA specifically for the throttle position sensor on the 1992-2000 SC400.
Why do I need to adjust the new sensor?
The TPS has slotted mounting holes that allow it to be rotated slightly. This rotation fine-tunes the voltage signal it sends to the ECU. Without proper adjustment, the ECU won't know the true position of the throttle, leading to high idle, low idle, stalling, and poor performance even with a brand-new part.
Helpful Videos
Technical Specifications
OEM Part Numbers: 89452-50020 89452-50010 89452-30150 89452-22090
A 4-terminal variable resistor sensor mounted to the throttle body. Requires precise adjustment using a multimeter during installation.
