Nissan Maxima Transmission Filter Kit Guide: 1992-2000
Keep your Maxima's automatic transmission shifting correctly and avoid costly repairs by choosing the right filter kit.
- The filter is inside the transmission pan; replacement is a messy but DIY-friendly job that requires draining the fluid and removing the pan.
- Symptoms of a clogged filter include delayed shifting, slipping, and whining noises.
- Always use Nissan-matic "D" or a compatible DEXRON II/III fluid when servicing the transmission.
- Pay attention to the included gasket; premium kits from brands like Beck Arnley or ATP often provide superior rubber or fiber gaskets for a better seal.
Understanding the Transmission Filter in Your Maxima

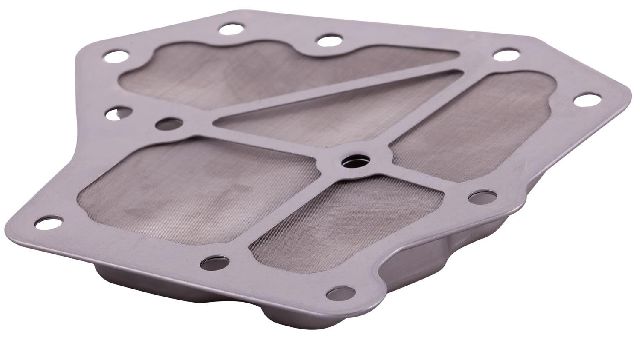

For the 1992-2000 Nissan Maxima, the automatic transmission uses an internal filter, often called a strainer. This means it is located inside the transmission and can only be accessed by removing the bottom transmission oil pan. It is not a simple screw-off part like an engine oil filter. The filter itself is typically a wire mesh or screen designed to catch larger pieces of debris. While durable, it can become clogged over many miles, especially if the transmission fluid has not been changed regularly.
Transmission and Fluid Specifications
| Model Years | Common Automatic Transmissions | Required Fluid Type |
|---|---|---|
| 1992-1994 | RE4F02A, RE4F04A | Nissan-matic "D" or DEXRON II/III compatible |
| 1995-2000 | RE4F04V, RE4F04A | Nissan-matic "D" or DEXRON III compatible |
Pro Tip: The 2000 model year was a transition period. While most use the RE4F04 series transmission, it's always best to verify your specific vehicle's requirements. Always use the correct fluid; using the wrong type can cause shifting problems and damage.
Choosing the Right Aftermarket Transmission Filter Kit
When shopping for a new kit, you'll find several brands available. The main differences often come down to the quality of the filter's construction and, most importantly, the material of the pan gasket.
Brand Quality Tiers
- Premium Brands (Wix, Beck Arnley): These brands are well-regarded in the industry. Wix is known for its high-quality filter media and construction. Beck Arnley focuses on meeting or exceeding OE specifications for foreign nameplates, often including premium rubber gaskets that provide a better, longer-lasting seal. These are excellent choices for owners who want the best fit and function.
- Standard/Value Brands (ATP, Premium Guard, Pioneer Cable): These brands offer a great balance of quality and price. ATP is a long-standing company in the transmission parts industry and is particularly noted for its "Third Hand" gaskets 🎬 Watch this highlight of ATP's specialized transmission filter kits., which have clever tabs to hold bolts in place, making installation easier. Premium Guard and Pioneer Cable provide reliable, cost-effective options that get the job done for daily driving and routine maintenance.
Gasket Material Matters
Pay close attention to the gasket included in the kit. Higher-quality kits often use durable rubber or fiber-composite gaskets. Cheaper kits may come with basic cork gaskets, which are more prone to cracking and leaking over time if not installed perfectly. For a leak-free repair, a quality gasket is worth the small extra cost.
Known Issues, Recalls, and Service Bulletins
Searches for official recalls and Technical Service Bulletins (TSBs) for the 1992-2000 Nissan Maxima did not show any specific issues directly related to the transmission filter itself. However, TSBs and owner forums do mention transmission problems like slipping or harsh shifting where a fluid and filter change is a recommended diagnostic or repair step. For example, a TSB for the 1993 Maxima noted issues with automatic transmission slipping. These symptoms can sometimes be caused by old, dirty fluid and a clogged filter restricting flow.
Frequently Asked Questions (FAQ)
How often should I change my Maxima's transmission filter?
A good rule of thumb is to replace the transmission filter every 30,000 to 60,000 miles, or whenever you perform a transmission pan drop to change the fluid. If you do a lot of city driving or towing, consider the lower end of that range.
Can I just change the transmission fluid without the filter?
While you can perform a simple drain-and-fill of the fluid, it is highly recommended to change the filter at the same time. Dropping the pan allows you to clean out sediment from the bottom of the pan and replace the filter, which is critical for the transmission's long-term health.
What are the signs of a clogged transmission filter?
Common signs include delayed or jerky shifting, whining or humming noises from the transmission, slipping between gears, and fluid that looks dark or smells burnt.
Does the new pan gasket need sealant?
Most modern rubber or composite gaskets are designed to be installed dry and do not require sealant. In fact, using sealant can sometimes cause the gasket to slip out of place and create a leak. ATP's "Third Hand" gaskets are specifically designed for easy, sealant-free installation.
Helpful Videos
Technical Specifications
OEM Part Numbers: 31726-1XE0A
Fits RE4F02A and RE4F04A/V automatic transmissions. Kit includes an internal screen-type filter and a transmission pan gasket.
