Your Guide to the 1992-2001 Honda Civic Vehicle Speed Sensor
Fix your bouncing speedometer and get your cruise control working again with the right VSS.
- A bad VSS is the most likely cause for a dead or erratic speedometer on a 92-01 Civic.
- This is a simple DIY repair for most owners, typically requiring only a 10mm socket and ratchet with an extension.
- Ensure you buy the correct sensor for your transmission type (manual vs. automatic) as they are not interchangeable.
- If a new sensor doesn't fix the problem, check the wiring connector and consider having the instrument cluster's solder joints inspected.
Is Your Civic's Speedometer Acting Up?
If you own a 1992-2001 Honda Civic, you have a car known for its reliability. However, like any vehicle, parts can wear out. A common issue for this generation is a faulty Vehicle Speed Sensor (VSS). When this sensor fails, it can cause a few noticeable problems, but the good news is that it's a straightforward and affordable fix for most DIY mechanics.
Symptoms of a Failing VSS
A bad VSS will give you clear signs that something is wrong. The most common symptom is a speedometer that stops working, reads zero, or jumps around erratically. You may also notice that your cruise control no longer functions. For cars with an automatic transmission, you might experience rough or hesitant shifting as the transmission doesn't get the correct speed information. In some cases, a failing VSS can trigger the Check Engine Light, with codes like P0500 or P0501.
A Note on Diagnosis

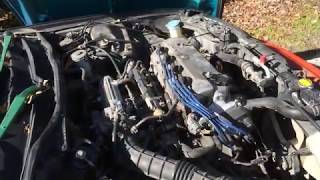

While the VSS is a common culprit, sometimes these symptoms can be caused by bad solder joints on the back of the speedometer gauge itself. If a new sensor doesn't fix the issue, the problem might be inside your instrument cluster. 🎬 Watch this guide on fixing speedometer gauge issues. Also, check the wiring and connector plug for the VSS, as they can become corroded or damaged over time.
Choosing the Right Aftermarket VSS
When it comes to electronic sensors for older Hondas, quality can vary. While an OEM sensor from Honda is a reliable choice, a quality aftermarket part can offer great value. Aftermarket brands often fall into different quality tiers.
- Higher-Tier Brands (e.g., Delphi, Beck Arnley, Standard Ignition, Denso): These brands have a strong reputation for producing parts that meet or exceed original equipment specifications. They often use better materials and more rigorous testing, making them a solid choice for reliability. Many owners and mechanics trust these brands for a fit and function that lasts.
- Mid-Tier & Economy Brands (e.g., Dorman, Walker Products, various store brands): These brands provide a budget-friendly option. They can be a good choice if cost is your main concern. However, with some economy electronic parts, there can be a higher chance of premature failure. While many have no issues, some owners report that these sensors don't last as long as higher-tier or OEM parts.
Pro Tip: Manual vs. Automatic

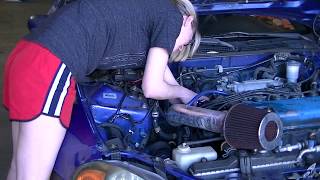

The VSS for manual and automatic transmissions in this Civic generation are often physically different and not interchangeable. Always confirm the part is correct for your specific transmission type 🎬 See a step-by-step VSS replacement for manual transmissions. before purchasing. Some sensors come as a complete assembly, while others are just the electronic top portion.
Cost of a New Vehicle Speed Sensor
The cost to replace a VSS on a 1992-2001 Civic is very reasonable, especially if you do the work yourself. Here is a general breakdown of what to expect.
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket | $18 - $157 |
| Shop Labor | $77 - $113 |
| Total Professional Replacement | $173 - $247 |
Frequently Asked Questions
How hard is it to replace the VSS myself?
For most people with basic tools, this is an easy job. The VSS is located on top of the transmission and is usually held on by one or two 10mm bolts. Access can be a little tight, but it typically takes less than an hour. You'll need a ratchet with an extension.
🎬 Watch a quick walkthrough of the sensor replacement process.What is the little pin that comes with the new sensor?
That is the drive link. It's a small pin that connects the sensor to the gear inside the transmission. It's important to make sure the old one comes out and the new one is installed correctly. Be careful not to drop it into the transmission!
Are there any recalls for the VSS on my Civic?
No, there are no specific recalls for the Vehicle Speed Sensor on the 1992-2001 Honda Civic. Searches of the NHTSA database show recalls for later model Civics related to wheel speed sensors or other issues, but not the transmission-mounted VSS for this generation.
Can I drive with a bad VSS?
Yes, you can usually still drive the car. However, your speedometer and odometer will not work, which can be a safety and legal issue. If you have an automatic transmission, you may also experience poor shifting, which is not good for the transmission long-term. It's best to get it fixed as soon as possible.
Helpful Videos
Technical Specifications
OEM Part Numbers: 78410-SR3-003 78410-SV4-003 78410-S04-901
Located on the top of the transmission housing, typically secured with one or two 10mm bolts. Features a 3-pin electrical connector. Includes a small, removable drive link pin that engages with the transmission gear.
