Honda Prelude Engine Oil Pressure Switch Guide (1992-2001)
Everything you need to know about the oil pressure switch for your 4th or 5th Gen Prelude.
- A flickering oil light with a normal oil level is the top symptom of a bad switch.
- Replacement is easy on Base models but much harder on SH models due to the ATTS unit.
- Oil leaks from the switch are common; look for oil residue near the oil filter.
- Using a quality aftermarket brand like Beck Arnley or Standard Ignition is a reliable, cost-effective choice.
Symptoms of a Failing Oil Pressure Switch
A bad oil pressure switch can be tricky because its symptoms can look like a real, catastrophic engine problem. If your oil light comes on, the first and most important step is to pull over safely and check your engine oil level. If the oil level is normal, the switch itself is the likely culprit.
Warning Light On? Check Oil Level First!
An illuminated oil pressure light is a critical warning. Never assume it's just a bad sensor. Always stop the vehicle and check the oil level on the dipstick immediately. Driving with low oil pressure can destroy an engine in minutes.
- Oil Pressure Light On or Flickering: The most common symptom is the red oil pressure light on your dashboard staying on or flickering, especially at idle or during turns.
- Oil Leaks: The switch itself can fail and leak oil. You might see oil residue on the sensor or drips on the ground below the engine, often near the oil filter. A leaking switch can also cause a burning oil smell if it drips onto the hot exhaust.
- Check Engine Light: In some cases, a faulty switch can trigger the Check Engine Light. The computer may store trouble codes like P0520, P0521, P0522, or P0523.

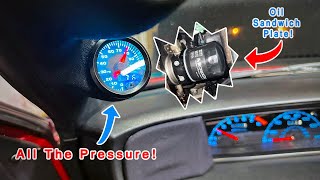

- Inaccurate Gauge Reading: If your Prelude has a factory or aftermarket oil pressure gauge, a bad sensor can cause it to read zero, max out, or fluctuate wildly. 🎬 Watch a guide on installing an aftermarket oil pressure gauge.
Choosing the Right Aftermarket Part
For a simple but critical part like an oil pressure switch, quality is important. While a genuine Honda part is always a safe bet, high-quality aftermarket brands offer reliable performance at a lower cost. Given the low price of this part, it's wise to avoid the absolute cheapest options and stick with reputable names.
Aftermarket Brand Tiers for Honda Prelude
| Tier | Brands | Notes |
|---|---|---|
| Premium Aftermarket | Beck Arnley, Standard Ignition (SMP), Hella | These brands are well-regarded for quality and reliability. Beck Arnley is known for sourcing parts that match OE form, fit, and function. Standard Motor Products has a reputation for durable components. They are a solid choice for peace of mind. |
| Standard Aftermarket | Walker Products, Facet | Walker Products engineers parts to meet or exceed OE specs and is a trusted name in engine sensors. These brands offer a good balance of price and quality for most owners. |
| Economy | Global Parts, Rostra Powertrain | While the most affordable, these brands may have less of a proven track record for this specific application. For a critical sensor, spending a few extra dollars on a premium or standard brand is often a worthwhile investment. |
Installation Notes
Replacing the oil pressure switch is a straightforward job on most Prelude models, but can be more difficult on SH models.
- Location: The switch is typically located on the back of the engine block, near or just below the oil filter.
- Base Models: On Base model Preludes, the switch is usually easy to access from underneath the car.
- SH Models: On the Prelude SH (1997-2001), the ATTS (Active Torque Transfer System) unit makes access much more difficult. The oil filter housing must be removed to reach the switch, which is located above it. This makes the job more involved. 🎬 Watch this walkthrough for the difficult SH model installation.
- Tools: You will need a deep socket to remove and install the switch. The size can vary between OEM and aftermarket parts, so it's good to have a set.
- Pro-Tip: You don't need to drain all the engine oil to replace the switch, but have a drain pan ready as a small amount of oil will spill out when the old switch is removed. Apply thread sealant or Teflon tape to the new switch's threads to prevent leaks if it doesn't come with sealant pre-applied.
Frequently Asked Questions (FAQ)
Is there a recall for the oil pressure switch on the 1992-2001 Prelude?
No, there are no specific recalls issued by the NHTSA for the engine oil pressure switch on any 1992-2001 Honda Prelude model.
What is the difference between an oil pressure switch and an oil pressure sensor?
A switch is a simple on/off device that triggers the warning light at a preset low pressure. A sensor (or sending unit) provides a variable reading that can drive a gauge on the dashboard. For the factory dashboard light on the Prelude, the part is a switch.
My oil light flickers when I turn or stop, but my oil level is full. Is it the switch?
This is a classic symptom of a failing oil pressure switch. The internal components wear out and can cause intermittent contact, especially when oil sloshes in the engine. However, it's always best to confirm with a mechanical oil pressure test to be 100% sure it's not a more serious internal engine problem.

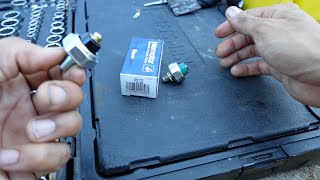

🎬 See how to test an oil pressure switch yourself.How difficult is it to replace the oil pressure switch on a Prelude?
For Base models, it is a relatively easy DIY job, requiring basic hand tools and access from under the car. For SH models, the difficulty is moderate due to the ATTS unit obstructing access, requiring more parts to be removed.
Do I need to drain my oil to change the pressure switch?
No, a full oil drain is not necessary. The switch is located above the oil level in the sump. However, some oil will be in the engine's passages, so expect a small amount to leak out when you remove the old switch. Place a rag or drain pan underneath to catch it.
Helpful Videos
Technical Specifications

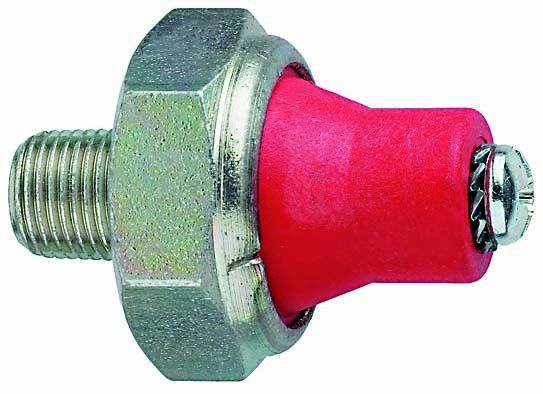

OEM Part Numbers: 37240-PT0-014 37240-P13-013 37240-PT0-023 37240-P2F-A01
Single-pin connector, thread sealant may be required.
