1992-2002 Ford E-150 Econoline HVAC Blower Motor Switch Replacement Guide
Restore control over your van's fan speeds by diagnosing and replacing the HVAC blower motor switch.
- If the fan only works on high, the problem is likely the blower motor resistor, not the switch.
- A burning smell or melted connector is a common and serious issue; always inspect the wiring when replacing the switch.
- A failing blower motor can draw excess current and damage both the resistor and the switch.
- Aftermarket switches are a cost-effective option, but some owners report better fit and longevity with the OEM Motorcraft part.
Is Your Blower Motor Switch Failing?
In the 1992-2002 Ford E-150 Econoline, the HVAC system is simple and durable, but the components that handle high electrical current can wear out. The blower motor switch is a common failure point. Because all the power for the blower motor runs directly through this switch, it can get hot and fail over time.
Symptoms of a Bad Blower Motor Switch
- No Fan on Any Speed: If the fan is completely dead on all settings, the switch itself might have failed internally. However, you should also check the main HVAC fuse first.
- Intermittent Operation: The fan cuts in and out as you drive or when you jiggle the switch. This often points to worn internal contacts.
- Burning Smell or Melting: A distinct burning plastic smell from the dash is a serious warning sign. The switch and its electrical connector are known to overheat and melt on these vans. If you see visible melting or charring on the switch or the plug behind it, both need to be replaced. 🎬 Watch this video to see what a melted connector looks like.
- Switch Feels Loose or Broken: If the knob feels mushy, won't click into each speed setting, or is physically damaged, the switch needs to be replaced.
A Very Common Misdiagnosis: "My Fan Only Works on High!"
If your fan works perfectly on the highest speed but not on any of the lower settings, the problem is almost certainly the blower motor resistor, not the switch. The high setting sends power directly to the fan, bypassing the resistor. 🎬 See how to diagnose a fan that only works on high. The resistor is located under the hood, usually behind the battery, and is a common part to fail from corrosion or overheating.
Choosing the Right Aftermarket Switch
For a simple electrical part like a blower switch, you have options. The original part is made by Motorcraft (Ford's parts brand). The main aftermarket brand available is Standard Ignition (also known as SMP).
- OEM (Motorcraft): The original switch lasted for many years, but it is still prone to the same heat-related failure. Some experienced owners and mechanics insist on using only the OEM part, believing it handles the electrical load better over the long term.
- Aftermarket (Standard Ignition): Standard Ignition is a reputable brand that produces a wide range of automotive electronics. Their switches are designed to be direct replacements. However, some user reviews mention issues like a loose-fitting knob or intermittent operation right out of the box. Given the high electrical current this switch handles, some aftermarket versions may not last as long as the original.
| Part Type | Estimated Price Range |
|---|---|
| New Aftermarket (Standard Ignition) | $37.82 - $65.43 |
| New OEM (Motorcraft) | $50 - $90 |
| Shop Labor for Installation | $75 - $150 |
Frequently Asked Questions (FAQ)
Can I replace the blower motor switch myself?

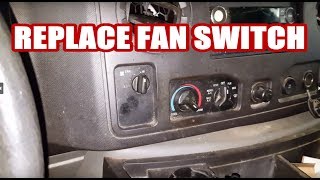

Yes, this is a DIY-friendly job for someone with basic tools. It involves carefully prying off the dash trim around the controls, removing a couple of screws holding the switch 🎬 Watch this step-by-step guide to replacing your blower motor switch., and unplugging the electrical connector. The main challenge is that access can be tight. If you need to replace a melted connector, the job becomes more involved, requiring you to cut and splice wires.
Why did my switch melt?
The switch melted because of high electrical resistance, which creates heat. This can be caused by the switch itself wearing out, or more commonly, by a failing blower motor that is drawing too much electricity through the circuit. If you have had multiple switches or resistors fail, your blower motor is likely the root cause and should be replaced.
Is the blower motor switch the same as the blower motor resistor?
No. The switch is the control knob on your dash. The resistor is a separate electrical part located in the engine bay that controls the lower fan speeds. They often fail together or have similar symptoms, so it's important to diagnose the problem correctly.
Why does the aftermarket switch feel cheap or the knob feel loose?
Some owners have reported that the shaft on aftermarket switches can be slightly smaller than the OEM part, causing the original knob to fit loosely. While it may still function, it's a common complaint about non-OEM parts for this application.
Helpful Videos
Technical Specifications
OEM Part Numbers: F2UZ-19A885-A F7UZ-19A885-AA YH588 YH1658
4-position rotary switch with a 4-blade terminal connector. Designed for 12V systems.
