Ford E-150 Econoline Voltage Regulator Guide: 1992-2002
Keep your 1992-2002 Ford E-150 Econoline's electrical system stable by understanding and replacing a faulty voltage regulator.
- The voltage regulator is on the back of the alternator, so the alternator must be removed for replacement.
- Symptoms include flickering lights, a dead battery, and the charge warning light on the dash.
- Use a multimeter to check battery voltage with the engine running; it should be 13.5-14.7V.
- Driving with a bad regulator can leave you stranded or damage other expensive electronics.
Is Your E-150's Electrical System Acting Up?
If you're experiencing strange electrical problems with your 1992-2002 Ford E-150 Econoline, a failing voltage regulator could be the culprit. On these vans, the voltage regulator is located on the back of the alternator. This means the alternator must be removed from the engine to replace the regulator. While many shops will recommend replacing the entire alternator, replacing just the regulator can be a cost-effective repair if the rest of the alternator is still in good shape.
Common Symptoms of a Bad Voltage Regulator
A bad regulator can cause undercharging or overcharging. Watch for these signs:
- Flickering or Dimming Lights: Your headlights and dashboard lights may flicker, dim, or get unusually bright. This is often most noticeable at idle or when you rev the engine.
- Battery Problems: Your battery may die frequently and require jump-starts because it's not getting a proper charge. In an overcharging situation, you might notice a rotten egg smell near the battery or see the battery case swelling.
- Charging System Warning Light: The battery light on your dashboard may light up and stay on, or flicker intermittently.
- Poor Engine Performance: The engine's computer needs stable voltage to run properly. A bad regulator can cause stalling, a rough idle, or hesitation.
Pro Tip: Test it Yourself
You can check your charging system with a simple multimeter. Set it to DC volts and touch the probes to your battery terminals while the van is running. A healthy system should read between 13.5 and 14.7 volts. A reading below 13 volts or above 15 volts points to a problem with the regulator or alternator.

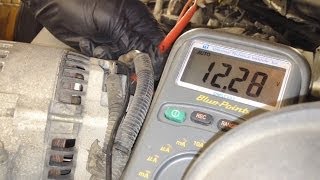

🎬 Watch: How to test your Ford's charging system with a multimeter.Choosing the Right Aftermarket Regulator
For a vehicle like the 1992-2002 E-150, a quality aftermarket regulator is a smart choice. While OEM Motorcraft parts were the original standard, a reputable aftermarket brand provides a reliable repair without the high dealer cost.
Standard Ignition (Standard Motor Products): This is a well-regarded aftermarket brand that offers direct-fit voltage regulators for the E-150. Their products often feature improvements over the original design, such as epoxy-sealed circuit boards to protect against vibration and moisture, which is a major cause of failure. Choosing a known brand like Standard Ignition over a generic, no-name part is highly recommended to avoid parts that are defective right out of the box.
Cost to Replace a Voltage Regulator
| Item | Estimated Cost |
|---|---|
| Shop Labor | $199 - $292 |
| Aftermarket Part (Standard Ignition) | $103.25 - $172.68 |
| Total Estimated Cost (At a Shop) | $302 - $465 |
Costs are estimates and can vary based on your location and the specific repair shop.
Frequently Asked Questions
Can I just replace the regulator instead of the whole alternator?
Yes. If you have confirmed the alternator's mechanical parts (bearings, windings) are good, replacing only the regulator is a great way to save money. However, since the labor to remove the alternator is the same, many owners choose to replace the entire unit for peace of mind, especially on a high-mileage vehicle.
Is this a difficult job to do myself?

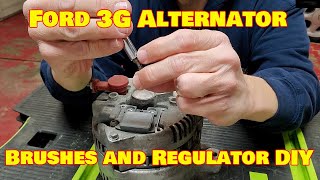

If you are comfortable removing the alternator, the rest of the job is straightforward. It involves taking off the serpentine belt, unbolting the alternator, and then removing a few screws on the back of the alternator to swap the regulator. 🎬 Watch: Step-by-step guide to replacing the brushes and regulator. It requires basic hand tools and is considered a moderately difficult DIY task.
🎬 See this walkthrough for tips on removing your Econoline's alternator.Are there any recalls for the voltage regulator on my E-150?
No, searches of the National Highway Traffic Safety Administration (NHTSA) database show no specific recalls for the voltage regulator or alternator on the 1992-2002 Ford E-150 Econoline. Failures are typically due to age and wear.
What happens if I keep driving with a bad voltage regulator?
It is not recommended. If it's undercharging, your battery will eventually die, leaving you stranded. If it's overcharging, it can permanently damage the battery, engine computer, and other expensive electronics.
Helpful Videos
Technical Specifications
OEM Part Numbers: E9DZ-10316-A F0DU-10316-AA F0DZ-10316-A
Internally mounted on alternator, 12 Volt, A-Circuit
