Pontiac Firebird Window Motor Guide for 1992-2002 Models
If your Firebird's window only moves a few inches at a time, you're in the right place.
- The most common failure symptom is the window moving a few inches and stopping, caused by a bad internal thermal resistor.
- Replacement requires drilling out the original rivets; aftermarket parts use bolts for easier installation.
- The part and procedure are identical for the 1993-2002 Chevrolet Camaro.
- Brand quality between Dorman and Cardone is considered similar by many owners; choosing a part with a lifetime warranty is recommended.
Is Your Firebird's Window Motor Failing?
A failing window motor in a 1992-2002 Pontiac Firebird has very distinct symptoms. Because this generation shares parts with the Chevrolet Camaro, this is a well-known issue for owners of both cars. The most common sign of failure isn't that the window stops working completely, but that it works intermittently.
- Window moves a few inches, then stops: This is the classic sign of failure for these specific cars. You press the button, the window moves a little, and then stops. If you wait a minute, you can get it to move a little more. This is caused by a faulty thermal resistor inside the motor, a component that wears out over time.
- Slow or sluggish operation: If the window moves much slower than it used to, the motor is likely getting weak and losing power.
- Grinding or clicking noises: Loud grinding or clicking sounds from inside the door when you use the switch point to a problem with the motor or the regulator gears it connects to.
- Window won't move at all: If you press the switch and hear a faint click but the window doesn't move, the motor has likely failed completely. If you hear nothing, the problem could also be the switch or a fuse. 🎬 Watch: The Car Wizard shows how to pinpoint the exact problem
Choosing the Right Aftermarket Motor: Dorman vs. Cardone
For the 4th Gen Firebird, the original GM window motors are known to fail. Because of this, the aftermarket has become the go-to source for replacements. The two most common brands you will find are Dorman and Cardone. Forum discussions among Firebird and Camaro owners show mixed experiences with both.
Some owners report that aftermarket motors, regardless of brand, can be noisy or fail prematurely. The general consensus is that many of these parts may come from the same factories with different branding.
What to Expect for Replacement Costs
The cost to replace a window motor can vary. The part itself is affordable, but labor can add up if you have a mechanic do the work. The prices below are estimates for a single window motor replacement.
| Item | Estimated Cost |
|---|---|
| New Aftermarket Window Motor (e.g., Dorman, Cardone) | $53.64 - $82.83 |
| Shop Labor | $100 - $150 |
| Total Professional Replacement | $153 - $233 |
Installation Notes for DIYers
Many owners choose to drill three access holes through the inner door sheet metal to reach the motor's rivets without removing the entire window regulator assembly, 🎬 Watch: How to replace the motor and regulator without cutting metal which is a more difficult job. This method is widely documented in owner forums and videos. 🎬 See this step-by-step guide for replacing the driver side motor The replacement is considered a feasible DIY project for those comfortable with using a drill and basic hand tools. The entire job can take between one and two hours.
Frequently Asked Questions
Do I have to replace the whole window regulator?
Not usually. For the 1992-2002 Firebird, the motor can be replaced separately from the regulator assembly. This saves money, but it does require drilling out the rivets that attach the motor to the regulator.
Is the window motor the same for the driver and passenger side?
The motors themselves are often identical and can be used on either side. However, you should always confirm the part fitment for your specific vehicle year and side before purchasing.
Will a window motor from a Chevy Camaro work on my Firebird?
Yes. The 1993-2002 Chevrolet Camaro and Pontiac Firebird are built on the same platform and share many parts, including the window motors and regulators. The replacement procedure is identical for both cars.
Why does my new aftermarket motor sound so loud?
Some owners have reported that certain aftermarket motors are noisier than the original. This can be due to variations in manufacturing quality. It's a good idea to test the motor by connecting it to the wiring harness before you fully install it. If it sounds excessively loud or grinds right out of the box, you may have received a defective unit.
Helpful Videos

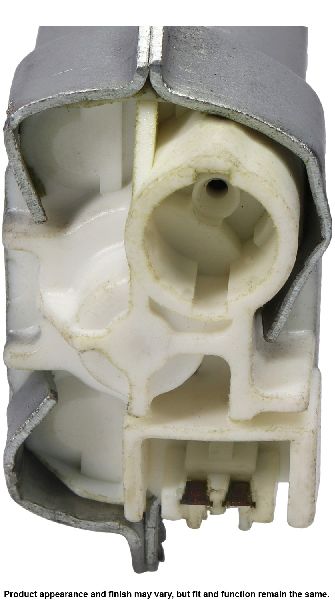

Technical Specifications
OEM Part Numbers: 10305685 (Regulator Assembly) 10305686 (Regulator Assembly) 12497972 (Motor)
The motor is a 12-volt DC unit. Aftermarket replacements for the 1992-2002 models typically feature a 9-tooth gear. The motor is usually sold as a separate component from the regulator assembly.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
